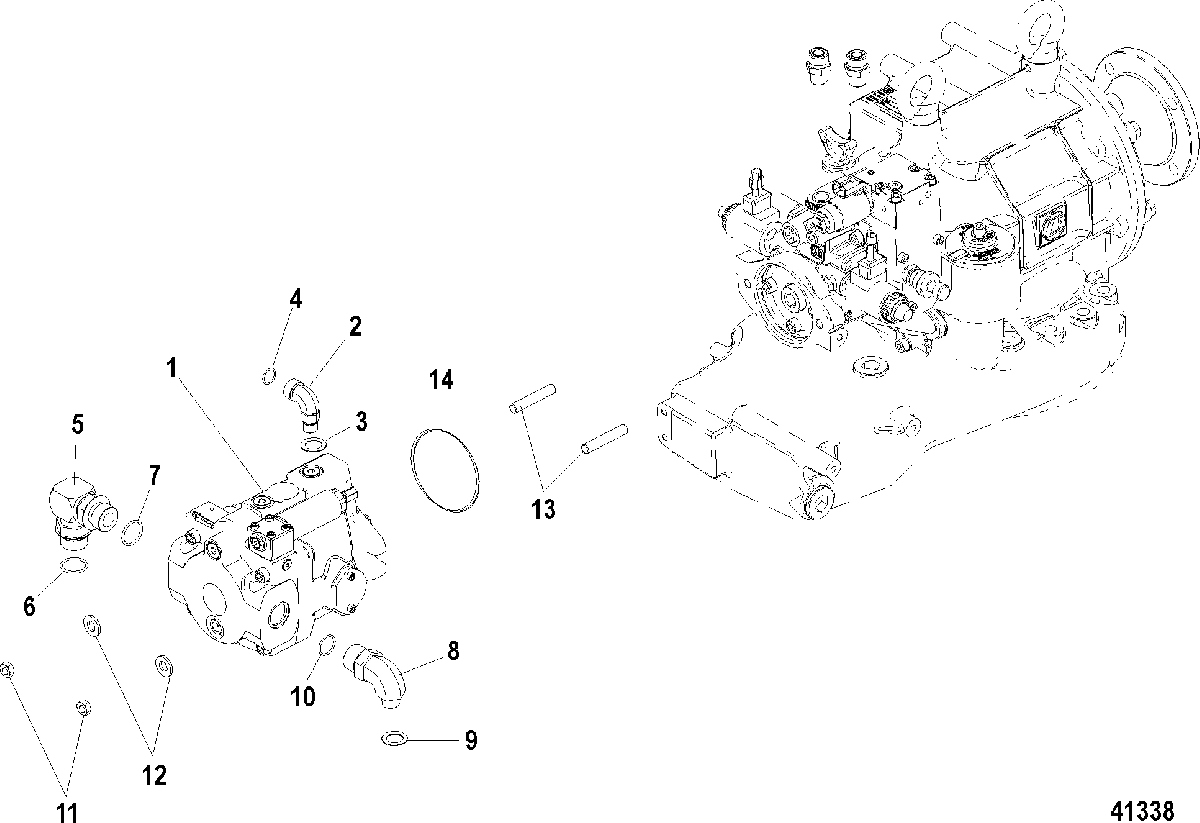

Hydraulic Pump, Primary для Mercruiser - ZEUS 3000 0M968983 THRU 0M968990
-
№АртикулНазвание
-
18M0124037 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
222-8M0039094 FITTING, 90 Degree (.365 SAE x .50 ORFS)FITTING, 90 Degree (.365 SAE x .50 ORFS)
-
325-8M0047401 O-RING, (.468 X .078)O-RING, (.468 X .078)
-
425-45253 O-RINGO-RING
-
522-8M0040169 FITTING, 90 Degree (.75 SAE x .75 SAEMA)FITTING, 90 Degree (.75 SAE x .75 SAEMA)
-
625-8M0047403 O-RINGO-RING
-
725-8M0047403 O-RINGO-RING
-
822-8M0039062 FITTING, 90 Degree (.75 SAE x .375 ORFS)FITTING, 90 Degree (.75 SAE x .375 ORFS)
-
925-8M0047399 O-RINGO-RING
-
1025-8M0047403 O-RINGO-RING
-
1111-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
1212-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
1316-820640 STUD, (M10 x 55)STUD, (M10 x 55)
-
1426-879312020 O-RINGO-RING
