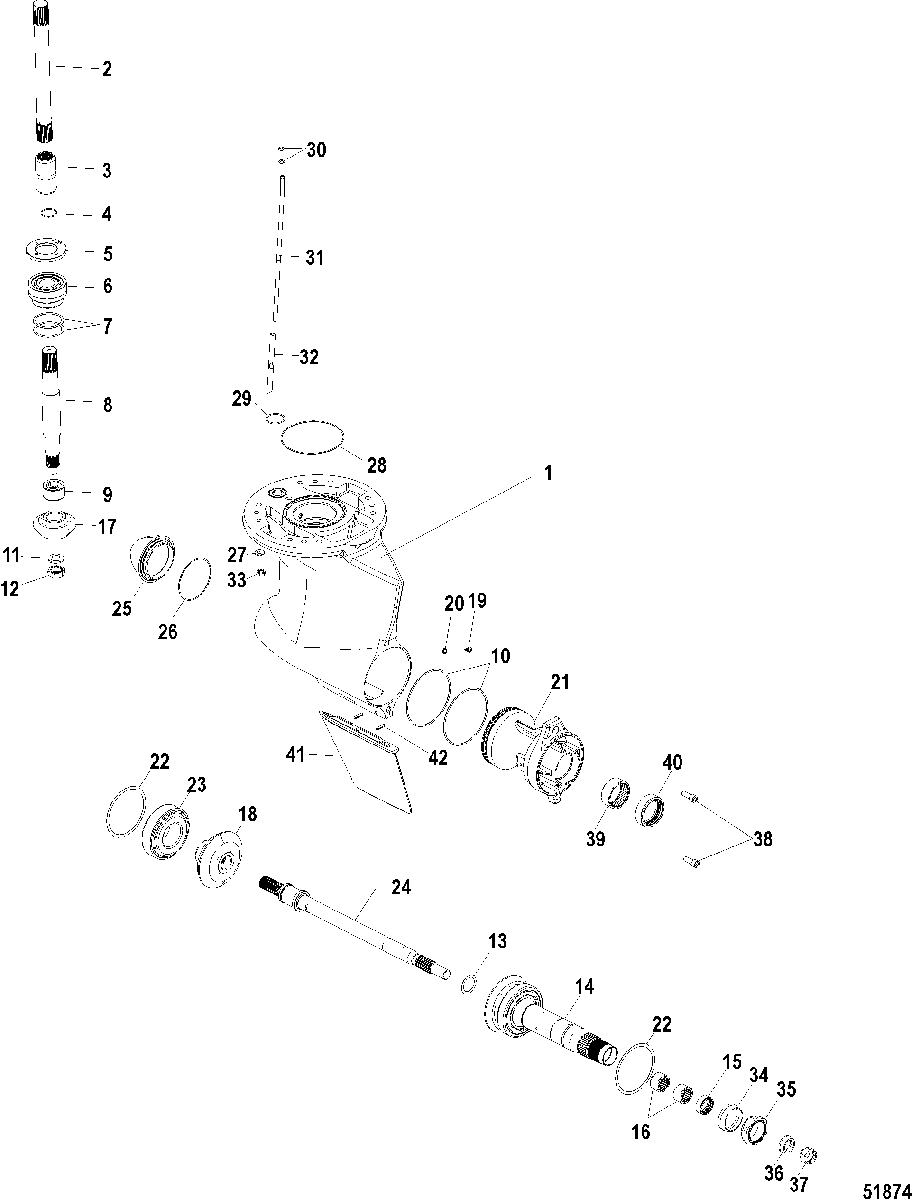

Gear Housing для Mercruiser - ZEUS 3000 0M968994 THRU 0M968994
-
№АртикулНазвание
-
-879345T44 GEARCASE ASSEMBLY, 1.478 Ratio, Use With POD Ratios 1.50, 1.79, 2.06GEARCASE ASSEMBLY, 1.478 Ratio, Use With POD Ratios 1.50, 1.79, 2.06
-
-879345T43 GEARCASE ASSEMBLY, 1.611 Ratio, Use With POD Ratios 1.34, 1.95, 2.24GEARCASE ASSEMBLY, 1.611 Ratio, Use With POD Ratios 1.34, 1.95, 2.24
-
1879345T45 GEARCASE, BasicGEARCASE, Basic
-
245-879345T48 DRIVESHAFTDRIVESHAFT
-
38M8021038 COUPLERCOUPLER
-
453-38476 RING, RetainingRING, Retaining
-
511-879148T06 NUTNUT
-
631-8M0048520 BEARING ASSEMBLY, With SpacerBEARING ASSEMBLY, With Spacer
-
715-36178A02 SHIM SETSHIM SET
-
8879345T47 DRIVESHAFTDRIVESHAFT
-
931-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1025-87159 O RINGO RING
-
1123-8M0007721 WASHERWASHER
-
1211-8M0022754 NUT, (1.00-14)NUT, (1.00-14)
-
1315-879148A06 SHIM SETSHIM SET
-
14879150A69 REPAIR KIT, PROP SHAFT/GEAR SET , 23/34 Tooth CountREPAIR KIT, PROP SHAFT/GEAR SET , 23/34 Tooth Count
-
14879312A07 REPAIR KIT, PROP SHAFT/GEAR SET , 18/29 Tooth Count, ZorroREPAIR KIT, PROP SHAFT/GEAR SET , 18/29 Tooth Count, Zorro
-
1526-8M0033407 SEALSEAL
-
1631-57410 BEARING, RollerBEARING, Roller
-
17NSS NOT SOLD SEPARATE, Pinion GearNOT SOLD SEPARATE, Pinion Gear
-
18NSS NOT SOLD SEPARATE, Forward Gear, (Component of 879150A69)NOT SOLD SEPARATE, Forward Gear, (Component of 879150A69)
-
1922-8M0058389 SCREW KIT, DrainSCREW KIT, Drain
-
2026-830749 SEALSEAL
-
218M0058357 CARRIER, BearingCARRIER, Bearing
-
2215-899815A01 SHIM SETSHIM SET
-
2331-879148T03 BEARING ASSEMBLYBEARING ASSEMBLY
-
2444-8M0054065 SHAFTSHAFT
-
25879345T46 NOSENOSE
-
2625-8M0007618 O RING, (107.62 x 2.62)O RING, (107.62 x 2.62)
-
2712-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
2825-8M0007558 O RING, (152.07 x 2.62)O RING, (152.07 x 2.62)
-
2925-891935 O-RINGO-RING
-
3025-8M0024744 O RING, (.296 x .139), TopO RING, (.296 x .139), Top
-
308M0079852 SPLIT RING, BottomSPLIT RING, Bottom
-
3132-8M0024745 TUBETUBE
-
328M0025395 GUIDEGUIDE
-
3311-896895 NUT, (M12)NUT, (M12)
-
348M0119410 PROP NUT KITPROP NUT KIT
-
3511-8M0105210 PROP NUTPROP NUT
-
36805101T THRUST HUBTHRUST HUB
-
3711-862907 PROP NUTPROP NUT
-
3810-8M0010988 SCREW, (M12 x 30)SCREW, (M12 x 30)
-
3931-805079T BEARING, RollerBEARING, Roller
-
4026-861694 SEAL, OilSEAL, Oil
-
418M0072969 SKEG KITSKEG KIT
-
4217-8M0072584 PINPIN
