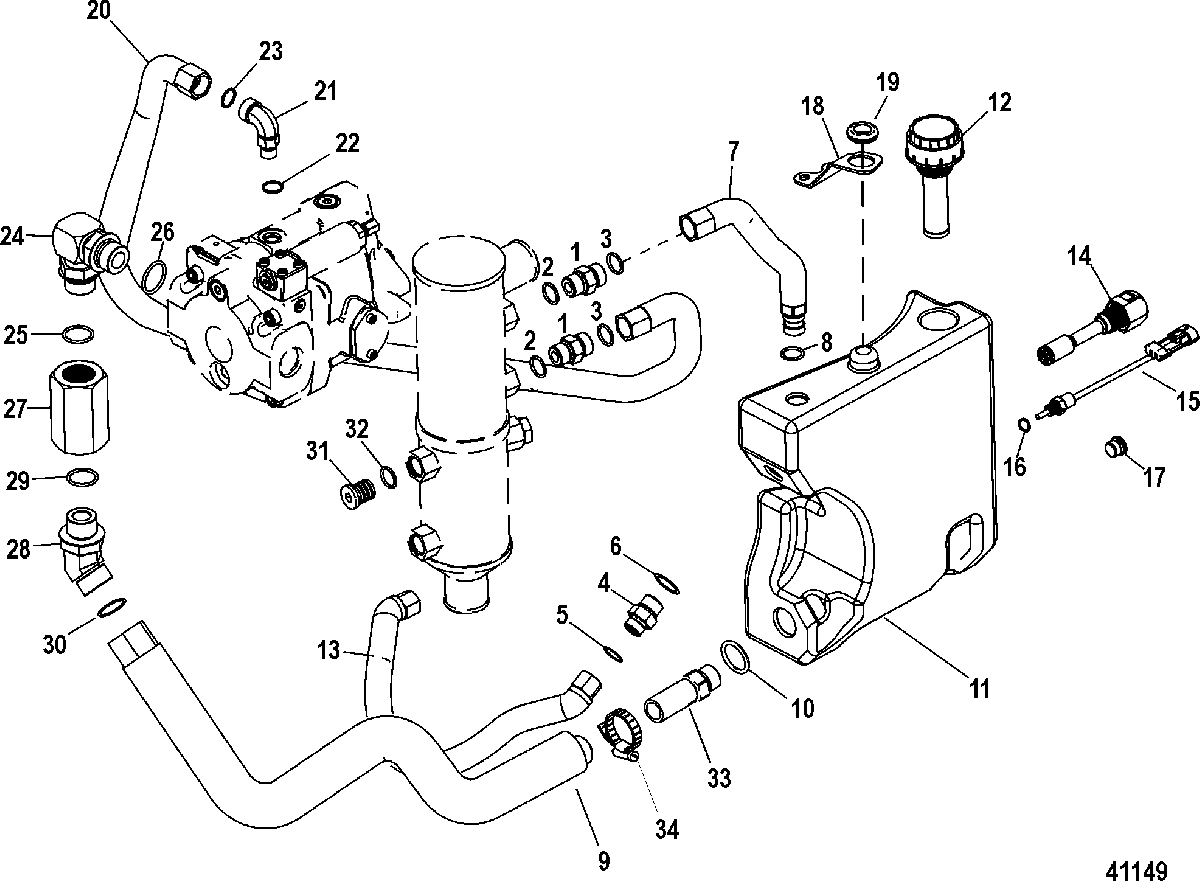

Hydraulic System, Starboard для Mercruiser - ZEUS 3000 0M968995 THRU 0M968996
-
№АртикулНазвание
-
122-8M0021781 FITTINGFITTING
-
225-8M0047402 O-RINGO-RING
-
325-45253 O-RINGO-RING
-
422-8M0033230 FITTING, (Stainless Steel)FITTING, (Stainless Steel)
-
525-45253 O-RINGO-RING
-
625-8M0047402 O-RINGO-RING
-
732-8M0049753 HOSEHOSE
-
825-8M0047402 O-RINGO-RING
-
932-8M0040287 HOSEHOSE
-
1025-8M0047403 O-RINGO-RING
-
118M0123978 RESERVOIR TANK
Design IRESERVOIR TANK
Design I -
128M0123978 RESERVOIR CAP
Design IRESERVOIR CAP
Design I -
118M0123978 RESERVOIR ASSEMBLY
Design IIRESERVOIR ASSEMBLY
Design II -
1219-8M6001367 RESERVOIR CAP
Design IIRESERVOIR CAP
Design II -
NS35-8M0037964 STRAINER
Design IISTRAINER
Design II -
1332-8M0046071 HOSEHOSE
-
148M0026573 SWITCHSWITCH
-
158M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1719-8M0022463 PLUGPLUG
-
188M0007661 BRACKETBRACKET
-
1925-8M0007663 GROMMETGROMMET
-
2032-8M0049763 HOSEHOSE
-
2122-8M0039094 FITTING, 90 Degree (.365 SAE x .50 ORFS)FITTING, 90 Degree (.365 SAE x .50 ORFS)
-
2225-8M0047401 O-RING, (.468 X .078)O-RING, (.468 X .078)
-
2325-45253 O-RINGO-RING
-
2422-8M0040169 FITTING, 90 Degree (.75 SAE x .75 SAEMA)FITTING, 90 Degree (.75 SAE x .75 SAEMA)
-
2525-8M0047403 O-RINGO-RING
-
2625-8M0047403 O-RINGO-RING
-
278M0040139 MAGNETIC FILTERMAGNETIC FILTER
-
2822-8M0040191 FITTING, 45 Degree (.75 SAE X .75 ORFSM)FITTING, 45 Degree (.75 SAE X .75 ORFSM)
-
2925-8M0047403 O-RINGO-RING
-
3025-8M0047400 O-RINGO-RING
-
3119-8M0025635 PLUGPLUG
-
3225-8M0047402 O-RINGO-RING
-
3332-8M0040286 HOSEHOSE
-
3454-815504616 CLAMP, Worm GearCLAMP, Worm Gear
