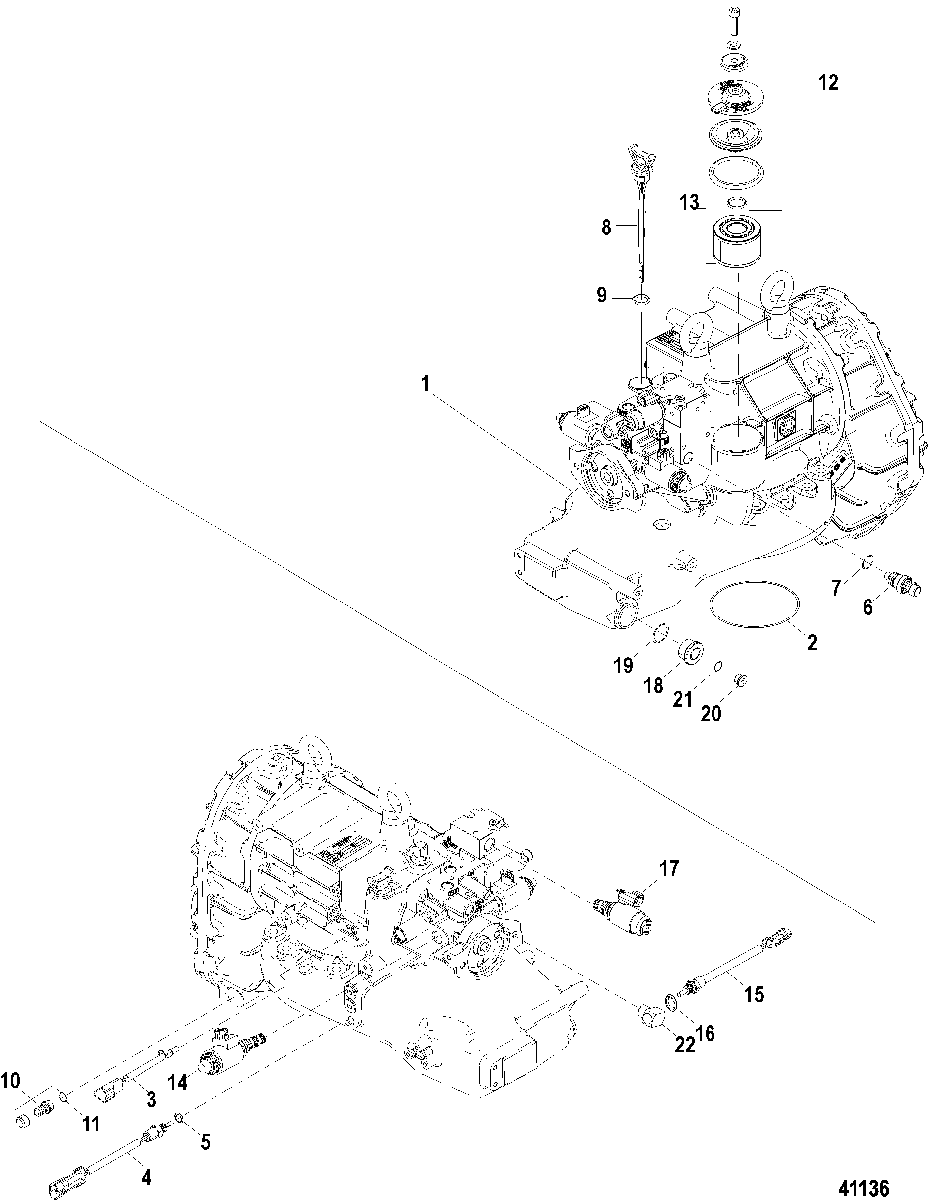

Transmissions для Mercruiser - ZEUS 3000 0M969003 & Up
-
№АртикулНазвание
-
1879148T68 TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)
355/380/425/480TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)
355/380/425/480 -
1879148T69 TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)
355/380/425/480TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)
355/380/425/480 -
1879345T74 TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)
600TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)
600 -
1879345T75 TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)
670/715TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)
670/715 -
225-8M0007664 O RING, (6.234 x .139)O RING, (6.234 x .139)
-
38M0007635 SENSORSENSOR
-
48M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
525-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
68M0007568 TRANSDUCER, 500 PSITRANSDUCER, 500 PSI
-
725-8M0024307 O-RING, (8.92 x 1.83)O-RING, (8.92 x 1.83)
-
8879312001 DIPSTICK
(With Drop Box)DIPSTICK
(With Drop Box) -
8879312002 DIPSTICK
(Without Drop Box)DIPSTICK
(Without Drop Box) -
925-879194240 O-RING, (18.66 x 3.53)O-RING, (18.66 x 3.53)
-
1022-879345T22 DRAIN PLUG ASSEMBLYDRAIN PLUG ASSEMBLY
-
1125-879150094 SEALSEAL
-
12879194242 COVER ASSEMBLY, FilterCOVER ASSEMBLY, Filter
-
1335-879194241 FILTER KIT, OilFILTER KIT, Oil
-
14879194243 VALVE, Solenoid - On/Off - 12VVALVE, Solenoid - On/Off - 12V
-
158M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
17879194245 VALVE, Proportional - 12VVALVE, Proportional - 12V
-
1822-879345T21 DRAIN PLUG ASSEMBLYDRAIN PLUG ASSEMBLY
-
1926-879194238 SEALSEAL
-
20NSS NOT SOLD SEPARATE, PLUGNOT SOLD SEPARATE, PLUG
-
2125-879150094 SEALSEAL
-
2222-8M0031393 FITTING, (90 Degree)FITTING, (90 Degree)
