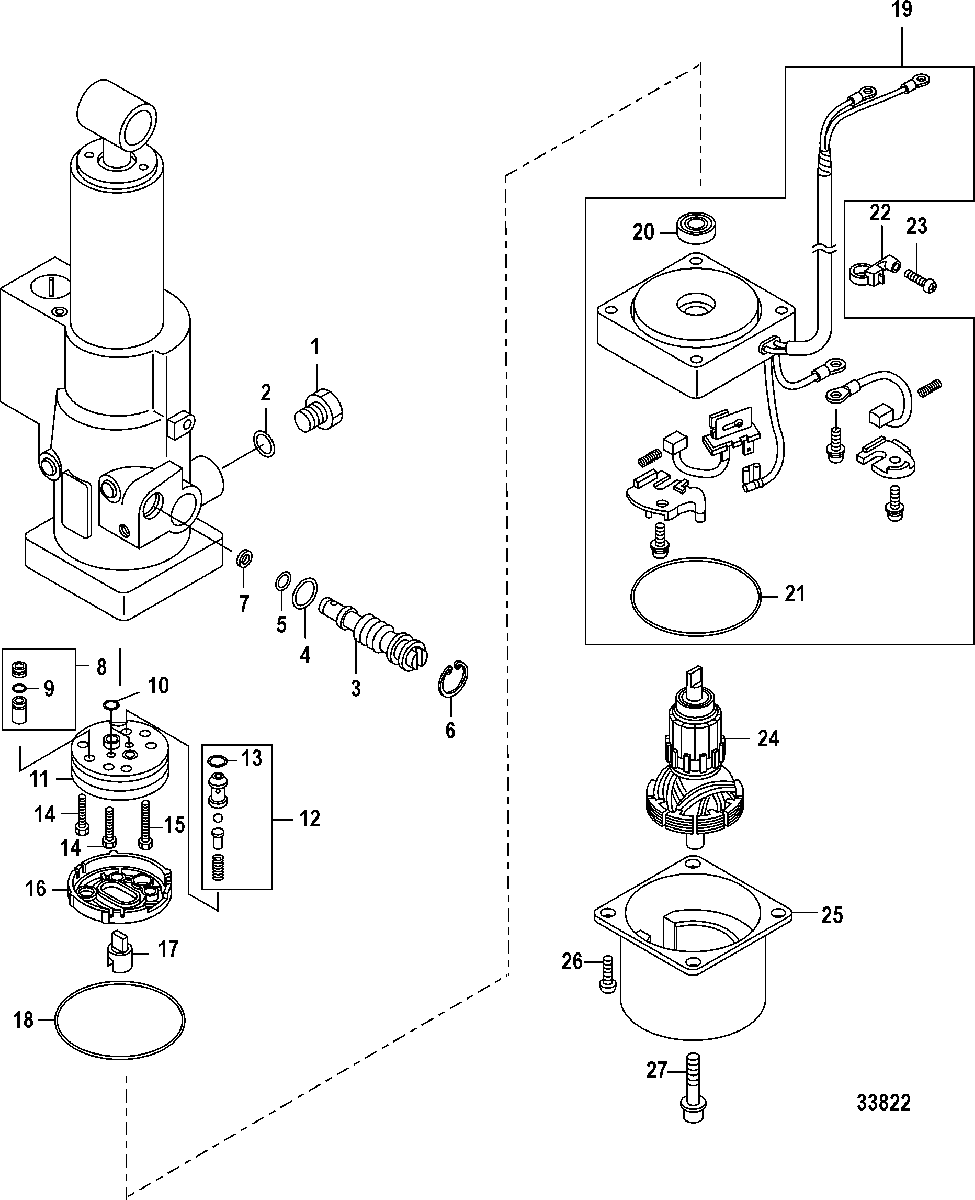

Power Tilt для Mercury - 10 Carb(2CYL)(4-STROKE) 0R575531 & Up
-
№АртикулНазвание
-
-851873T05 POWER TILT ASSEMBLYPOWER TILT ASSEMBLY
-
1896299A01 CAP ASSEMBLYCAP ASSEMBLY
-
225-1613110 O-RINGO-RING
-
3813442A05 MANUAL VALVE ASSEMBLYMANUAL VALVE ASSEMBLY
-
425-812641003 O-RINGO-RING
-
525-16131013 O-RINGO-RING
-
653-804027002 C RINGC RING
-
726-898101245 SEALSEAL
-
8896301A01 VALVE ASSEMBLYVALVE ASSEMBLY
-
925-803513009 O-RINGO-RING
-
1025-1613110 O-RINGO-RING
-
11827674002 PUMPPUMP
-
12827672A06 RELIEF VALVE ASSEMBLYRELIEF VALVE ASSEMBLY
-
1325-16131013 O-RINGO-RING
-
1410-8518664 BOLTBOLT
-
1510-8518663 BOLTBOLT
-
1635-851876 FILTERFILTER
-
17851877001 COUPLINGCOUPLING
-
1825-16131011 O-RINGO-RING
-
19896302T02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2026-822891001 SEAL, OilSEAL, Oil
-
2125-16131012 O-RINGO-RING
-
2269356 TIE STRAP, (8.18 Inches)TIE STRAP, (8.18 Inches)
-
2310-895143004 SCREWSCREW
-
24891753T02 ARMATURE ASSEMBLYARMATURE ASSEMBLY
-
25896303T HOUSINGHOUSING
-
2610-879194330 SCREWSCREW
-
2710-851866010 BOLTBOLT
