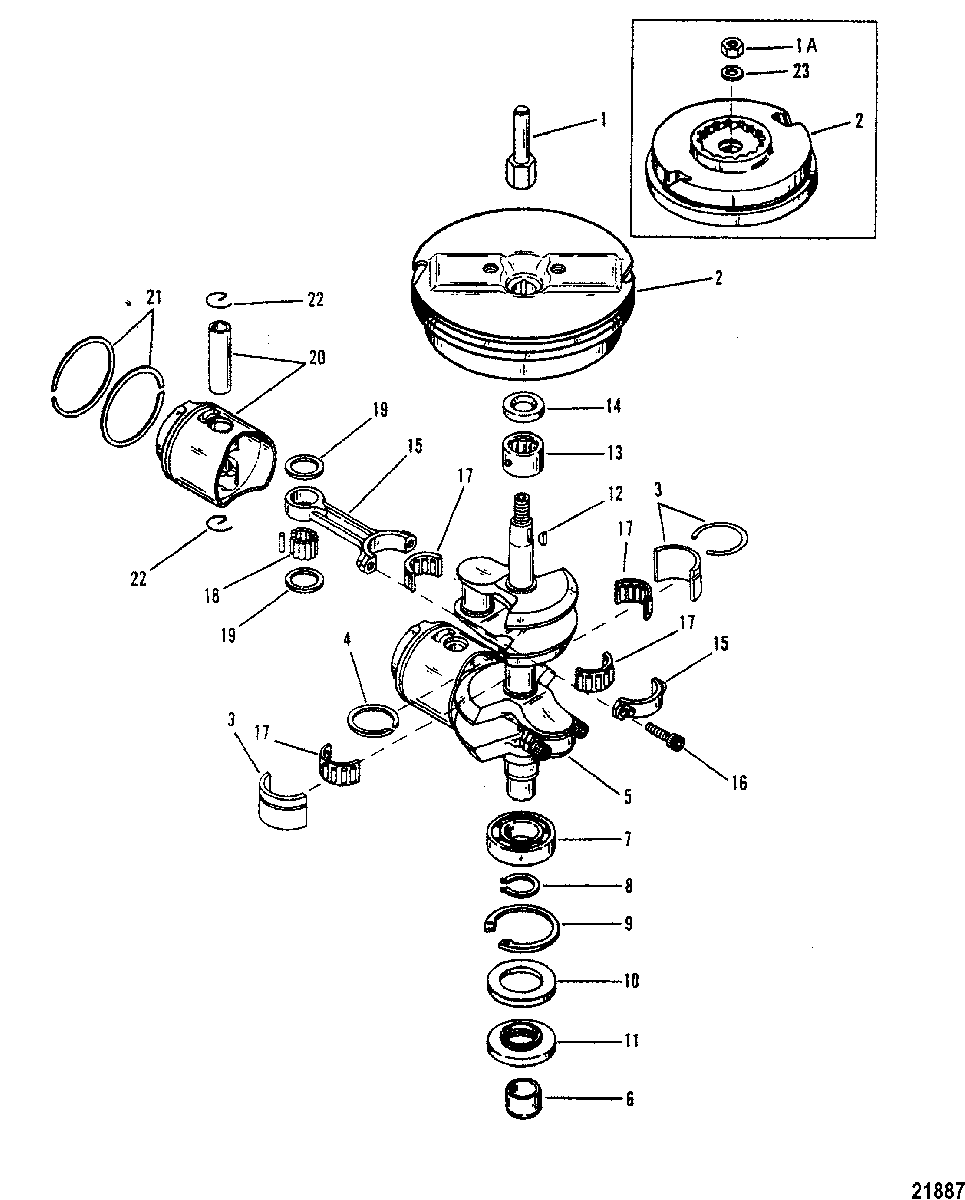

Crankshaft, Pistons and Flywheel для Mercury - 10 SEA PRO 0D038000 THRU 0D279999
-
№АртикулНазвание
-
142691 SHAFT, FLYWHEELSHAFT, FLYWHEEL
-
1A11-818591 NUT, (M14)NUT, (M14)
-
2260-859231T6 FLYWHEEL ASSEMBLY
(Use wtih Stub Shaft)FLYWHEEL ASSEMBLY
(Use wtih Stub Shaft) -
2260-859231T19 FLYWHEEL ASSEMBLY
(Use with Nut)FLYWHEEL ASSEMBLY
(Use with Nut) -
317794A1 BEARINGBEARING
-
426-818901 SEAL, MAIN BEARINGSEAL, MAIN BEARING
-
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SLEEVESLEEVE
-
730-41341 BEARING, Ball, CRANKSHAFT-LOWERBEARING, Ball, CRANKSHAFT-LOWER
-
853-20940 RING, Snap, BALL BEARING (SMALL)(OLD DESIGN)RING, Snap, BALL BEARING (SMALL)(OLD DESIGN)
-
953-42132 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
1012-13031 WASHER, LOWERWASHER, LOWER
-
1126-125661 SEAL, Oil - Lower, CRANKSHAFTSEAL, Oil - Lower, CRANKSHAFT
-
1228-20094 KEY, Woodruff, FLYWHEEL DRIVEKEY, Woodruff, FLYWHEEL DRIVE
-
1331-878158 BEARING, Roller, CRANKSHAFT-UPPERBEARING, Roller, CRANKSHAFT-UPPER
-
1426-125671 SEAL, Oil - Upper, CRANKSHAFTSEAL, Oil - Upper, CRANKSHAFT
-
15637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-823460 SCREW, (M5 x 16), CONNECTING RODSCREW, (M5 x 16), CONNECTING ROD
-
1731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1829-42186 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
-
1912-8M0012297 BEARING, ThrustBEARING, Thrust
-
20784-9747T2 PISTON ASSEMBLY (STANDARD)PISTON ASSEMBLY (STANDARD)
-
20784-9747A4 PISTON ASSEMBLY (.015 O.S.)PISTON ASSEMBLY (.015 O.S.)
-
2139-18212A4 RING SET, Piston (STANDARD)RING SET, Piston (STANDARD)
-
2139-18212A1 RING SET, Piston (.015 O.S.)RING SET, Piston (.015 O.S.)
-
2240-42202 LOCK RINGLOCK RING
-
2312-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
-
-19072T88 POWERHEAD ASSEMBLY, CompletePOWERHEAD ASSEMBLY, Complete
