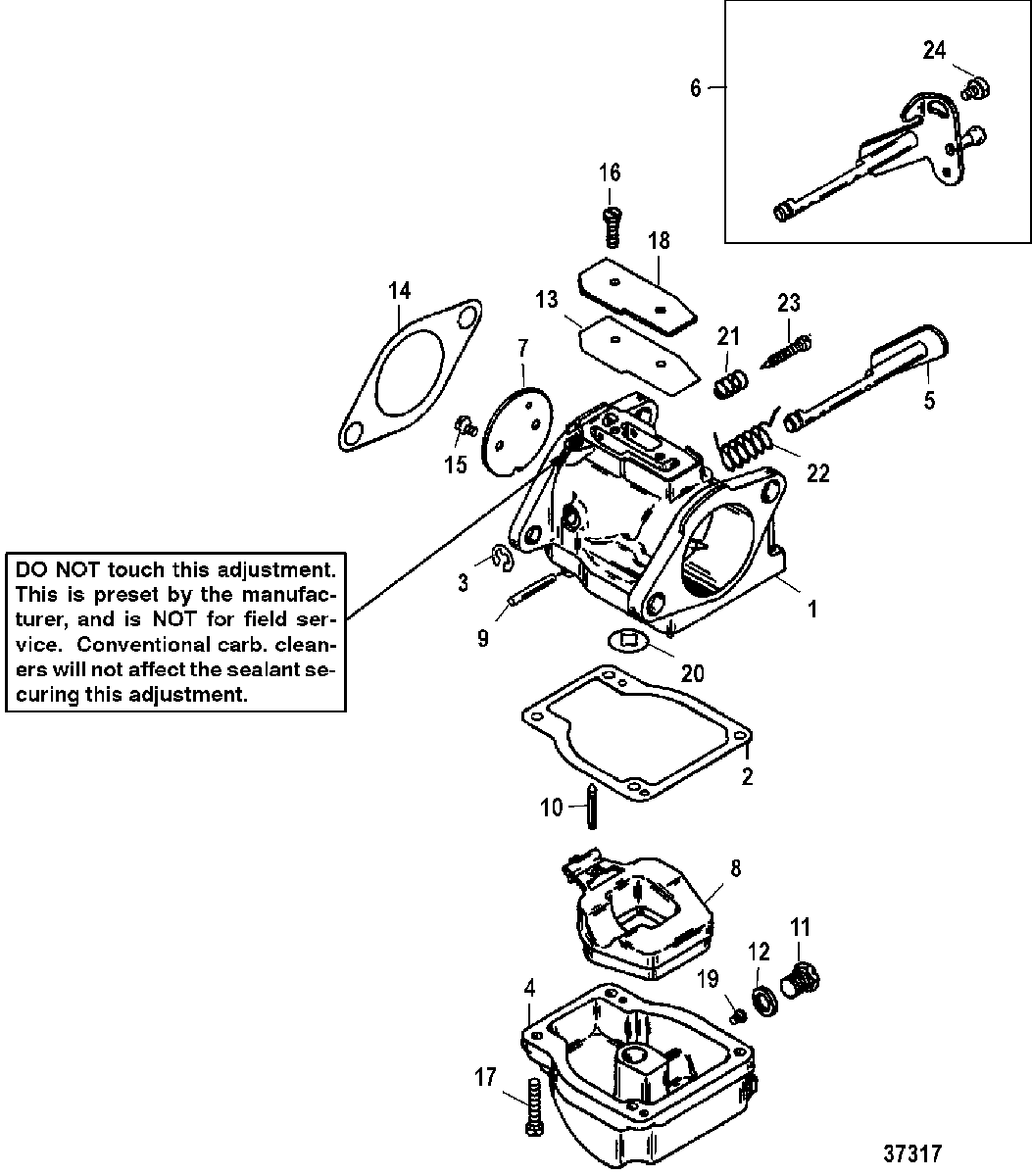

CARBURETOR, WME-32/32A/33/34/40/40A для Mercury - 100 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
13301-823799T39 CARBURETOR
100 - WME-32/32ACARBURETOR
100 - WME-32/32A -
13301-823799T40 CARBURETOR
100 - WME-32/32ACARBURETOR
100 - WME-32/32A -
13301-823799T41 CARBURETOR
100 - WME-32/32ACARBURETOR
100 - WME-32/32A -
13301-823799T42 CARBURETOR
100 - WME-32/32ACARBURETOR
100 - WME-32/32A -
13301-884586T07 CARBURETOR
115 - WME-33CARBURETOR
115 - WME-33 -
13301-884586T08 CARBURETOR
115 - WME-33CARBURETOR
115 - WME-33 -
13301-884586T09 CARBURETOR
115 - WME-33CARBURETOR
115 - WME-33 -
13301-884586T10 CARBURETOR
115 - WME-33CARBURETOR
115 - WME-33 -
13301-884586T07 CARBURETOR
115 - WME-40/40ACARBURETOR
115 - WME-40/40A -
13301-884586T08 CARBURETOR
115 - WME-40/40ACARBURETOR
115 - WME-40/40A -
13301-884586T09 CARBURETOR
115 - WME-40/40ACARBURETOR
115 - WME-40/40A -
13301-884586T10 CARBURETOR
115 - WME-40/40ACARBURETOR
115 - WME-40/40A -
13301-884587T07 CARBURETOR
125 - WME-34CARBURETOR
125 - WME-34 -
13301-884587T08 CARBURETOR
125 - WME-34CARBURETOR
125 - WME-34 -
13301-884587T09 CARBURETOR
125 - WME-34CARBURETOR
125 - WME-34 -
13301-884587T10 CARBURETOR
125 - WME-34CARBURETOR
125 - WME-34 -
2NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
41395-811693 BOWL, FuelBOWL, Fuel
-
41395-811696 BOWL, Fuel
(WME-40-TOP)BOWL, Fuel
(WME-40-TOP) -
51395-823632 SHAFT, Throttle
(WME-1/3/4)SHAFT, Throttle
(WME-1/3/4) -
61395-8236321 SHAFT, Throttle
(WME-2)SHAFT, Throttle
(WME-2) -
71395-97241 VALVE, ThrottleVALVE, Throttle
-
81395-9594 FLOATFLOAT
-
9F10064 SHAFTSHAFT
-
1010-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
111395-811694 PLUG KITPLUG KIT
-
121395-802731 SEAL (CONSISTS OF 4 SEALS)SEAL (CONSISTS OF 4 SEALS)
-
13NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
1427-151724 GASKETGASKET
-
1510-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
161395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
171395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
181395-811221 COVER PLATECOVER PLATE
-
191399-5317 JET, (.046)
(WME-32-1/32A-1)JET, (.046)
(WME-32-1/32A-1) -
191395-6246 JET, (.048)
(WME-32-2)JET, (.048)
(WME-32-2) -
191395-6028 JET, (.050)
(WME-33-1/32A-2)JET, (.050)
(WME-33-1/32A-2) -
191395-6359 JET, (.052)
(WME-32-3/4)JET, (.052)
(WME-32-3/4) -
191399-5225 JET, Main (.054)
(WME-32A-3)JET, Main (.054)
(WME-32A-3) -
191399-5213 JET, Main (.056)
(WME-33-2/3/32A-4)JET, Main (.056)
(WME-33-2/3/32A-4) -
191399-4217 JET, Main (.062)
(WME-33-4)JET, Main (.062)
(WME-33-4) -
191399-4215 JET, Main Fuel (.066)
(WME-34-1/40-1/40A-1)JET, Main Fuel (.066)
(WME-34-1/40-1/40A-1) -
191395-6029 JET, (.068)
(WME-34-2/40-2/3)JET, (.068)
(WME-34-2/40-2/3) -
191395-6030 JET, (.070)
(WME-34-3/40-4/40A-2/3)JET, (.070)
(WME-34-3/40-4/40A-2/3) -
191395-6207 JET, (.072)
(WME-34-4/40A-4)JET, (.072)
(WME-34-4/40A-4) -
201395-808738 GASKETGASKET
-
21NSS NOT SOLD SEPARATE, Spring-Idle NeedleNOT SOLD SEPARATE, Spring-Idle Needle
-
22NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
23NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
241395-823634 SCREWSCREW
-
-1395-8112231 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8236354 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-13461A99 GASKET SETGASKET SET
