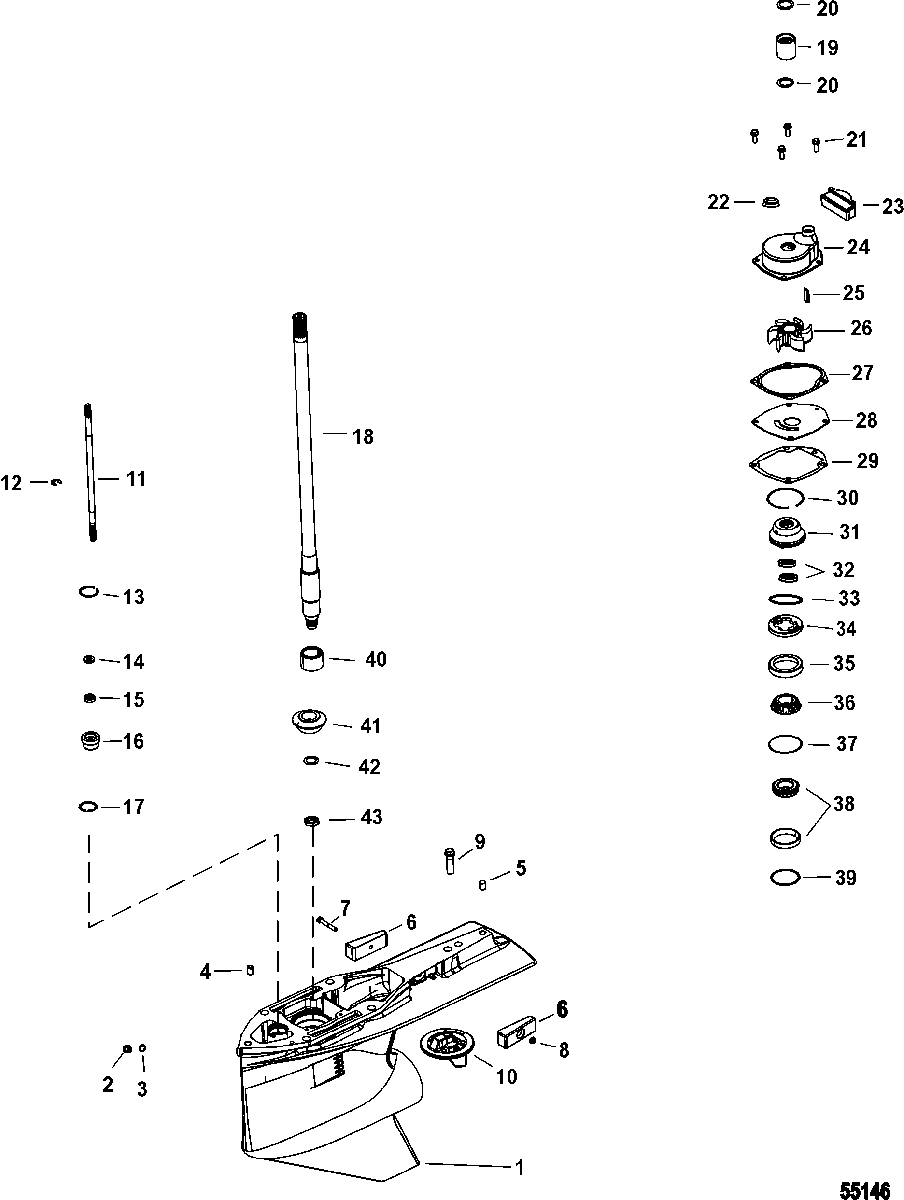

Gear Housing, Driveshaft, 2.07:1 Standard Rotation для Mercury - 100 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
-1600-8M0088072 GEARCASE , Complete LGEARCASE , Complete L
-
-1600-8M0088074 GEARCASE, Complete XLGEARCASE, Complete XL
-
11600-8M0091538 GEARCASE, BasicGEARCASE, Basic
-
11600-8M0099907 GEARCASE HOUSING ASSY, Basic
SeaProGEARCASE HOUSING ASSY, Basic
SeaPro -
210-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
326-830749 SEALSEAL
-
417-8M0084244 PIN, DowelPIN, Dowel
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
697-826134Q ANODEANODE
-
710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
811-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
910-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
108M0091534 TRIM TAB , AnodicTRIM TAB , Anodic
-
118M0069658 SHIFT SHAFT, Lower, LongSHIFT SHAFT, Lower, Long
-
118M0053078 SHIFT SHAFT, X-LongSHIFT SHAFT, X-Long
-
1253-29641 E RINGE RING
-
1353-8M0029306 RING, RetainingRING, Retaining
-
1412-77674 WASHERWASHER
-
1526-8164641 SEAL, OilSEAL, Oil
-
1623-813696A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1725-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
1845-8M0090831 DRIVESHAFT , LongDRIVESHAFT , Long
-
1845-8M0056711 DRIVESHAFT, X-LONGDRIVESHAFT, X-LONG
-
198M0036238 COUPLING, Water PumpCOUPLING, Water Pump
-
2025-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
2110-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2226-8M2014338 SEAL, FaceSEAL, Face
-
238M0010459 FILLER BLOCKFILLER BLOCK
-
248172752 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
2528-8M0032833 KEYKEY
-
2647-43026T2 IMPELLERIMPELLER
-
2727-8172771 GASKETGASKET
-
288172761 FACEPLATEFACEPLATE
-
2927-8M0112903 GASKETGASKET
-
3053-880719 RING, RetainingRING, Retaining
-
318M0057748 OIL SEAL CARRIER ASSYOIL SEAL CARRIER ASSY
-
3226-89238 SEAL, OilSEAL, Oil
-
3325-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
34853651 RETAINERRETAINER
-
3531-33138A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
36NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
3715-8M0063267 SHIM SETSHIM SET
-
3831-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
3915-8M0063268 SHIM SETSHIM SET
-
4031-8M0090828 BEARING , Needle RollerBEARING , Needle Roller
-
41NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
4212-92721 WASHERWASHER
-
4311-8M0071654 NUT, .625-18 HXNUT, .625-18 HX
-
-8M0090442 SKEGSKEG
-
-8M0094529 COMPLETE WATER PUMP REPAIR KITCOMPLETE WATER PUMP REPAIR KIT
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-8M0088080 GEARCASE SEAL KITGEARCASE SEAL KIT
-
-46-8M0061040 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
