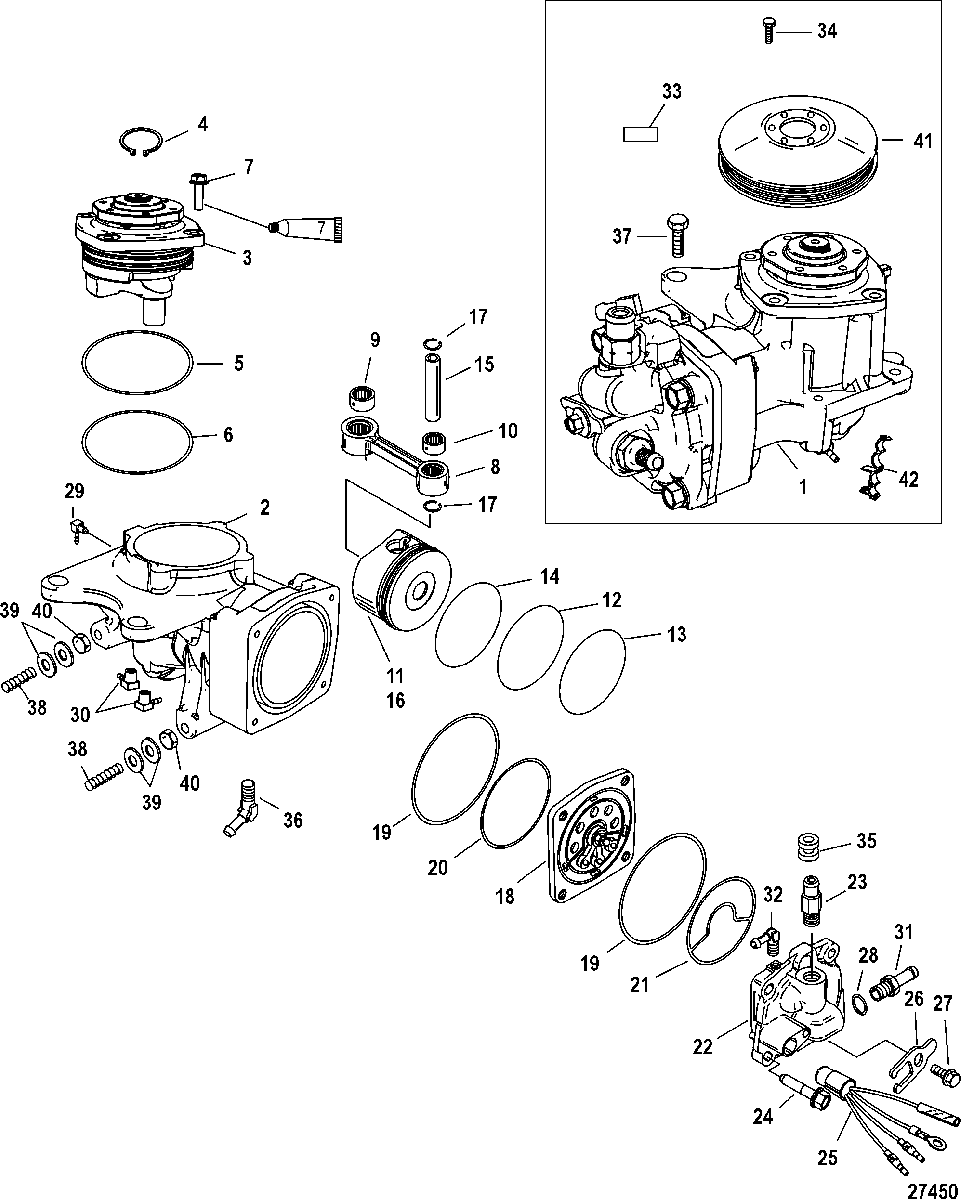

Air Compressor Components, SN 1B884881 and up для Mercury - 110 Jet (2.5L) 1B690542 & Up
-
№АртикулНазвание
-
18M0060053 COMPRESSOR ASSEMBLY, Air
BlackCOMPRESSOR ASSEMBLY, Air
Black -
2NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
31100-8M0060381 END CAP ASSEMBLYEND CAP ASSEMBLY
-
410-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
525-67206001 O-RINGO-RING
-
625-67206001 O-RINGO-RING
-
710-85593920 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
8653-833146T06 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
9NSS NOT SOLD SEPARATE, BearingNOT SOLD SEPARATE, Bearing
-
10NSS NOT SOLD SEPARATE, BearingNOT SOLD SEPARATE, Bearing
-
11NSS NOT SOLD SEPARATE, Piston Assembly - With Rings and PinNOT SOLD SEPARATE, Piston Assembly - With Rings and Pin
-
12NSS NOT SOLD SEPARATE, Oil Scraper RingNOT SOLD SEPARATE, Oil Scraper Ring
-
13NSS NOT SOLD SEPARATE, Top RingNOT SOLD SEPARATE, Top Ring
-
14NSS NOT SOLD SEPARATE, Oil RingNOT SOLD SEPARATE, Oil Ring
-
15NSS NOT SOLD SEPARATE, Wrist PinNOT SOLD SEPARATE, Wrist Pin
-
16NSS NOT SOLD SEPARATE, Piston with Wrist PinNOT SOLD SEPARATE, Piston with Wrist Pin
-
1753-8348101 RING, LockRING, Lock
-
18835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1925-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
2025-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
2126-828225 SEALSEAL
-
228M0073890 HEAD KIT, CompressorHEAD KIT, Compressor
-
2322-8307534 FITTING, (1.62 Inches)FITTING, (1.62 Inches)
-
2322-8M0042974 FITTING, (1.87 Inches)FITTING, (1.87 Inches)
-
2410-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2513536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
26137151 RETAINERRETAINER
-
2710-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
2825-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
2922-151331 FITTINGFITTING
-
3021-428641 FITTING, Check ValveFITTING, Check Valve
-
3122-856744 FITTINGFITTING
-
3222-14868 FITTINGFITTING
-
33NSS NOT SOLD SEPARATE, Decal-Assy. InstructionsNOT SOLD SEPARATE, Decal-Assy. Instructions
-
3410-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
3525-855349002 GROMMETGROMMET
-
3622-851975 FITTING, Elbow - 45 Degree - Brass (.125-27)FITTING, Elbow - 45 Degree - Brass (.125-27)
-
3710-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
3816-858762001 STUD, (.312-18/.312-24 x 4.190)STUD, (.312-18/.312-24 x 4.190)
-
3912-854640 WASHER, SpecialWASHER, Special
-
4011-46356 NUT, (.312-24)NUT, (.312-24)
-
418328233 PULLEYPULLEY
-
4254-8M0024533 CLAMPCLAMP
-
-25-832804A03 O-RING KITO-RING KIT
