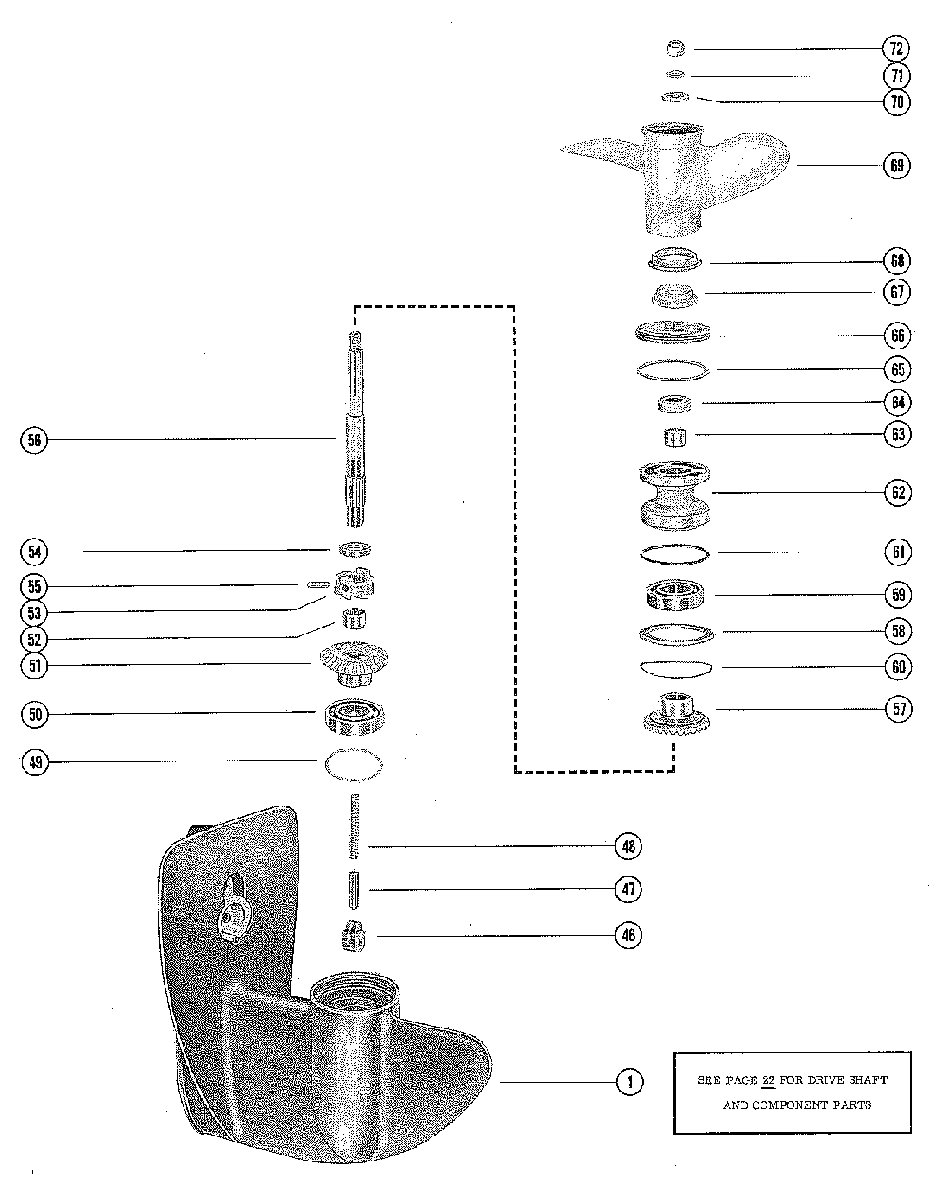

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 110 2798057 THRU 3263262
-
№АртикулНазвание
-
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL #2798057-02938830GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL #2798057-02938830 -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL #2798057-02938830GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL #2798057-02938830 -
-1630-4407A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL #3002814-09999999GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL #3002814-09999999 -
-1630-4407A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL #3002814-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL #3002814-09999999 -
11630-2643A9 GEAR HOUSING ASSEMBLY
SEE PAGE 22 FOR PARTS BREAKDOWN. SERIAL #2798057-02938830GEAR HOUSING ASSEMBLY
SEE PAGE 22 FOR PARTS BREAKDOWN. SERIAL #2798057-02938830 -
11630-4407A1 GEAR HOUSING ASSEMBLY
SERIAL #3002814-09999999GEAR HOUSING ASSEMBLY
SERIAL #3002814-09999999 -
4630599 CAM, SHIFT
SERIAL #2798057-02938830CAM, SHIFT
SERIAL #2798057-02938830 -
4644434 CAM SHIFT
SERIAL #3002814-09999999CAM SHIFT
SERIAL #3002814-09999999 -
4731334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4824-31333 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4915-30522A1 SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (,022-3-5-1)SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (,022-3-5-1)
-
5030-21889 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5143-48577A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5231-22458 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5352-47581 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5453-32449 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5517-30535 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5644-47851 SHAFT, PROPELLERSHAFT, PROPELLER
-
5743-48578 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5812-30531 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
5930-21889 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6015-30532A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6125-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6230541T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6331-22458 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6426-30530 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6512-30528 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6630537 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6786665A1 THRUST HUB ASSEMBLY, PROPELLER SHAFTTHRUST HUB ASSEMBLY, PROPELLER SHAFT
-
6886665A1 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
6948-47922A10 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 9" PITCH)
SHIPPED WITH ENGINE FROM FACTORY.PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 9" PITCH)
SHIPPED WITH ENGINE FROM FACTORY. -
6948-47922A10 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 10" PITCH)PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 10" PITCH)
-
6948-47924A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 10" PITCH)PROPELLER ASSEMBLY (2 BLADE - BRONZE - 10" PITCH)
-
6948-47670A10 PROPELLER ASSEMBLY (3 BLADE - BRONZE ALUMINUM - 7" PITCH)PROPELLER ASSEMBLY (3 BLADE - BRONZE ALUMINUM - 7" PITCH)
-
7011-64075A1 SPACER, SPLINED - PROPELLER SHAFTSPACER, SPLINED - PROPELLER SHAFT
-
7112-27025 WASHER, PROPELLER NUT
SERIAL #2798057-02938830WASHER, PROPELLER NUT
SERIAL #2798057-02938830 -
7211-34933 NUT, PROPELLERNUT, PROPELLER
