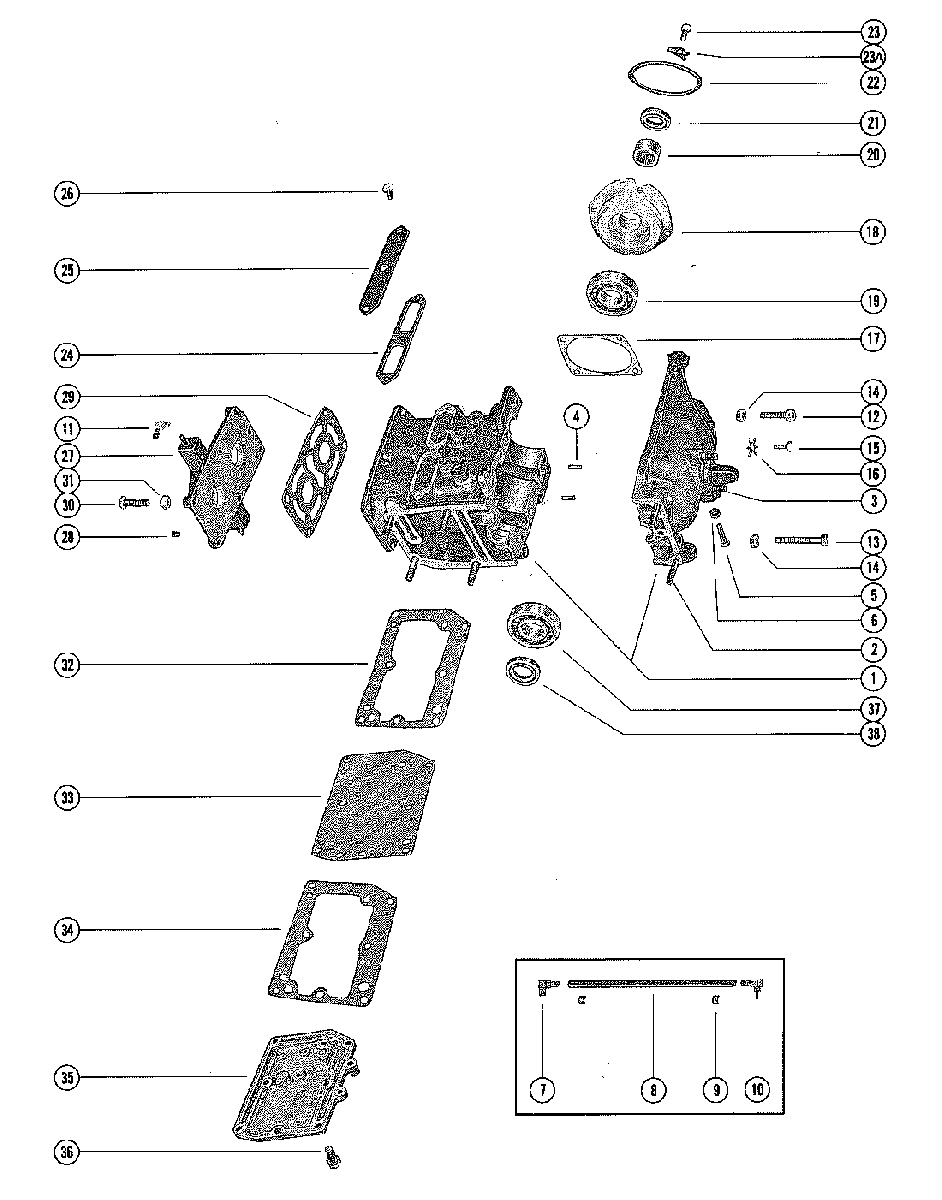

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 110 7027323 THRU 7111347
-
№АртикулНазвание
-
1837-6543A5 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3795658 THRU 4304784
AUSTRALIA 8015040 THRU 8034894
BELGIUM 9041439 THRU 9101513
CANADA 7027323 THRU 7063747CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3795658 THRU 4304784
AUSTRALIA 8015040 THRU 8034894
BELGIUM 9041439 THRU 9101513
CANADA 7027323 THRU 7063747 -
1837-6543A5 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4304785 THRU 4387436
AUSTRALIA 8034895 THRU 8037874
BELGIUM 9101514 THRU 9113964
CANADA 7063748 THRU 7074272CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4304785 THRU 4387436
AUSTRALIA 8034895 THRU 8037874
BELGIUM 9101514 THRU 9113964
CANADA 7063748 THRU 7074272 -
1837-6543A5 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4387437 THRU 4605111
AUSTRALIA 8037875 THRU 8044349
BELGIUM 9113965 THRU 9149504
CANADA 7074273 THRU 7093497CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4387437 THRU 4605111
AUSTRALIA 8037875 THRU 8044349
BELGIUM 9113965 THRU 9149504
CANADA 7074273 THRU 7093497 -
1837-6543A5 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPCYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
216-728091 STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSINGSTUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
-
310-657461 STUD, CARBURETOR MOUNTINGSTUD, CARBURETOR MOUNTING
-
417-8M0084726 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCKPIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
-
510-23015 SCREW, ADJ - THROTTLE CONTROL (1")
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272SCREW, ADJ - THROTTLE CONTROL (1")
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272 -
510-69560 SCREW, ADJ - THROTTLE CONTROL (1 1/4")
UNITED STATES 4387437 AND UP
AUSTRALIA 8037875 AND UP
BELGIUM 9113965 AND UP
CANADA 7074273 AND UPSCREW, ADJ - THROTTLE CONTROL (1 1/4")
UNITED STATES 4387437 AND UP
AUSTRALIA 8037875 AND UP
BELGIUM 9113965 AND UP
CANADA 7074273 AND UP -
611-68219 NUT, THROTTLE CONTROL ADJUSTING SCREWNUT, THROTTLE CONTROL ADJUSTING SCREW
-
721-64871A1 VALVE ASSEMBLY, BLEED DRAINVALVE ASSEMBLY, BLEED DRAIN
-
832-892024122 HOSE, BLEED DRAIN (6 1/2")HOSE, BLEED DRAIN (6 1/2")
-
954-56223 CLAMP, BLEED HOSE ATTACHINGCLAMP, BLEED HOSE ATTACHING
-
1022-61294 ELBOW, BLEED (MANUAL)ELBOW, BLEED (MANUAL)
-
1022-56759 ELBOW, BLEED (ELECTRIC)ELBOW, BLEED (ELECTRIC)
-
1122-996642 ELBOW, TELL TALE - CYLINDER BLOCKELBOW, TELL TALE - CYLINDER BLOCK
-
1210-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497SCREW, CRANKCASE TO CYLINDER BLOCK (1")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
1310-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
1411-24652 NUT, CRANKCASE FASTENING SCREW
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497NUT, CRANKCASE FASTENING SCREW
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
1210-76621 SCREW, CRANKCASE TO CYLINDER BLOCK
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPSCREW, CRANKCASE TO CYLINDER BLOCK
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
1310-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPSCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
1510-98260 SCREW, MAIN BEARING LOCKING (5/8")SCREW, MAIN BEARING LOCKING (5/8")
-
1614-20091 TAB WASHER, MIAN BEARING LOCKING SCREWTAB WASHER, MIAN BEARING LOCKING SCREW
-
1715-31412A1 SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)
-
181164-6413A1 BEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272BEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272 -
181164-6413A1 BEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 4387437 THRU 4605111
AUSTRALIA 8037875 THRU 8044349
BELGIUM 9113965 THRU 9149504
CANADA 7074273 THRU 7093497BEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 4387437 THRU 4605111
AUSTRALIA 8037875 THRU 8044349
BELGIUM 9113965 THRU 9149504
CANADA 7074273 THRU 7093497 -
181164-6413A1 BEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPBEARING HOUSING ASSEMBLY, UPPER
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
1930-72961 BEARING, BALL - UPPER BEARING HOUSINGBEARING, BALL - UPPER BEARING HOUSING
-
2031-31410 BEARING, ROLLER - UPPER BEARING HOUSINGBEARING, ROLLER - UPPER BEARING HOUSING
-
2126-66301 OIL SEAL, UPPER BEARING HOUSINGOIL SEAL, UPPER BEARING HOUSING
-
2225-20863 "O" RING, UPPER BEARING HOUSING"O" RING, UPPER BEARING HOUSING
-
2310-39002 SCREW, UPPER BEARING HOUSING (1/2")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497SCREW, UPPER BEARING HOUSING (1/2")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
2310-76611 SCREW, UPPER BEARING HOUSING (1/2")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPSCREW, UPPER BEARING HOUSING (1/2")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
23A14-78102 TAB WASHER, UPPER BEARING HOUSING SCREW
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPTAB WASHER, UPPER BEARING HOUSING SCREW
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
2427-780321 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2561155 COVER, TRANSFER PORT - MANUALCOVER, TRANSFER PORT - MANUAL
-
2610-20665 SCREW, PORT COVER TO CYLINDER BLOCK (1/2") - MANUALSCREW, PORT COVER TO CYLINDER BLOCK (1/2") - MANUAL
-
2574344 COVER, TRANSFER PORT - ELECTRICCOVER, TRANSFER PORT - ELECTRIC
-
2610-26537 SCREW, PORT COVER TO CYLINDER BLOCK - ELECTRICSCREW, PORT COVER TO CYLINDER BLOCK - ELECTRIC
-
271019-7465A1 COVER ASSEMBLY, CYLINDER BLOCKCOVER ASSEMBLY, CYLINDER BLOCK
-
2822-390721 PLUG, CYLINDER BLOCK COVERPLUG, CYLINDER BLOCK COVER
-
2927-41382 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3010-21091 SCREW, CYL BLOCK COVER TO CYL BLOCK (1 1/8")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497SCREW, CYL BLOCK COVER TO CYL BLOCK (1 1/8")
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
3111-24652 NUT, CYLINDER BLOCK COVER MOUNTAIN SCREW
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497NUT, CYLINDER BLOCK COVER MOUNTAIN SCREW
UNITED STATES 3795658 THRU 4605111
AUSTRALIA 8015040 THRU 8044349
BELGIUM 9041439 THRU 9149504
CANADA 7027323 THRU 7093497 -
3010-76630 SCREW, CYL BLOCK COVER TO CYL BLOCK (1")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UPSCREW, CYL BLOCK COVER TO CYL BLOCK (1")
UNITED STATES 4605112 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9149505 AND UP
CANADA 7093498 AND UP -
3227-78035 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3378034 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
3427-78035 GASKET, BAFFLE PLATEGASKET, BAFFLE PLATE
-
3574919T COVER, EXHAUST MANIFOLD
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272COVER, EXHAUST MANIFOLD
UNITED STATES 3795658 THRU 4387436
AUSTRALIA 8015040 THRU 8037874
BELGIUM 9041439 THRU 9113964
CANADA 7027323 THRU 7074272 -
3574919T COVER, EXHAUST MANIFOLD
UNITED STATES 4387437 AND UP
AUSTRALIA 8037875 AND UP
BELGIUM 9113965 AND UP
CANADA 7074273 AND UPCOVER, EXHAUST MANIFOLD
UNITED STATES 4387437 AND UP
AUSTRALIA 8037875 AND UP
BELGIUM 9113965 AND UP
CANADA 7074273 AND UP -
3610-28668 SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")
-
3730-72961 BEARING, BALL - CRANKCASE (LOWER)BEARING, BALL - CRANKCASE (LOWER)
-
3826-66301 OIL SEAL, CRANKCASE (LOWER)OIL SEAL, CRANKCASE (LOWER)
