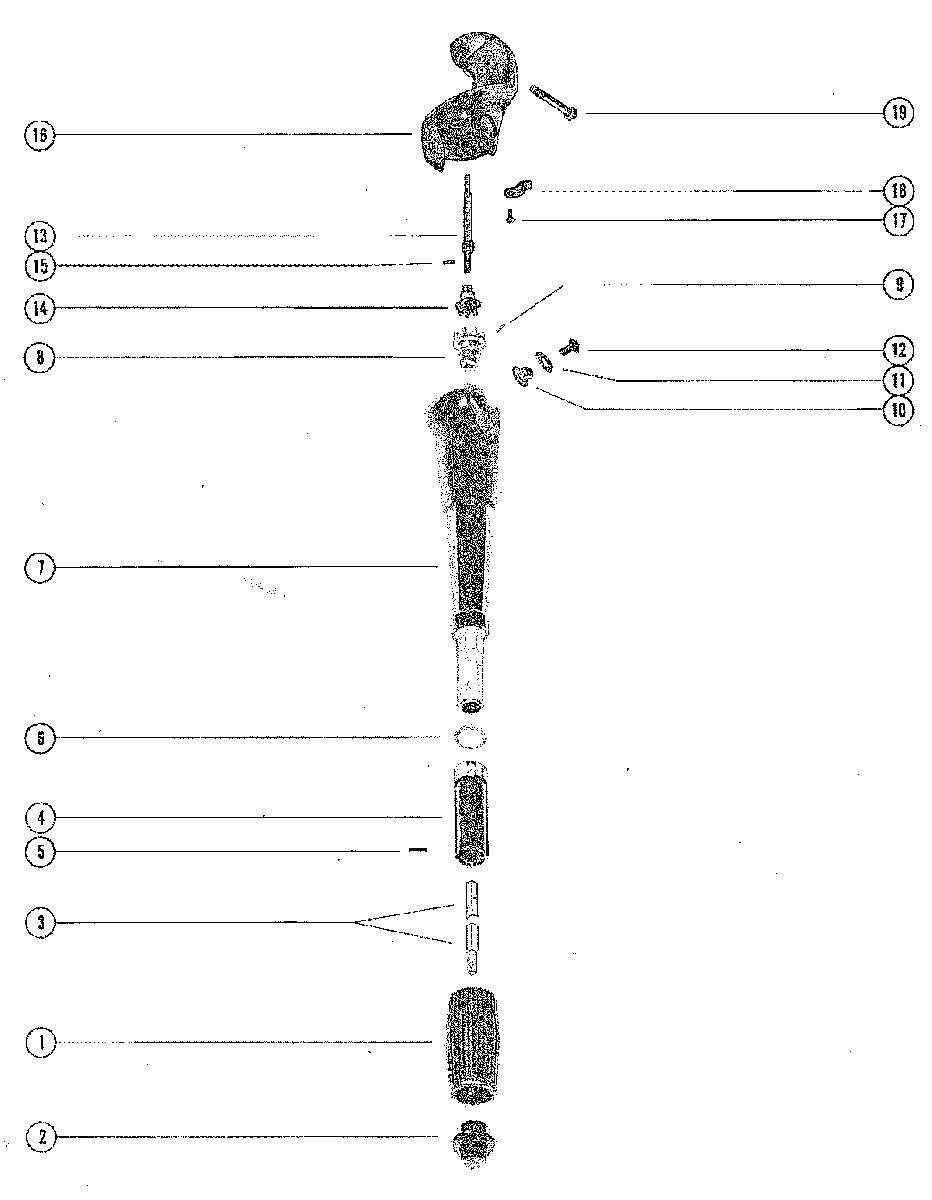

STEERING HANDLE ASSEMBLY для Mercury - 110 7111348 THRU 7125387

№

Артикул

Название
-

60850A6 STEERING HANDLE ASEMBLY, COMPLETE

STEERING HANDLE ASEMBLY, COMPLETE

0 ₽
1

60854 GRIP, HANDLE

GRIP, HANDLE

0 ₽
2

62251 CAP,HANDLE

CAP,HANDLE

0 ₽
3

66393 SHAFT, THROTTLE

SHAFT, THROTTLE

0 ₽
4

66394A1 HANDLE, THROTTLE SHAFT

HANDLE, THROTTLE SHAFT

0 ₽
5

17-46152 PIN, STEERING HANDLE

PIN, STEERING HANDLE

0 ₽
6

12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM

WASHER, THROTTLE HANDLE TO STEERING ARM

0 ₽
7

60850 ARM, STEERING HANDLE

ARM, STEERING HANDLE

0 ₽
8

43-60852 GEAR, BALL-THROTTLE SHAFT

GEAR, BALL-THROTTLE SHAFT

590 ₽
9

17-27088 PIN, BALL GEAR TO THROTTLE SHAFT

PIN, BALL GEAR TO THROTTLE SHAFT

0 ₽
10

48003 PIVOT,STEERING HANDLE TO BRACKET

PIVOT,STEERING HANDLE TO BRACKET

0 ₽
11

15-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)

SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)

0 ₽
12

10-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")

SCREW, STEERING HANDLE TO ARM BRACKET (5/8")

820 ₽
13

60857A2 UNIVERSAL JOINT ASSEMBLY

UNIVERSAL JOINT ASSEMBLY

0 ₽
14

43-60852 GEAR, BALL-UNIVERSAL JOINT

GEAR, BALL-UNIVERSAL JOINT

590 ₽
15

17-77564 PIN, BALL GEAR TO UNIVERSAL JOINT

PIN, BALL GEAR TO UNIVERSAL JOINT

0 ₽
16

96130A1 BRACKET ASSEMBLY, STEERING ARM

BRACKET ASSEMBLY, STEERING ARM

0 ₽
17

10-62233 SCREW, DETENT SPRING TO STEERING ARM BRACKET
(5/8")

SCREW, DETENT SPRING TO STEERING ARM BRACKET
(5/8")

0 ₽
18

24-72847 SPRING, DETENT-STEERING HANDLE

SPRING, DETENT-STEERING HANDLE

0 ₽
19

10-78038 SCREW, STEERING ARM BRACKET TO SADDLE

SCREW, STEERING ARM BRACKET TO SADDLE

220 ₽
