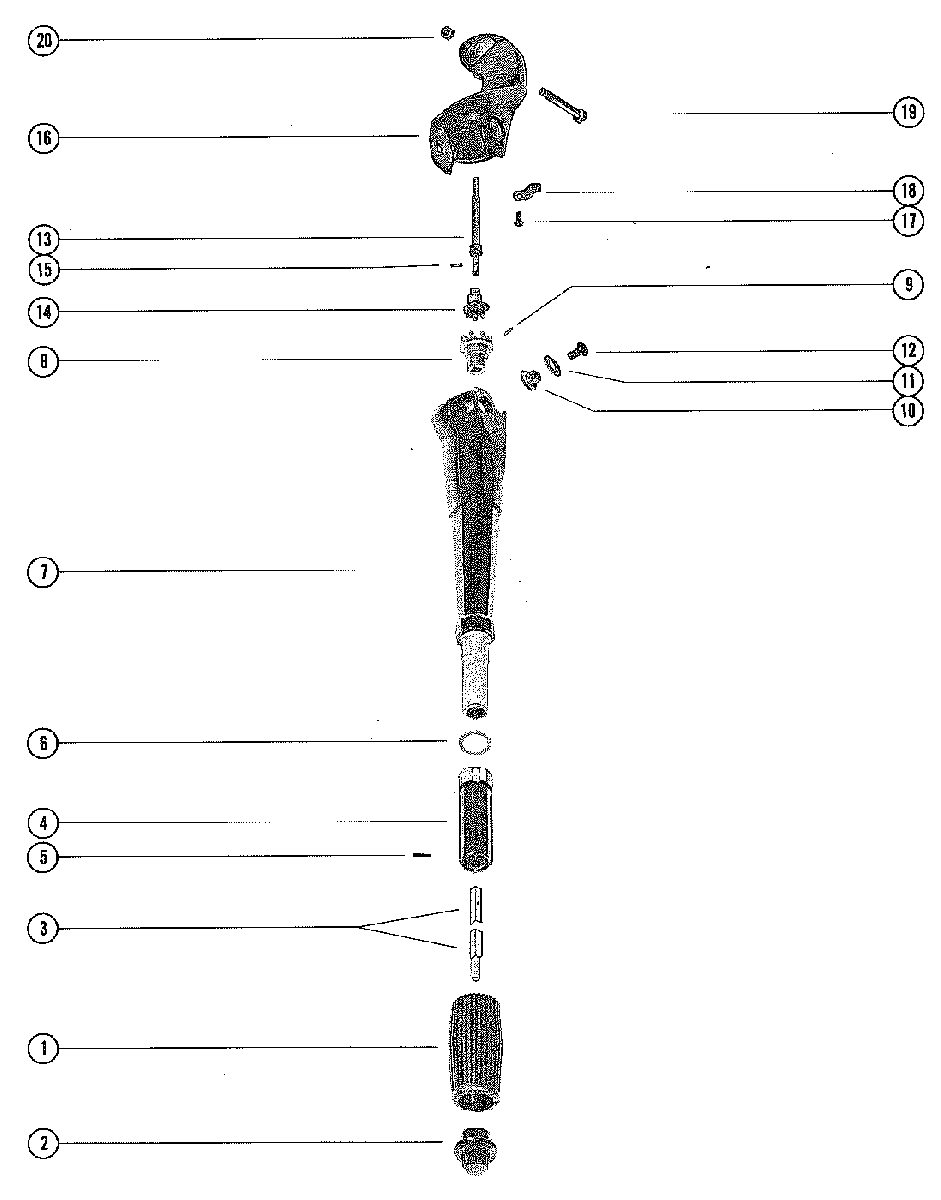

STEERING HANDLE ASSEMBLY для Mercury - 110 8015040 THRU 8050624
-
№АртикулНазвание
-
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
160854 GRIP, HANDLE - THROTTLEGRIP, HANDLE - THROTTLE
-
262251 CAP, HANDLE - THROTTLECAP, HANDLE - THROTTLE
-
366393 SHAFT, THROTTLESHAFT, THROTTLE
-
466394A1 HANDLE, THROTTLE SHAFTHANDLE, THROTTLE SHAFT
-
517-46152 PIN, STEERING HANDLEPIN, STEERING HANDLE
-
612-62252 WASHER, THROTTLE HANDLE TO STEERING ARMWASHER, THROTTLE HANDLE TO STEERING ARM
-
760850 ARM, STEERING HANDLEARM, STEERING HANDLE
-
843-60852 GEAR, BALL - THROTTLE SHAFTGEAR, BALL - THROTTLE SHAFT
-
917-27088 PIN, BALL GEAR TO THROTTLE SHAFTPIN, BALL GEAR TO THROTTLE SHAFT
-
1048003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1115-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
-
1210-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
-
1360857A2 UNIVERSAL JOINT ASSEMLBYUNIVERSAL JOINT ASSEMLBY
-
1443-60852 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
1517-68436 PIN, BALL GEAR TO UNIVERSAL JOINTPIN, BALL GEAR TO UNIVERSAL JOINT
-
1696130A1 BRACKET ASSEMBLY, STEERING ARMBRACKET ASSEMBLY, STEERING ARM
-
1710-62233 SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")
-
1824-72847 SPRING, DETENT - STEERING HANDLE
UNITED STATES 3795658 THRU 4304784
AUSTRALIA 8015040 THRU 8034894
BELGIUM 9041439 THRU 9101513
CANADA 7027323 THRU 7063747SPRING, DETENT - STEERING HANDLE
UNITED STATES 3795658 THRU 4304784
AUSTRALIA 8015040 THRU 8034894
BELGIUM 9041439 THRU 9101513
CANADA 7027323 THRU 7063747 -
1824-72847 SPRING, DETENT - STEERING HANDLE
UNITED STATES 4304785 AND UP
AUSTRALIA 8034895 AND UP
BELGIUM 9101514 AND UP
CANADA 7063748 AND UPSPRING, DETENT - STEERING HANDLE
UNITED STATES 4304785 AND UP
AUSTRALIA 8034895 AND UP
BELGIUM 9101514 AND UP
CANADA 7063748 AND UP -
1910-30679 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/4")SCREW, STEERING ARM BRACKET TO SADDLE (2 1/4")
-
2011-24652 NUT, STEERING ARM BRACKET FASTENING SCREWNUT, STEERING ARM BRACKET FASTENING SCREW
