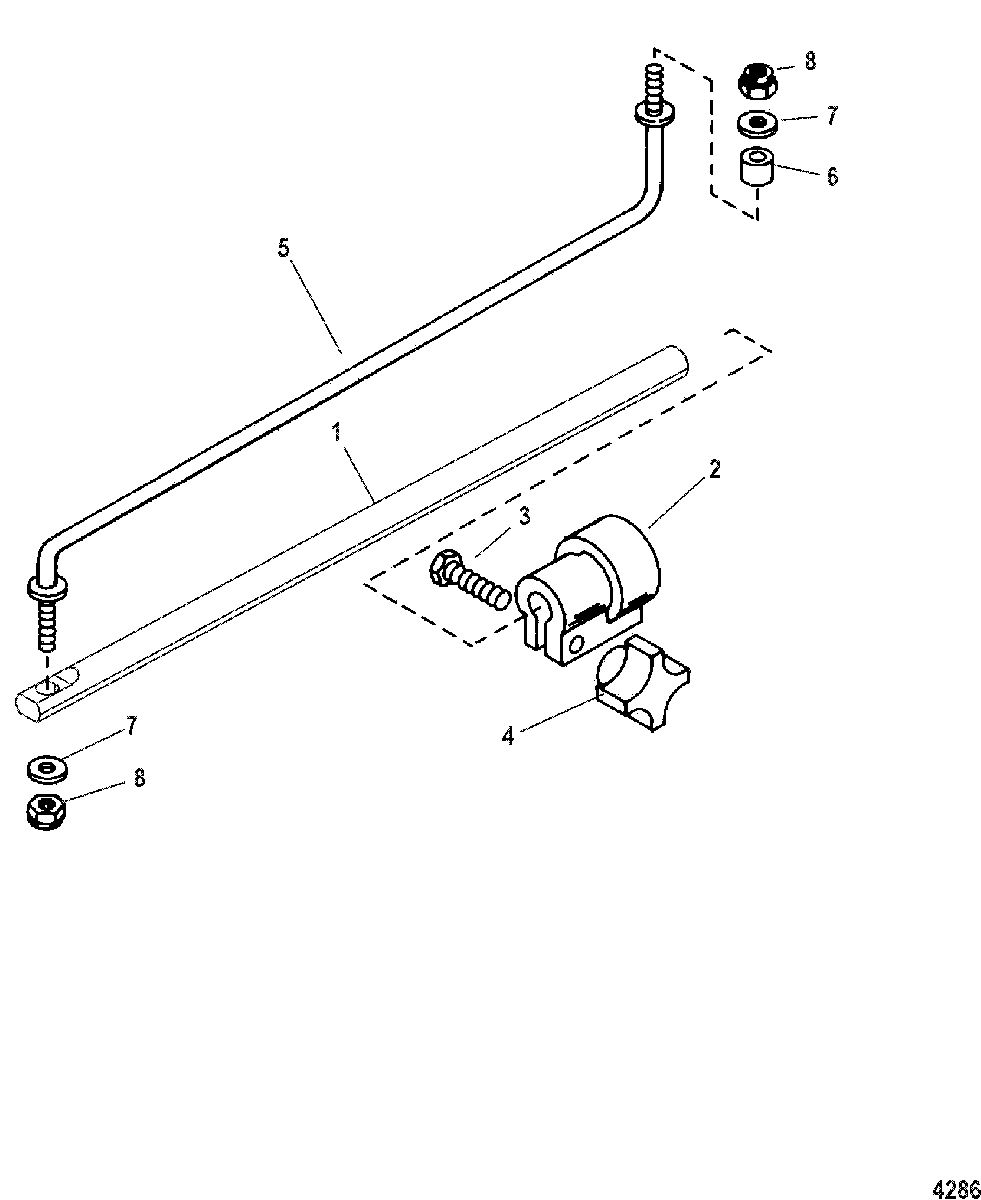

Co-Pilot для Mercury - 115 (4 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-56-52148A7 CO-PILOT ASSEMBLYCO-PILOT ASSEMBLY
-
1521481 PILOT RODPILOT ROD
-
211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
310-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
412-77674 WASHERWASHER
-
5821621 KNOB, ProngKNOB, Prong
-
6873491 RODROD
-
723-521512 BUSHINGBUSHING
-
812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
911-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
Все узлы модели:
- Accessories
- Attenuator Plate
- Bleed System
- Bottom Cowl
- Carburetor
- • Co-Pilot
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Crankcase
- Driveshaft Housing, USA-0T800999/ BEL-0P267999 and Below
- Driveshaft Housing, USA-0T801000/ BEL-0P268000 and Up
- Electrical Components
- Exhaust Plate(S/N USA-0T800999/BEL-0P267999 and Below)
- Exhaust Plate(S/N USA-0T801000/ BEL-0P268000 and Up)
- Flywheel and Starter Motor
- Fuel Pump
- Gasket Set Components, Engine Overhaul
- Gear Housing, Drive 2.07:1 USA-0T627235/BEL-0P215669 and Up
- Gear Housing, Drive-USA-0T627234/BEL-0P215668 and Below
- Gear Housing, Prop 2.07:1 USA-0T627235/BEL-0P215669 and Up
- Gear Housing, Prop USA-0T627234/BEL-0P215668 and Below
- Inducition Manifold and Reed Block
- Jet Pump Assembly
- Jet Pump Components
- Key Chart
- Oil Injection Components
- Power Trim Components
- Service/Support Material
- Starter Motor
- Steering Handle
- Steering Handle Components
- Swivel Bracket and Steering Arm
- Throttle Lever and Linkage
- Tiller Handle Adapter Kit(Jet 80)
- Tools, Special
- Top Cowl
- Transom Bracket(S/N USA-0T800999/ Bel-0P267999 and Below)
- Transom Bracket(S/N USA-0T801000/ Bel-0P268000 and Up)
