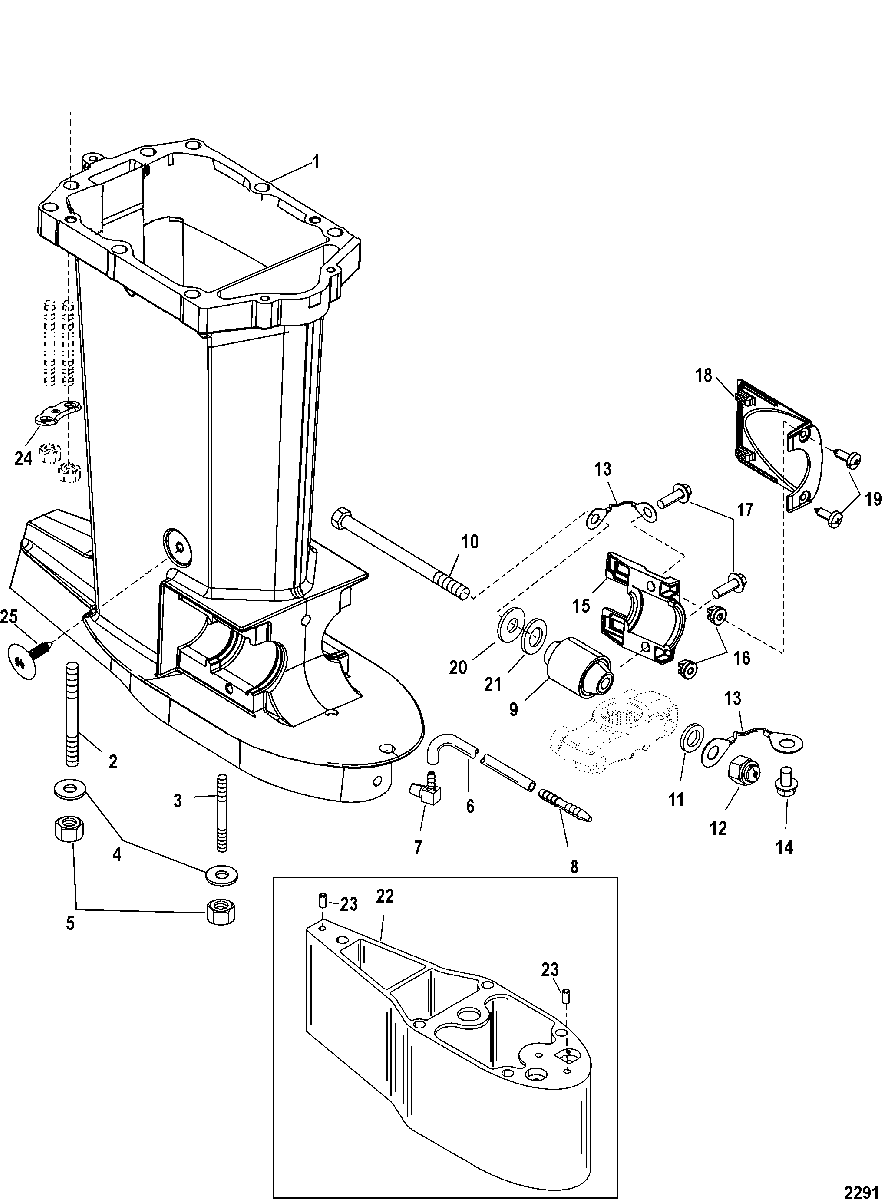

Driveshaft Housing, USA-0T801000/ BEL-0P268000 and Up для Mercury - 115 (4 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11598-881913T01 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
11598-881913T02 HOUSING ASSEMBLY, Driveshaft
(Jet)HOUSING ASSEMBLY, Driveshaft
(Jet) -
216-903501 STUD, (M10 x 100)
(Long)STUD, (M10 x 100)
(Long) -
216-8M0034467 STUD, (M10 x 227)
(X-Long)STUD, (M10 x 227)
(X-Long) -
316-9035012 STUD, (M10 x 63)
(Long)STUD, (M10 x 63)
(Long) -
316-8M0034462 STUD, (M10 x 190)
(X-Long)STUD, (M10 x 190)
(X-Long) -
412-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
511-40140 NUT, (M10)NUT, (M10)
-
622-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
722-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
822-85822T CONNECTOR, StraightCONNECTOR, Straight
-
9881916 MOUNTMOUNT
-
1010-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
1112-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
1211-43528 NUT, (M12)NUT, (M12)
-
1388238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1410-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
158M0036786 CLAMPCLAMP
-
1611-35521 NUTNUT
-
1710-889833025 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
18100-8M4500754 COVERCOVER
-
1910-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
2012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2112-881976 WASHER, NeopreneWASHER, Neoprene
-
2212092A3 SPACER KIT
(X-Long)SPACER KIT
(X-Long) -
2317-43044 PIN, Dowel - Without Hole (.375 x .625)
(X-Long)(Rear)PIN, Dowel - Without Hole (.375 x .625)
(X-Long)(Rear) -
2317-8M0084244 PIN, Dowel - With Hole (.375 x .625) (With Hole)
(X-Long)(Front)PIN, Dowel - With Hole (.375 x .625) (With Hole)
(X-Long)(Front) -
24892214 PLATE WASHERPLATE WASHER
-
2519-8M0026580 PLUG, Driveshaft HousingPLUG, Driveshaft Housing
