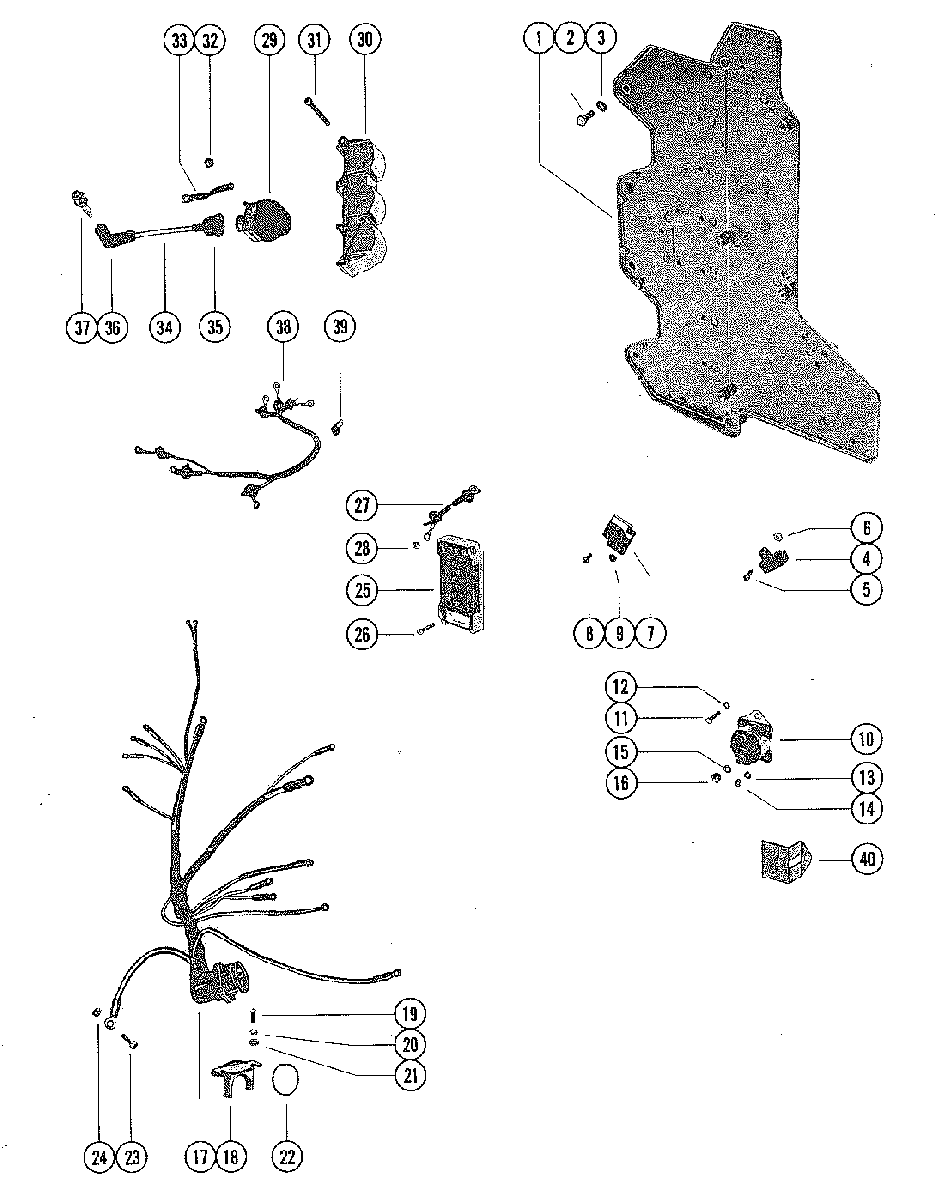

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercury - 115 (6 CYL.) 7131213 THRU 7147987
-
№АртикулНазвание
-
189748T PLATE, ELECTRICAL MOUNTINGPLATE, ELECTRICAL MOUNTING
-
210-86885 SCREW, PLATE TO CYLINDER BLOCK (1 1/2")SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
-
210-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")SCREW, PLATE TO CYLINDER BLOCK (3/4")
-
210-28667 SCREW, PLATE TO CYLINDER BLOCK (1")SCREW, PLATE TO CYLINDER BLOCK (1")
-
312-29245 WASHER, PLATE SCREWWASHER, PLATE SCREW
-
487-33386A3 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
510-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")SCREW, MERCURY SWITCH TO PLATE (5/8")
-
611-45076 NUT, WIRE TO MERCURY SWITCHNUT, WIRE TO MERCURY SWITCH
-
78M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
810-25764 SCREW, RECITFIER TO IGNITION PLATE (5/8")SCREW, RECITFIER TO IGNITION PLATE (5/8")
-
911-45076 NUT, RECTIFIER TERMINALSNUT, RECTIFIER TERMINALS
-
1089-853654A1 SOLENOID, STARTERSOLENOID, STARTER
-
1110-38601 SCREW, STARTER TO SOLENOID TO PLATE (1/2")SCREW, STARTER TO SOLENOID TO PLATE (1/2")
-
1213-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
1313-26996 LOCKWASHER, SOLENOID TERMINALS (#10)LOCKWASHER, SOLENOID TERMINALS (#10)
-
1411-68219 NUT, SOLENOID TERMINALS (10-32)NUT, SOLENOID TERMINALS (10-32)
-
1513-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")LOCKWASHER, SOLENOID TERMINALS (5/16")
-
1611-68292 NUT, SOLENOID TERMINALS (5/16 - 18)NUT, SOLENOID TERMINALS (5/16 - 18)
-
1784-85532A1 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
1854-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
1910-690201 SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") -
2013-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
2112-30164 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
2224-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2310-98256 SCREW, GROUND WIRE TO BOTTOM COWLSCREW, GROUND WIRE TO BOTTOM COWL
-
2413-26992 LOCKWASHER, GROUND WIRE SCREWLOCKWASHER, GROUND WIRE SCREW
-
25332-7778A12 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
2610-26251 SCREW, SWITCH BOX TO IGNITION COIL (7/8")SCREW, SWITCH BOX TO IGNITION COIL (7/8")
-
2784-62310A3 CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK) -
2811-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
29339-832757A4 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
3043542 COVER, IGNITION COILCOVER, IGNITION COIL
-
3110-88856 SCREW, IGNITION COIL COVER (2")SCREW, IGNITION COIL COVER (2")
-
3211-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
3384-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)CABLE ASSEMBLY, IGNITION COIL (BLACK)
-
3484-813715A1 CABLE, HIGH TENSIONCABLE, HIGH TENSION
-
35332-2854T01 BOOT, HIGH TENSION CABLEBOOT, HIGH TENSION CABLE
-
3685-63709A1 PROTECTOR, HIGH TENSION CABLEPROTECTOR, HIGH TENSION CABLE
-
3733-97180Q SPARK PLUG (CHAMPION #L76-V)SPARK PLUG (CHAMPION #L76-V)
-
3884-85537A2 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2, 4 AND 6)HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2, 4 AND 6) -
3884-85537A1 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1, 3 AND 5)HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1, 3 AND 5) -
3954-63153 CLIP, HARNESS TO COIL COVERCLIP, HARNESS TO COIL COVER
-
4085-78866 INSULATOR, STARTER SOLENOIDINSULATOR, STARTER SOLENOID
