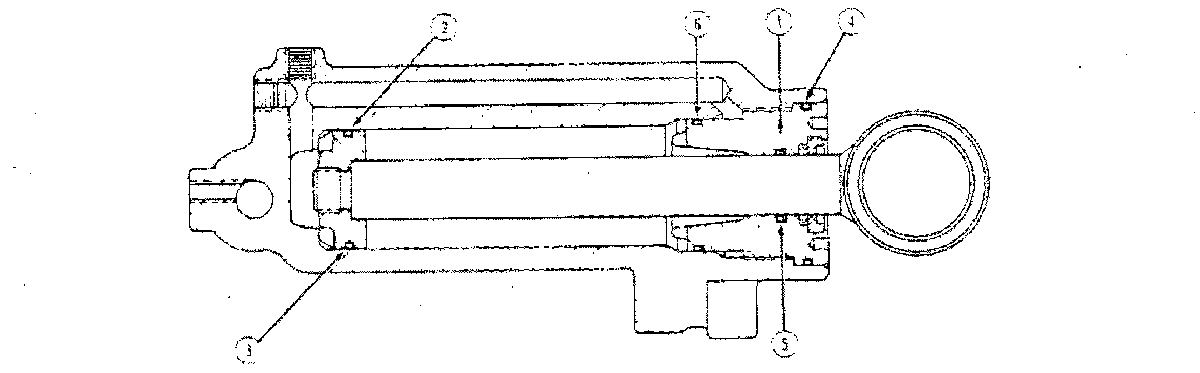

POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A14) для Mercury - 115 (6 CYL.) 7147988 THRU 7208847
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE BELOW)REPAIR KIT (SEE NOTE BELOW)
-
1N.S.S. CYLINDER CAPCYLINDER CAP
-
2N.S.S. "O"RING (1-1 4" X X1-1 2" X 1 8")"O"RING (1-1 4" X X1-1 2" X 1 8")
-
3N.S.S. SPACERSPACER
-
4N.S.S. "O"RING (1-7 8" X 2-1 16" X 3 32")"O"RING (1-7 8" X 2-1 16" X 3 32")
-
5N.S.S. "O"RING (3 4" X 15 16" X 3 32")"O"RING (3 4" X 15 16" X 3 32")
-
6N.S.S. "O"RING (1-1 2" X 1-3 4" X 3 32")"O"RING (1-1 2" X 1-3 4" X 3 32")
