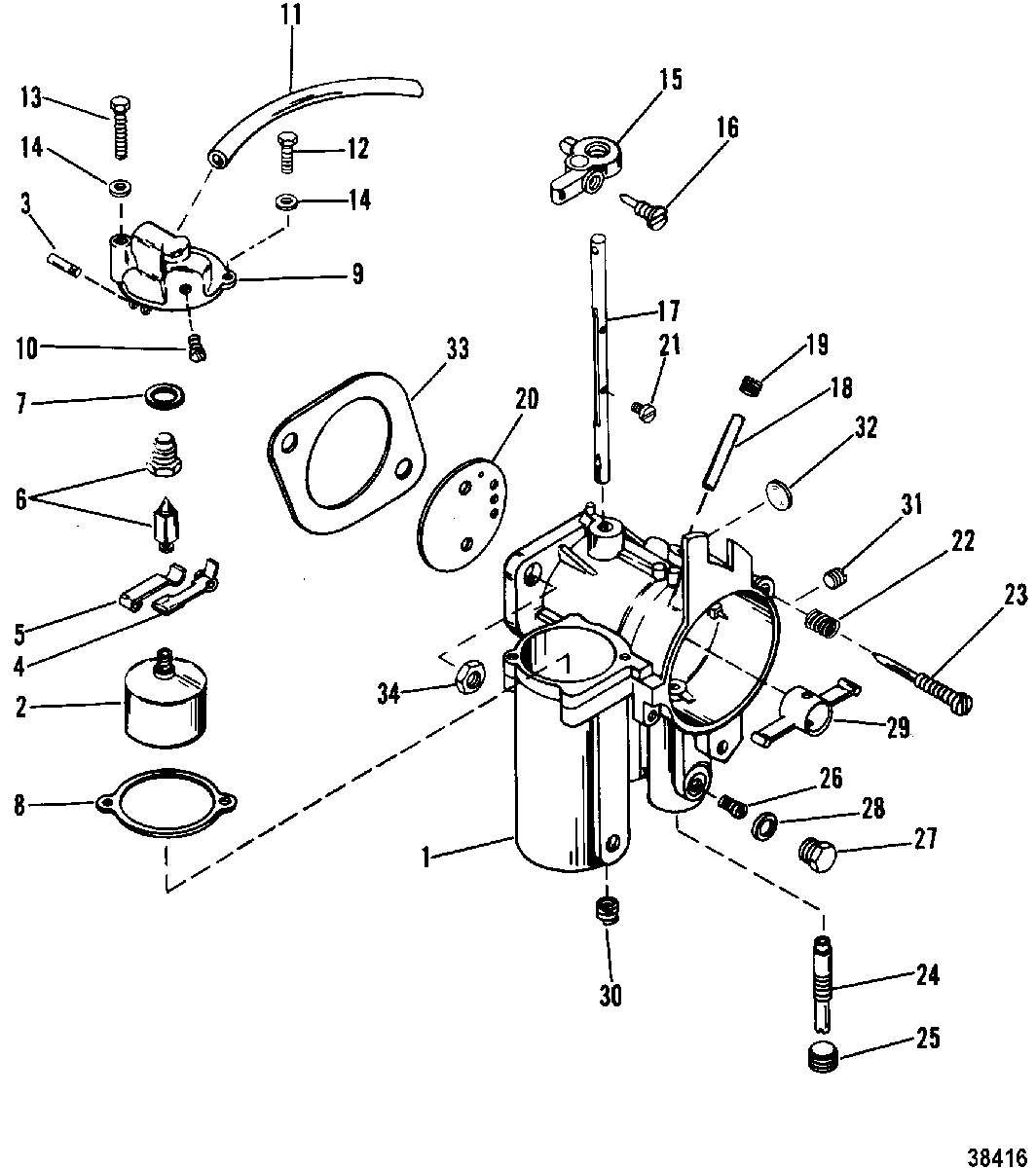

CARBURETOR для Mercury - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
11368-7469A14 CARBURETOR (TOP)
(90)CARBURETOR (TOP)
(90) -
11368-7472A27 CARBURETOR (TOP)
(115)CARBURETOR (TOP)
(115) -
11368-7469A15 CARBURETOR (CENTER)
(90)CARBURETOR (CENTER)
(90) -
11368-7472A28 CARBURETOR (CENTER)
(115)CARBURETOR (CENTER)
(115) -
11368-7469A16 CARBURETOR (BOTTOM)
(90)CARBURETOR (BOTTOM)
(90) -
11368-7472A29 CARBURETOR (BOTTOM)
(115)CARBURETOR (BOTTOM)
(115) -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3NSS NOT SOLD SEPARATE, PIN-FLOAT LEVER PINIONNOT SOLD SEPARATE, PIN-FLOAT LEVER PINION
-
4NSS NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)
-
5NSS NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)
-
61395-83181 NEEDLE, Inlet, SEAT AND GASKETNEEDLE, Inlet, SEAT AND GASKET
-
7NSS NOT SOLD SEPARATE, GASKET-INLET SEATNOT SOLD SEPARATE, GASKET-INLET SEAT
-
8NSS NOT SOLD SEPARATE, GASKET, FLOAT BOWL COVERNOT SOLD SEPARATE, GASKET, FLOAT BOWL COVER
-
91395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
101395-7335 JET, (.098), BOWL VENT
(90)JET, (.098), BOWL VENT
(90) -
101395-8423 JET, (.094), BOWL VENT
(115)JET, (.094), BOWL VENT
(115) -
1132-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1210-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
131395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1413-26995 LOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREWLOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREW
-
158146791 LEVER, THROTTLE (SEE NOTE)LEVER, THROTTLE (SEE NOTE)
-
161395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
171395-7614 SHAFT, THROTTLE
(TOP)SHAFT, THROTTLE
(TOP) -
171395-7942 SHAFT, THROTTLE
(CENTER/BOTTOM)SHAFT, THROTTLE
(CENTER/BOTTOM) -
18NSS NOT SOLD SEPARATE, IDLE TUBENOT SOLD SEPARATE, IDLE TUBE
-
191395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
201395-7874 SHUTTER, Throttle
(90)SHUTTER, Throttle
(90) -
201395-8964 SHUTTER, Throttle
(115)SHUTTER, Throttle
(115) -
21NSS NOT SOLD SEPARATE, SCREW-THROTTLE SHUTTERNOT SOLD SEPARATE, SCREW-THROTTLE SHUTTER
-
22NSS NOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREWNOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREW
-
23NSS NOT SOLD SEPARATE, SCREW, IDLE ADJUSTMENTNOT SOLD SEPARATE, SCREW, IDLE ADJUSTMENT
-
24NSS NOT SOLD SEPARATE, MAIN NOZZLENOT SOLD SEPARATE, MAIN NOZZLE
-
251395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
261399-3794 JET, (.074), MAIN FUEL
(WMK-41-A)(90/115)JET, (.074), MAIN FUEL
(WMK-41-A)(90/115) -
261399-3796 JET, (.076), MAIN FUEL
(WMK-41B)(115)JET, (.076), MAIN FUEL
(WMK-41B)(115) -
261395-6029 JET, (.068)
(90/115)JET, (.068)
(90/115) -
261395-6030 JET, (.070)
(90/115)JET, (.070)
(90/115) -
261395-6207 JET, (.072)
(90/115)JET, (.072)
(90/115) -
271395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
28NSS NOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREWNOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREW
-
2952106A1 VENTURI, PlasticVENTURI, Plastic
-
30NSS NOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURNNOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURN
-
311395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
32NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNELNOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL
-
--1395-879194024 GASKET SET
(1 PER CARBURETOR)GASKET SET
(1 PER CARBURETOR) -
--1395-51091 REPAIR PARTS KIT
(1 PER CARBURETOR)REPAIR PARTS KIT
(1 PER CARBURETOR) -
3327-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3411-64809 NUT, CARBURETOR SUTDNUT, CARBURETOR SUTD
