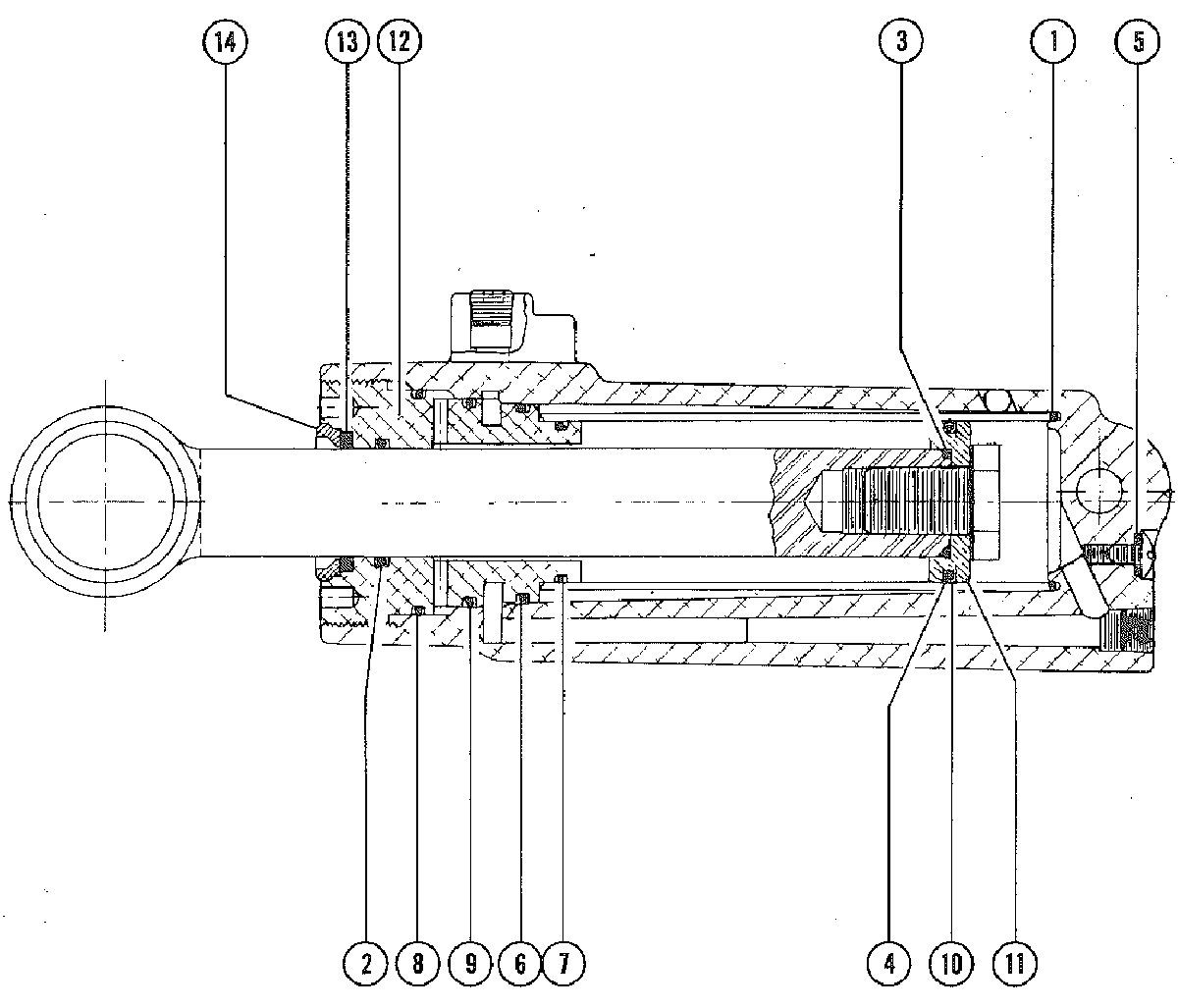

POWER TRIM CYLINDER REPAIR KITS для Mercury - 115 (6 CYL.) 8061120 THRU 8061269
-
№АртикулНазвание
-
-64507A1 REPAIR KITREPAIR KIT
-
1N.S.S. "O" RING (1 1/2" X 1 5/8" X 1/16")"O" RING (1 1/2" X 1 5/8" X 1/16")
-
2N.S.S. "O" RING (3/4" X 15/16" X 1/8")"O" RING (3/4" X 15/16" X 1/8")
-
3N.S.S. "O" RING (5/8" X 3/4" X 1/16")"O" RING (5/8" X 3/4" X 1/16")
-
4N.S.S. "O" RING (1 1/4" X 1 7/16" X 1/16")"O" RING (1 1/4" X 1 7/16" X 1/16")
-
5N.S.S. "O" RING (7/32" X 11/32" X 1/16")"O" RING (7/32" X 11/32" X 1/16")
-
6N.S.S. "O" RING (1 5/8" X 1 13/16" X 1/8")"O" RING (1 5/8" X 1 13/16" X 1/8")
-
7N.S.S. "O" RING (1 5/16" X 1 1/2" X 1/8")"O" RING (1 5/16" X 1 1/2" X 1/8")
-
8N.S.S. "O" RING (1 7/8" X 2" X 1/8")"O" RING (1 7/8" X 2" X 1/8")
-
9N.S.S. "O" RING (1 3/4" X 1 15/16" X 1/8")"O" RING (1 3/4" X 1 15/16" X 1/8")
-
10N.S.S. SEAL, SLIPPER - PISTONSEAL, SLIPPER - PISTON
-
11N.S.S. PISTON, ROD - HEAVY DUTYPISTON, ROD - HEAVY DUTY
-
1264505A1 RETAINER ASSEMBLY, PISTONRETAINER ASSEMBLY, PISTON
-
13N.S.S. ROD, SCRAPERROD, SCRAPER
-
14N.S.S. RETAINER, SCRAPERRETAINER, SCRAPER
