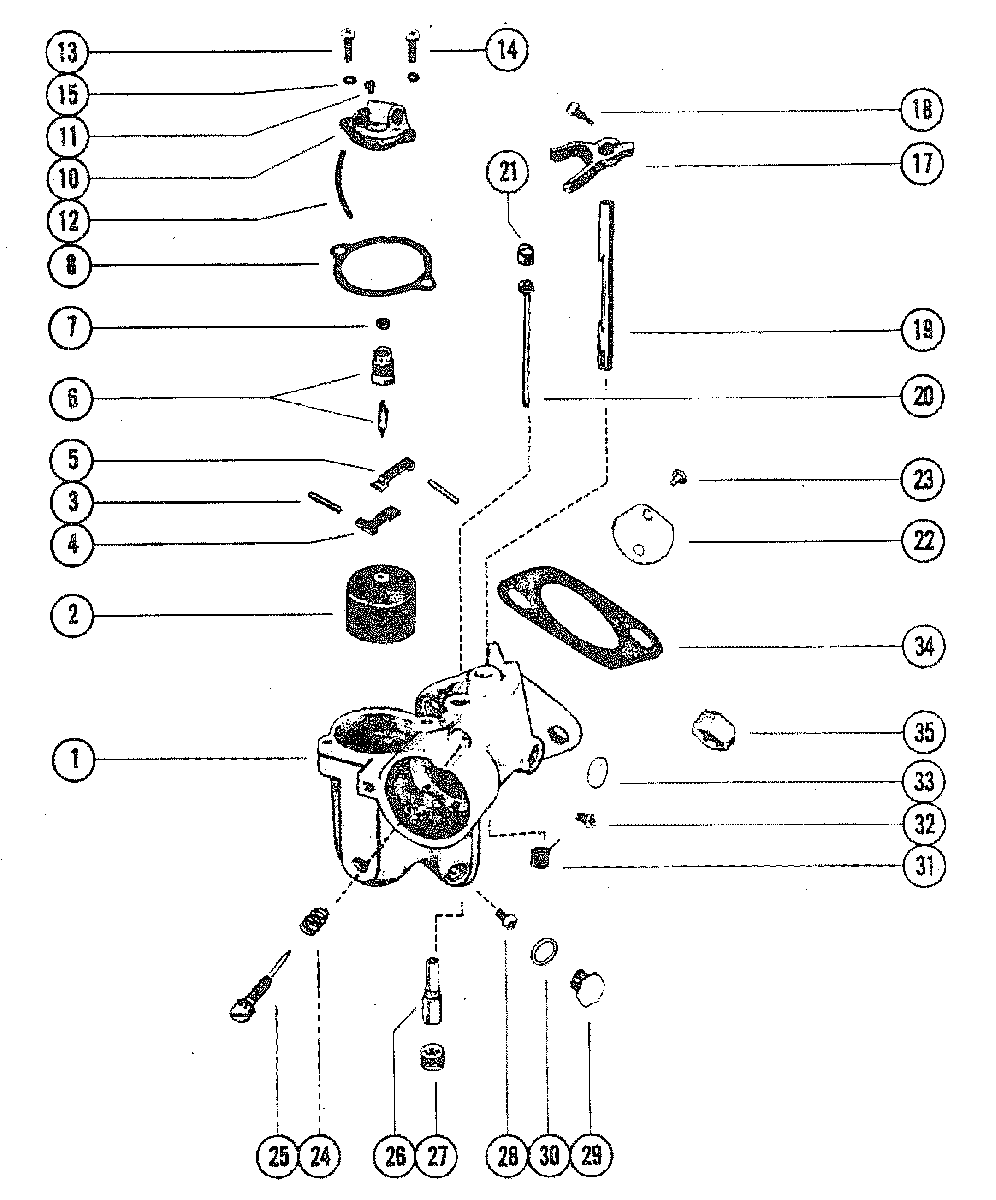

CARBURETOR ASSEMBLY для Mercury - 115 (6 CYL.) 8067340 AND UP
-
№АртикулНазвание
-
11368-7472A1 CARBURETOR (TOP)-STAMPED WMK-28
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW CANADA 7186572 AND BELOWCARBURETOR (TOP)-STAMPED WMK-28
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW CANADA 7186572 AND BELOW -
11368-7472A3 CARBURETOR (CENTER/BOTTOM)
STAMPED WMK-28
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOWCARBURETOR (CENTER/BOTTOM)
STAMPED WMK-28
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOW -
11368-7472A6 CARBURETOR (TOP)-STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOWCARBURETOR (TOP)-STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOW -
11368-7472A8 CARBURETOR (CENTER/BOTTOM)
STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOWCARBURETOR (CENTER/BOTTOM)
STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOW -
11368-7472A10 CARBURETOR (TOP)-STAMPED WMK-36
UNITED STATES 6051526 THRU 6262960
CANADA 7186573 THRU 7200642CARBURETOR (TOP)-STAMPED WMK-36
UNITED STATES 6051526 THRU 6262960
CANADA 7186573 THRU 7200642 -
11368-7472A12 CARBURETOR (CENTER/BOTTOM)
STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOWCARBURETOR (CENTER/BOTTOM)
STAMPED WMK-32
UNITED STATES 6051525 AND BELOW
AUSTRALIA 8071274 AND BELOW
CANADA 7186572 AND BELOW -
11368-7472A27 CARBURETOR (TOP)-STAMED WMK-40
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPCARBURETOR (TOP)-STAMED WMK-40
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
11368-7472A29 CARBURETOR (CENTER/BOTTOM)
STAMED WMK-40
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPCARBURETOR (CENTER/BOTTOM)
STAMED WMK-40
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
21395-8673 FLOAT ASSEMBLY (WMK-28/WMK-32)FLOAT ASSEMBLY (WMK-28/WMK-32)
-
21395-8673 FLOAT ASSEMBLY (WMK-36/WMK-40)FLOAT ASSEMBLY (WMK-36/WMK-40)
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKET (WMK-28)INLET NEEDLE, SEAT AND GASKET (WMK-28)
-
61395-83181 INLET NEEDLE, SEAT AND GASKET (WMK-32/36/40)INLET NEEDLE, SEAT AND GASKET (WMK-32/36/40)
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
101395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
111399-6249 JET, BOWL VENT (.096) )WMK-28)JET, BOWL VENT (.096) )WMK-28)
-
111395-8423 JET, BOWL VENT (.094)
(WMK-32/WMK-36/WMK-40)JET, BOWL VENT (.094)
(WMK-32/WMK-36/WMK-40) -
1232-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1310-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
141395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1513-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
178146791 LEVER, THROTTLE (SEE NOTE BELOW)LEVER, THROTTLE (SEE NOTE BELOW)
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
191395-7614 SHAFT, THROTTLE (TOP)SHAFT, THROTTLE (TOP)
-
191395-7942 SHAFT, THROTTLE (CENTER/BOTTOM)SHAFT, THROTTLE (CENTER/BOTTOM)
-
2090-8M0143356 TUBE, IDLETUBE, IDLE
-
211395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
221395-7639 SHUTTER, THROTTLE(WMK-28/WMK-32/WMK-36)SHUTTER, THROTTLE(WMK-28/WMK-32/WMK-36)
-
221395-8964 SHUTTER, THROTTLE (WMK-40)SHUTTER, THROTTLE (WMK-40)
-
2390-8M0143356 SCREW, THROTTLE SHUTTERSCREW, THROTTLE SHUTTER
-
2490-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
2590-8M0143356 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2690-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
271395-4542 SCREW, PLUG-MAIN NOZZLESCREW, PLUG-MAIN NOZZLE
-
281399-3796 JET, MAIN FUEL (.076)-STANDARD (WMK-36)JET, MAIN FUEL (.076)-STANDARD (WMK-36)
-
281399-3794 JET, MAIN FUEL
(.074)-STANDARD (WMK-28/WMK-40)JET, MAIN FUEL
(.074)-STANDARD (WMK-28/WMK-40) -
281395-6207 JET, MAIN FUEL (.072)-STANDARD (WMK-32)JET, MAIN FUEL (.072)-STANDARD (WMK-32)
-
281395-6030 JET, MAIN FUEL (.070)JET, MAIN FUEL (.070)
-
281395-6029 JET, MAIN FUEL (.068)JET, MAIN FUEL (.068)
-
291395-4541 SCREW, PLUG-MAIN FUEL JET CHANNELSCREW, PLUG-MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3190-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
321395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
3390-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-28)REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-28)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
(WMK-32/WMK-36)REPAIR PARTS KIT (1 PER CARBURETOR)
(WMK-32/WMK-36) -
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-40)REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-40)
-
3427-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3511-64809 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
