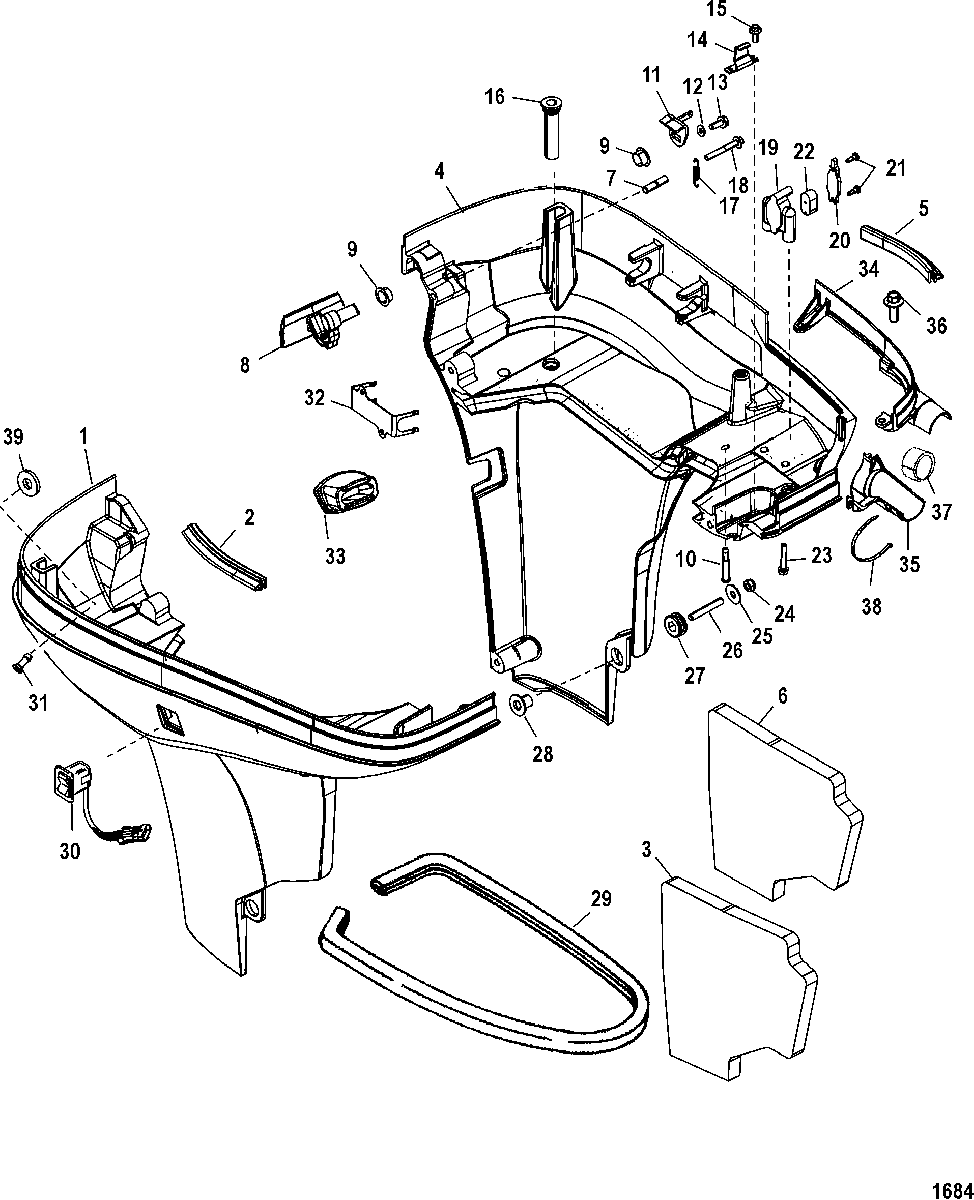

Bottom Cowl для Mercury - 115 DFI (3 CYL.)(1.5L) 0T801000 THRU 1B226999

№

Артикул

Название
1

100-880775A03 BOTTOM COWL, Starboard
SN# 0T979999 & Below

BOTTOM COWL, Starboard
SN# 0T979999 & Below

109 140 ₽
1

100-880775A03 BOTTOM COWL, Starboard
SN# 0T980000 & Up

BOTTOM COWL, Starboard
SN# 0T980000 & Up

109 140 ₽
2

8M0109217 SEAL, Cowl (41.00 Inches)

SEAL, Cowl (41.00 Inches)

4 620 ₽
3

NSS NOT SOLD SEPARATE, Sound Blanket (Part of 889720A00)

NOT SOLD SEPARATE, Sound Blanket (Part of 889720A00)

0 ₽
4

100-880774A03 BOTTOM COWL, Port
SN# 0T979999 & Below

BOTTOM COWL, Port
SN# 0T979999 & Below

109 960 ₽
4

100-880774A03 BOTTOM COWL, Port
SN# 0T980000 & Up

BOTTOM COWL, Port
SN# 0T980000 & Up

109 960 ₽
5

8M0109217 SEAL, Cowl (41.00 Inches)

SEAL, Cowl (41.00 Inches)

4 620 ₽
6

889720A00 SOUND BLANKET KIT
(PORT)

SOUND BLANKET KIT
(PORT)

14 390 ₽
7

17-885116 PIN

PIN

100 ₽
8

880783T LEVER, Cowl Latch

LEVER, Cowl Latch

5 440 ₽
9

23-335891 BUSHING

BUSHING

910 ₽
10

22-889684002 FITTING, Vent
SN# 0T979999 & Below

FITTING, Vent
SN# 0T979999 & Below

410 ₽
10

22-889684002 FITTING, Vent
SN# 0T980000 & Up

FITTING, Vent
SN# 0T980000 & Up

410 ₽
11

884468 CAM, Latch

CAM, Latch

1 670 ₽
12

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel

200 ₽
13

10-1993716 SCREW, (M6 x 16)

SCREW, (M6 x 16)

180 ₽
14

822363T1 RETAINER

RETAINER

2 030 ₽
15

10-82130016 SCREW, (M6 x 16)

SCREW, (M6 x 16)

350 ₽
16

21-817519A2 CHECK VALVE ASSEMBLY, Drain

CHECK VALVE ASSEMBLY, Drain

720 ₽
17

24-892166001 SPRING
SN# 0T979999 & Below

SPRING
SN# 0T979999 & Below

500 ₽
17

24-892166001 SPRING
SN# 0T980000 & Up

SPRING
SN# 0T980000 & Up

500 ₽
18

10-82130040 SCREW, (M6 x 40)

SCREW, (M6 x 40)

520 ₽
19

19812T03 BRACKET, Cable Retainer

BRACKET, Cable Retainer

4 880 ₽
20

98889 LATCH

LATCH

180 ₽
21

10-42975 DRIVE SCREW

DRIVE SCREW

200 ₽
22

39519 CUP

CUP

330 ₽
23

10-40011154 SCREW, (M8 x 50) Stainless Steel

SCREW, (M8 x 50) Stainless Steel

1 320 ₽
24

11-401388 NUT, (M8)

NUT, (M8)

260 ₽
25

12-817274 WASHER

WASHER

50 ₽
26

16-8M0034456 STUD

STUD

460 ₽
27

25-855362001 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

230 ₽
27

25-855362001 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

230 ₽
28

23-855364 BUSHING

BUSHING

460 ₽
29

8M0043167 SEAL, Lower Cowl (44.75 Inches)

SEAL, Lower Cowl (44.75 Inches)

5 630 ₽
30

87-8M0042300 SWITCH, Trim

SWITCH, Trim

10 650 ₽
31

22-94848 FITTING

FITTING

320 ₽
32

888508 RETAINER, Cable

RETAINER, Cable

340 ₽
33

884464 BOOT, Idle Relief

BOOT, Idle Relief

1 570 ₽
34

8M0000504 CLAMP, Upper

CLAMP, Upper

1 020 ₽
35

8M0000484 CLAMP, Lower

CLAMP, Lower

900 ₽
36

10-82130016 SCREW, (M6 x 16)

SCREW, (M6 x 16)

350 ₽
37

859343 FOAM

FOAM

410 ₽
38

54-850181 TIE STRAP, (11.750 Inches)

TIE STRAP, (11.750 Inches)

50 ₽
39

23-892427 SPACER

SPACER

560 ₽
