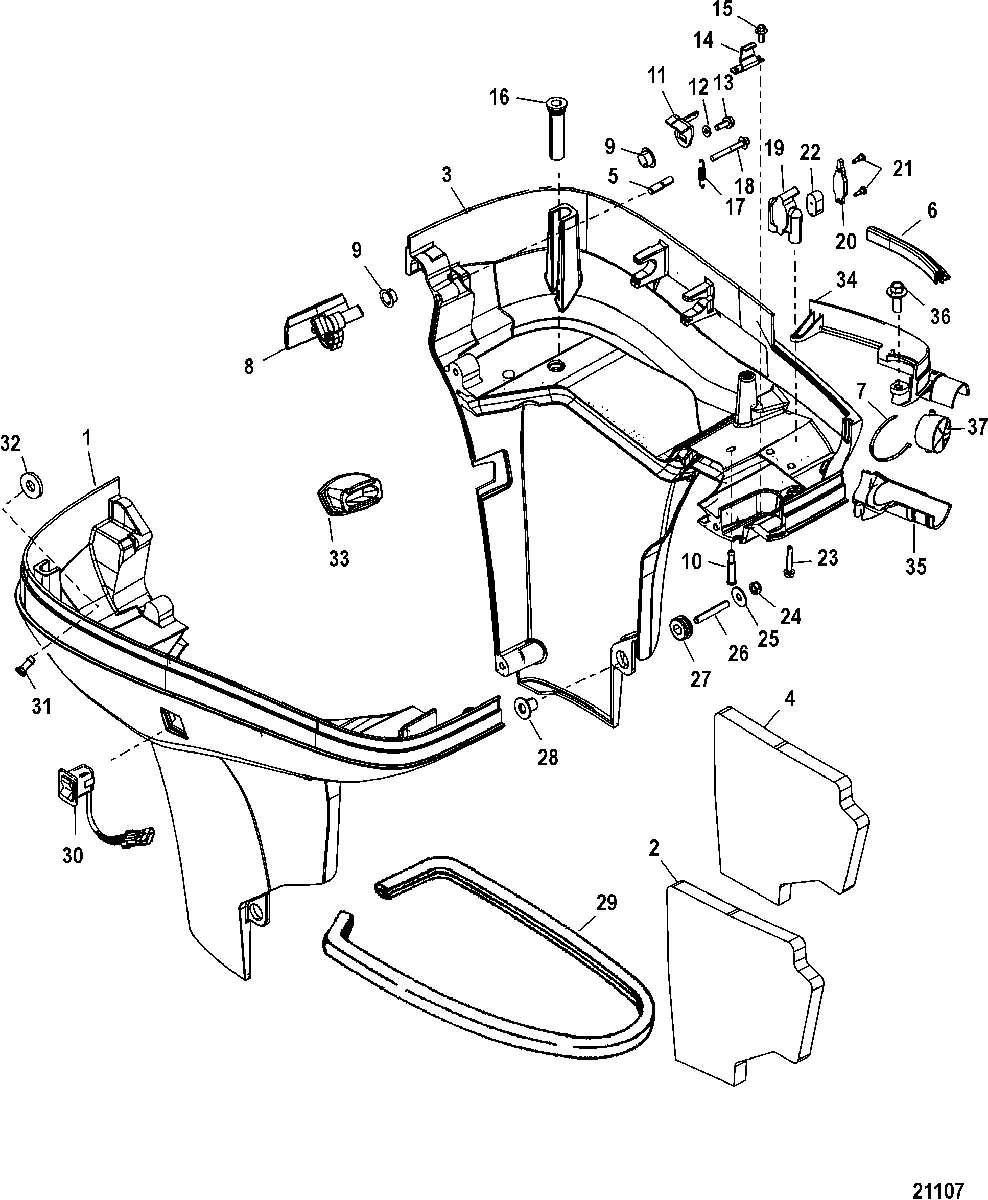

Bottom Cowl для Mercury - 115 DFI (3 CYL.)(1.5L) 1B736885 & Up
-
№АртикулНазвание
-
1100-880775A03 BOTTOM COWL, StarboardBOTTOM COWL, Starboard
-
2NSS NOT SOLD SEPARATE, Sound Blanket - Part of 889720A00NOT SOLD SEPARATE, Sound Blanket - Part of 889720A00
-
3100-880774A03 BOTTOM COWL, PortBOTTOM COWL, Port
-
4889720A00 SOUND BLANKET KITSOUND BLANKET KIT
-
517-885116 PINPIN
-
68M0111278 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
754-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
8880783T LEVER, Cowl LatchLEVER, Cowl Latch
-
923-335891 BUSHINGBUSHING
-
1022-889684002 FITTING, VentFITTING, Vent
-
11884468 CAM, LatchCAM, Latch
-
1212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
14822363T1 RETAINERRETAINER
-
1510-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1621-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
1724-892166001 SPRINGSPRING
-
1810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1919812T03 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2098889 LATCHLATCH
-
2110-42975 DRIVE SCREWDRIVE SCREW
-
2239519 CUPCUP
-
2310-40011154 SCREW, (M8 x 50) Stainless SteelSCREW, (M8 x 50) Stainless Steel
-
2411-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2512-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
2616-8M0034456 STUD, (M8 X 1.25 X 48)STUD, (M8 X 1.25 X 48)
-
2725-855362001 GROMMETGROMMET
-
2823-855364 BUSHINGBUSHING
-
298M0043167 SEAL, Lower Cowl (44.75 Inches)SEAL, Lower Cowl (44.75 Inches)
-
3087-8M0042300 SWITCH, TrimSWITCH, Trim
-
3122-94848 FITTINGFITTING
-
3223-892427 SPACERSPACER
-
33884464 BOOT, Idle ReliefBOOT, Idle Relief
-
348M0000504 CLAMP, UpperCLAMP, Upper
-
358M0000484 CLAMP, LowerCLAMP, Lower
-
3610-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3725-8M0006618 GROMMETGROMMET
-
-37-8M0063411 DECAL, Strip
SN# 1B935261 & BelowDECAL, Strip
SN# 1B935261 & Below -
-37-8M0072982 DECAL, Strip
SN# 1B935262 & UpDECAL, Strip
SN# 1B935262 & Up
