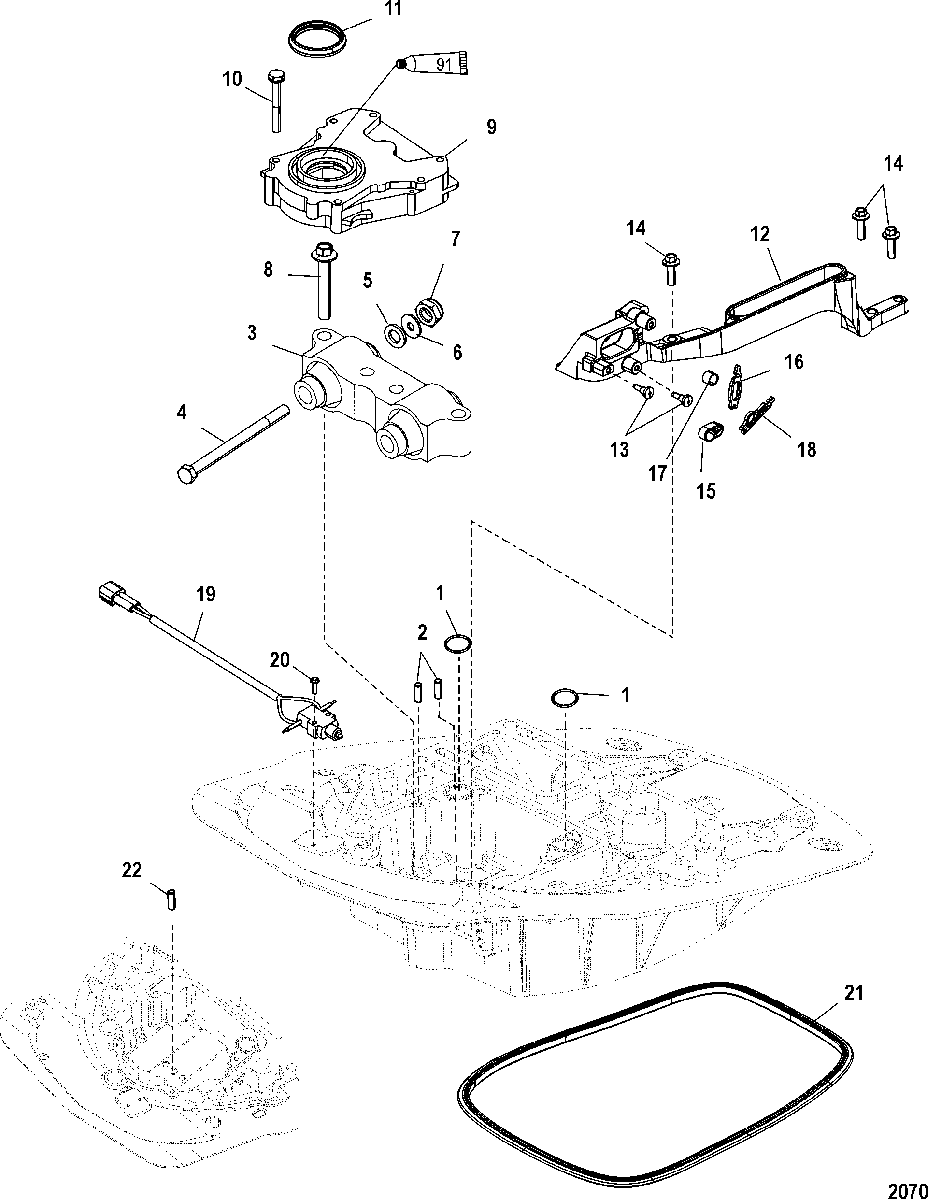

Oil Pump для Mercury - 115 EFI (4-STROKE) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
125-62705001 O-RINGO-RING
-
217-41275M PIN, DowelPIN, Dowel
-
3881900T03 MOUNTMOUNT
-
410-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
512-32834 WASHER, NeopreneWASHER, Neoprene
-
612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
711-896963 NUT, (M12)NUT, (M12)
-
810-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
9858579T3 PUMP, OilPUMP, Oil
-
1010-8M0052670 BOLT, (M6 x 45)BOLT, (M6 x 45)
-
1126-804349 SEALSEAL
-
12888834T01 BRACKET ASSEMBLY, Shift LinkageBRACKET ASSEMBLY, Shift Linkage
-
1310-42975 DRIVE SCREWDRIVE SCREW
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15889530 CUP, Barrel Retainer (LARGE)CUP, Barrel Retainer (LARGE)
-
1698889 LATCHLATCH
-
17824015 CUP, Barrel Retainer, Barrel Retainer (SMALL)CUP, Barrel Retainer, Barrel Retainer (SMALL)
-
18889529 LATCHLATCH
-
1987-879996A2 SWITCHSWITCH
-
2010-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
218M0043168 SEALSEAL
-
2217-23784 PIN, DowelPIN, Dowel
