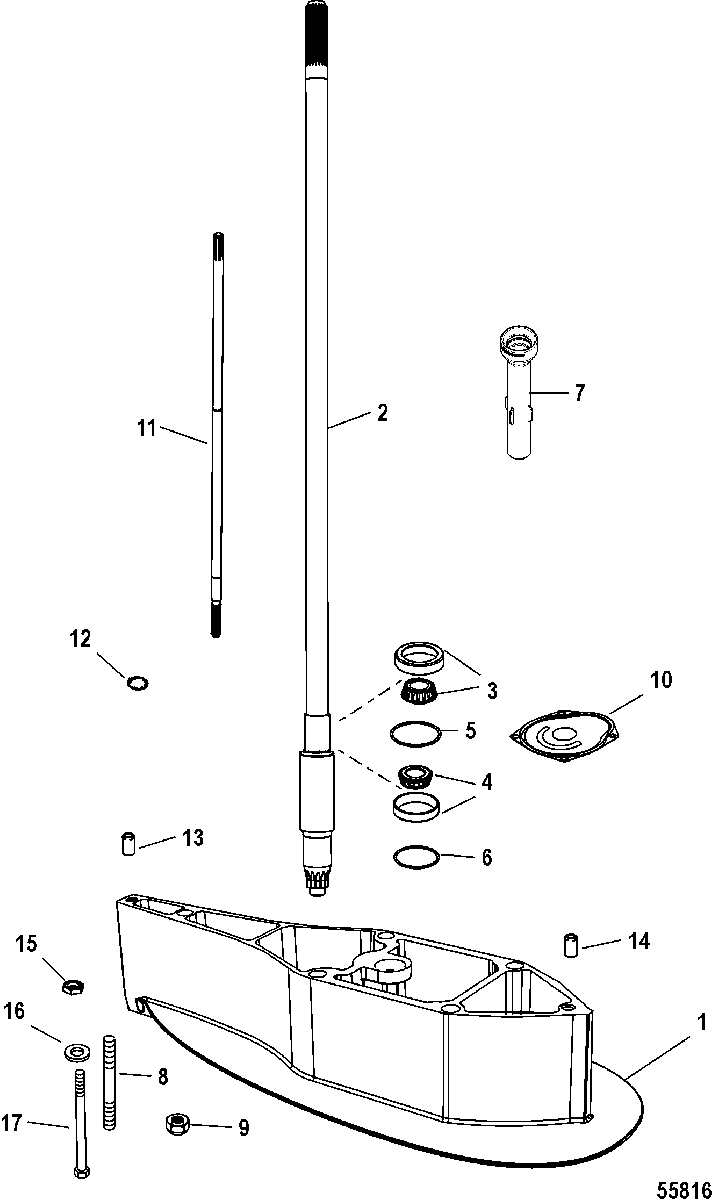

DriveShaft Housing Extension Kit, Command Thrust 2.38:1 для Mercury - 115 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
-8M0105090 EXTENSION KITEXTENSION KIT
-
18M0105088 SPACER, Driveshaft Housing X-LongSPACER, Driveshaft Housing X-Long
-
245-8M0094340 DRIVESHAFT, X-LongDRIVESHAFT, X-Long
-
331-33138A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
431-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
515-8M0063267 SHIM SETSHIM SET
-
615-8M0063268 SHIM SETSHIM SET
-
722-8M0029215 WATER TUBEWATER TUBE
-
816-8M0008047 STUD, (M12 x 179)STUD, (M12 x 179)
-
911-87364 NUTNUT
-
10866233001 FACEPLATEFACEPLATE
-
118M0140439 SHIFT SHAFT, X-LongSHIFT SHAFT, X-Long
-
128M0030784 WASHER, KeyedWASHER, Keyed
-
1317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1417-8M0084244 PIN, DowelPIN, Dowel
-
1511-896895 NUT, (M12)NUT, (M12)
-
1612-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
1710-857137 SCREW, (M12 x 160)SCREW, (M12 x 160)
