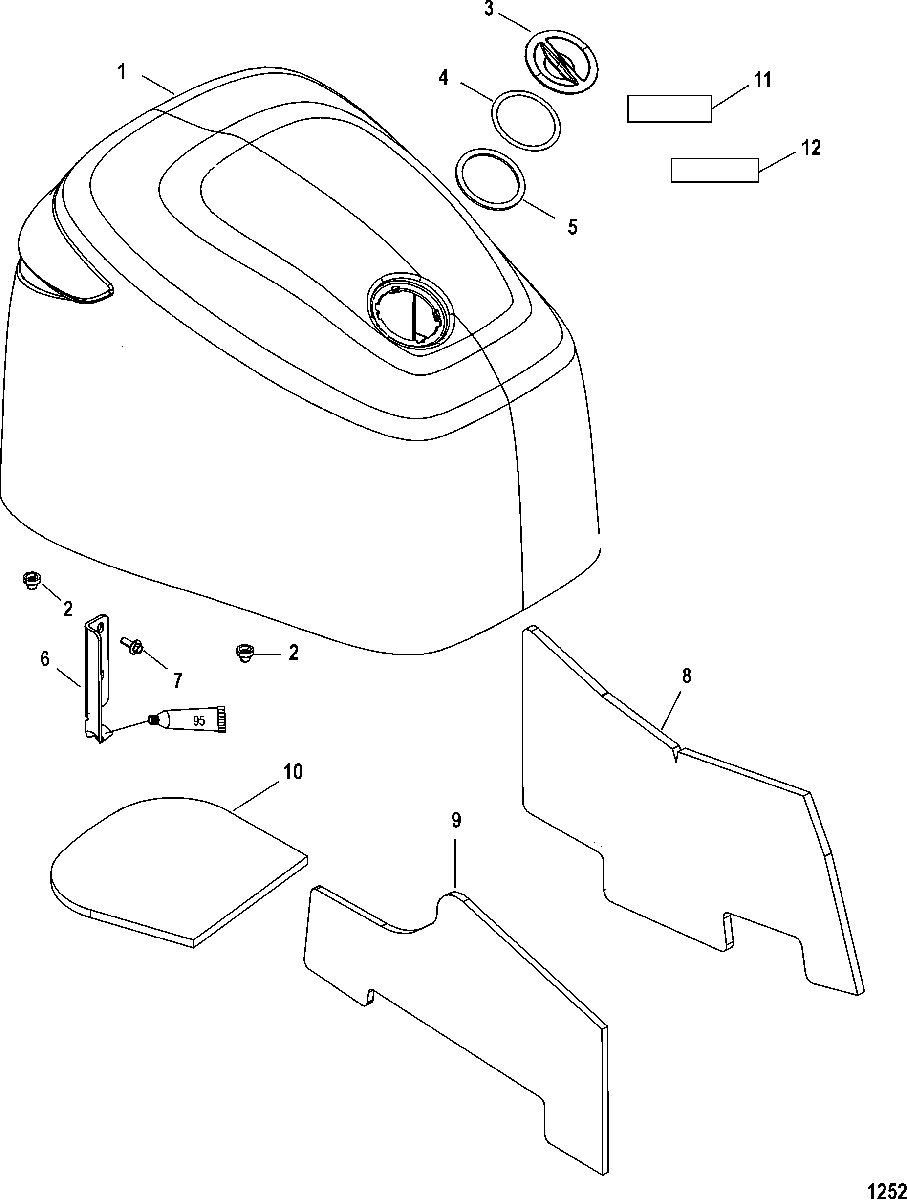

Top Cowl для Mercury - 115 Pro XS (3 CYL.)(1.5L) 1B751825 & Up
-
№АртикулНазвание
-
1100-8M0075373 TOP COWL ASSEMBLY, Mercury, Includes all Decals except HP and Strips
SN# 1B935261 & BelowTOP COWL ASSEMBLY, Mercury, Includes all Decals except HP and Strips
SN# 1B935261 & Below -
1100-8M0083589 TOP COWL ASSEMBLY, Mercury, Includes all Decals except HP and Strips
SN# 1B935262 & UpTOP COWL ASSEMBLY, Mercury, Includes all Decals except HP and Strips
SN# 1B935262 & Up -
1100-8M0075373 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
1100-8M0075375 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
2813546003 MOUNTMOUNT
-
3828716A2 CAPCAP
-
4828352 SEALSEAL
-
58283511 SEALSEAL
-
6892208A01 HOOK KIT, RearHOOK KIT, Rear
-
710-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
8880781A02 SOUND BLANKET KITSOUND BLANKET KIT
-
9NSS NOT SOLD SEPARATE, Sound Blanket-StarboardNOT SOLD SEPARATE, Sound Blanket-Starboard
-
10NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
11NSS NOT SOLD SEPARATE, Decal-Clean Cowl Cling-OnNOT SOLD SEPARATE, Decal-Clean Cowl Cling-On
-
12NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
-37-8M0063412 DECAL SET, 115 Pro XS
SN# 1B935261 & BelowDECAL SET, 115 Pro XS
SN# 1B935261 & Below -
-37-8M0083590 DECAL SET, 115 Pro XS
SN# 1B935262 & UpDECAL SET, 115 Pro XS
SN# 1B935262 & Up -
-37-8M0043699 DECAL M-ICON, Red, 66mmDECAL M-ICON, Red, 66mm
-
-37-8M0043700 M-ICON, Red, 39mm
SN# 1B935262 & UpM-ICON, Red, 39mm
SN# 1B935262 & Up -
-37-8M0115000 DECAL, Horsepower 115
SN# 1B935261 & BelowDECAL, Horsepower 115
SN# 1B935261 & Below -
-37-8M0065743 DECAL, Horsepower 115
SN# 1B935262 & UpDECAL, Horsepower 115
SN# 1B935262 & Up
