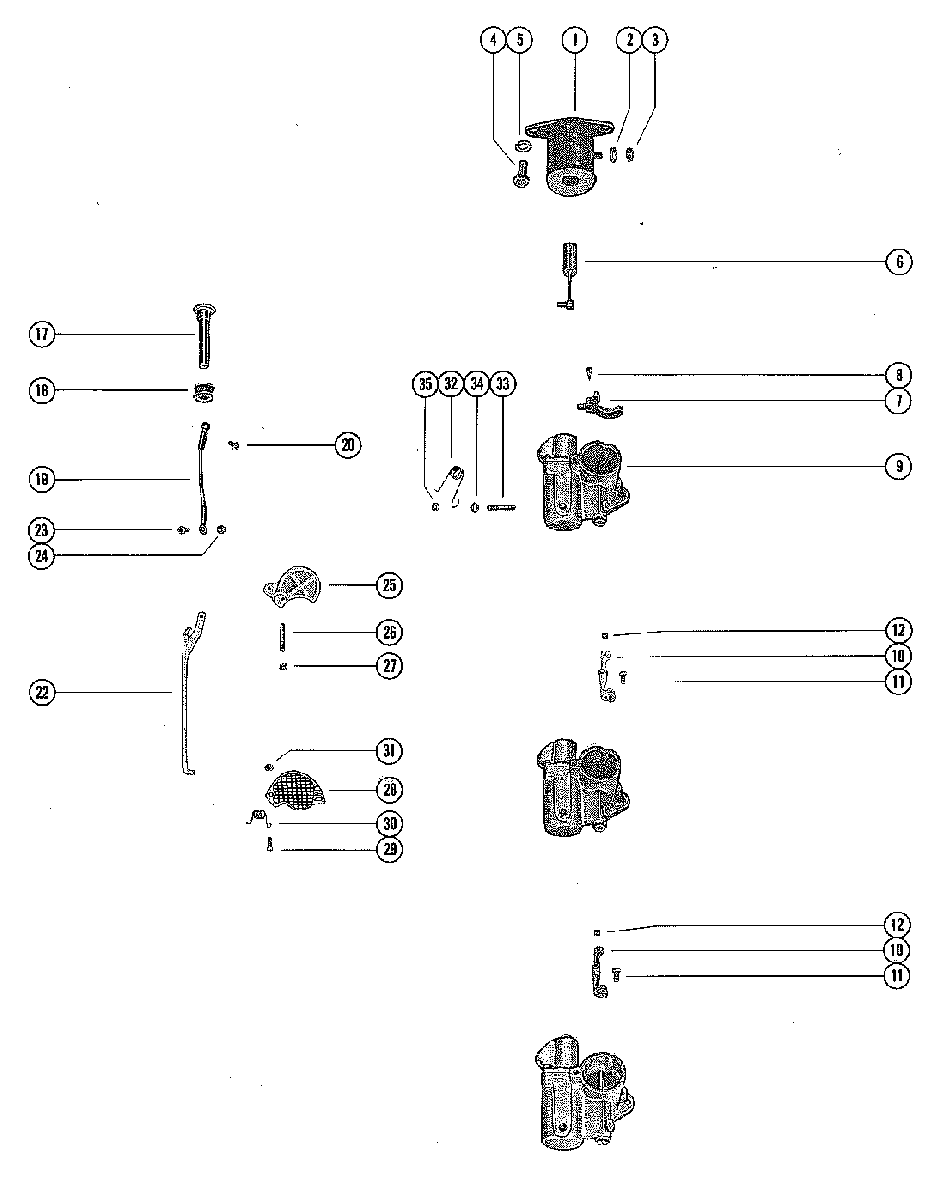

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1150, 115 4855153 THRU 5314655
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
311-68219 NUT, SOLENOID TERMINALNUT, SOLENOID TERMINAL
-
410-25299 SCREW, CHOKE SOLENOID (3/4")SCREW, CHOKE SOLENOID (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
690548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
91368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
1110-66104 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1790242A1 KNOB, SHCOLE RODKNOB, SHCOLE ROD
-
1825-20116 BROMMET, CHOKE RODBROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-77137 SCRE, STRAP TO CHOKE KNOB (5/8")SCRE, STRAP TO CHOKE KNOB (5/8")
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-48591 SCREW, STRAP TO CHILE RDO ( 1/2")SCREW, STRAP TO CHILE RDO ( 1/2")
-
2411-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2548152 SHUTTER, CHOKE-CARBURETORSHUTTER, CHOKE-CARBURETOR
-
2616-69037 STUD, CARBURETOR-CHOKE SHUTTER PIVOTSTUD, CARBURETOR-CHOKE SHUTTER PIVOT
-
2711-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2835-57819 SCREEN ASSEMBLY, FILTER-CARBURETORSCREEN ASSEMBLY, FILTER-CARBURETOR
-
2910-22523 SCREW
LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")SCREW
LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8") -
2910-23015 SCREW
UPPER CARBURETOR FILTER SCREEN TO CARB. (1")SCREW
UPPER CARBURETOR FILTER SCREEN TO CARB. (1") -
3024-57818 SPRING, UPPER FILTER SCREEN SCREWSPRING, UPPER FILTER SCREEN SCREW
-
3111-20110 NUT
CARBURETOR FILTER SCREEN FASTENING SCREWNUT
CARBURETOR FILTER SCREEN FASTENING SCREW -
3224-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
