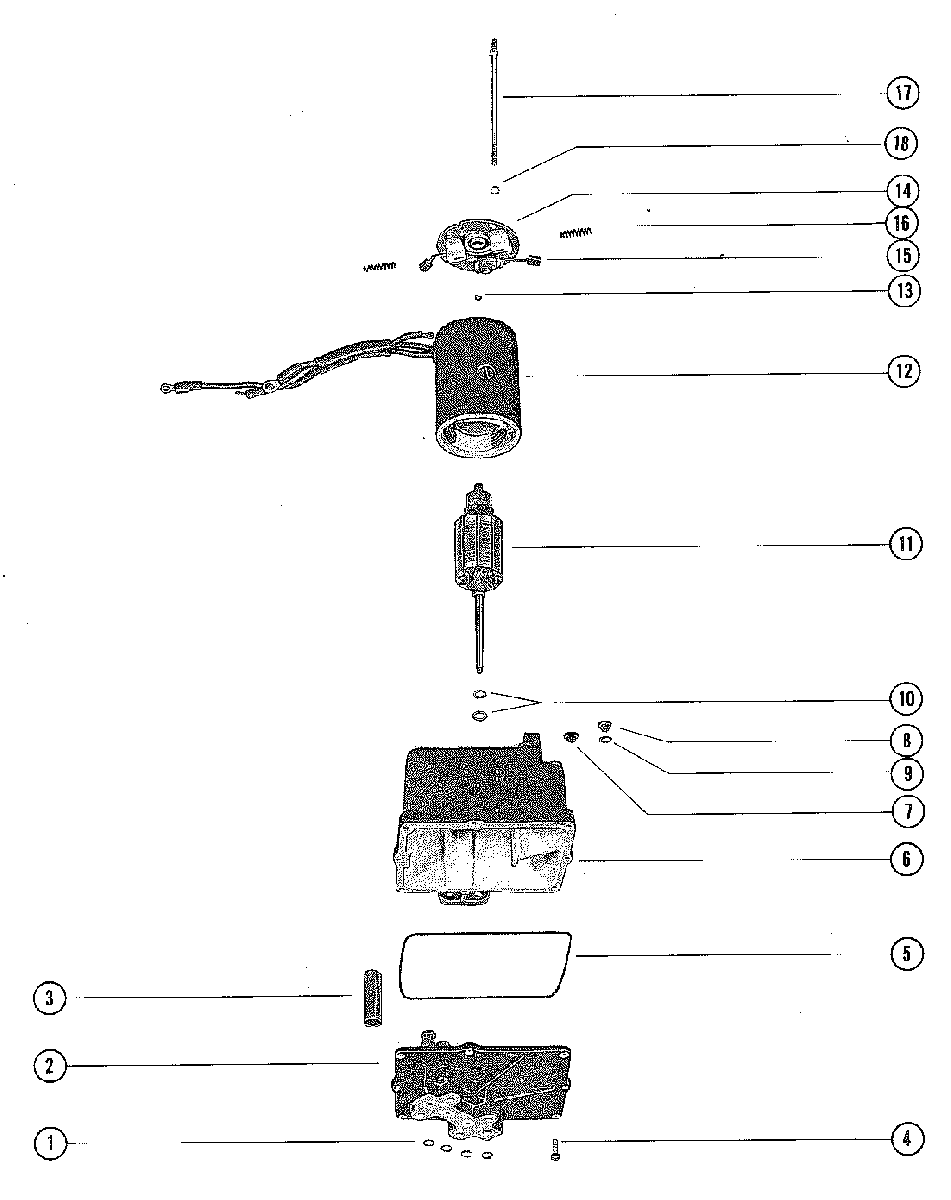

HYDRAULIC PUMP ASSEMBLY для Mercury - 1150, 115 8051950 THRU 8061119
-
№АртикулНазвание
-
-92975A32 HYDAULIC PUMP ASSEMBLY, COMPLETEHYDAULIC PUMP ASSEMBLY, COMPLETE
-
125-48171 "O" RING, HYDRAULIC PUMP"O" RING, HYDRAULIC PUMP
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAN, VALVE BODYCAN, VALVE BODY
-
410-20411 SCREW, VALVE BODY TO RESERVOIRSCREW, VALVE BODY TO RESERVOIR
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
710-62269 SCREW, VENT - HYDAULIC PUMPSCREW, VENT - HYDAULIC PUMP
-
810-79953Q04 SCREW, FILLER - HYDAULIC PUMPSCREW, FILLER - HYDAULIC PUMP
-
912-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
10392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
11392-2943 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
12392-2942 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
13392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
14392-2940 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
15392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
16392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
17392-2938 BOLT SET
THRU - PLATE AND FRAME TO RESERVOIRBOLT SET
THRU - PLATE AND FRAME TO RESERVOIR -
1813-26996 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
