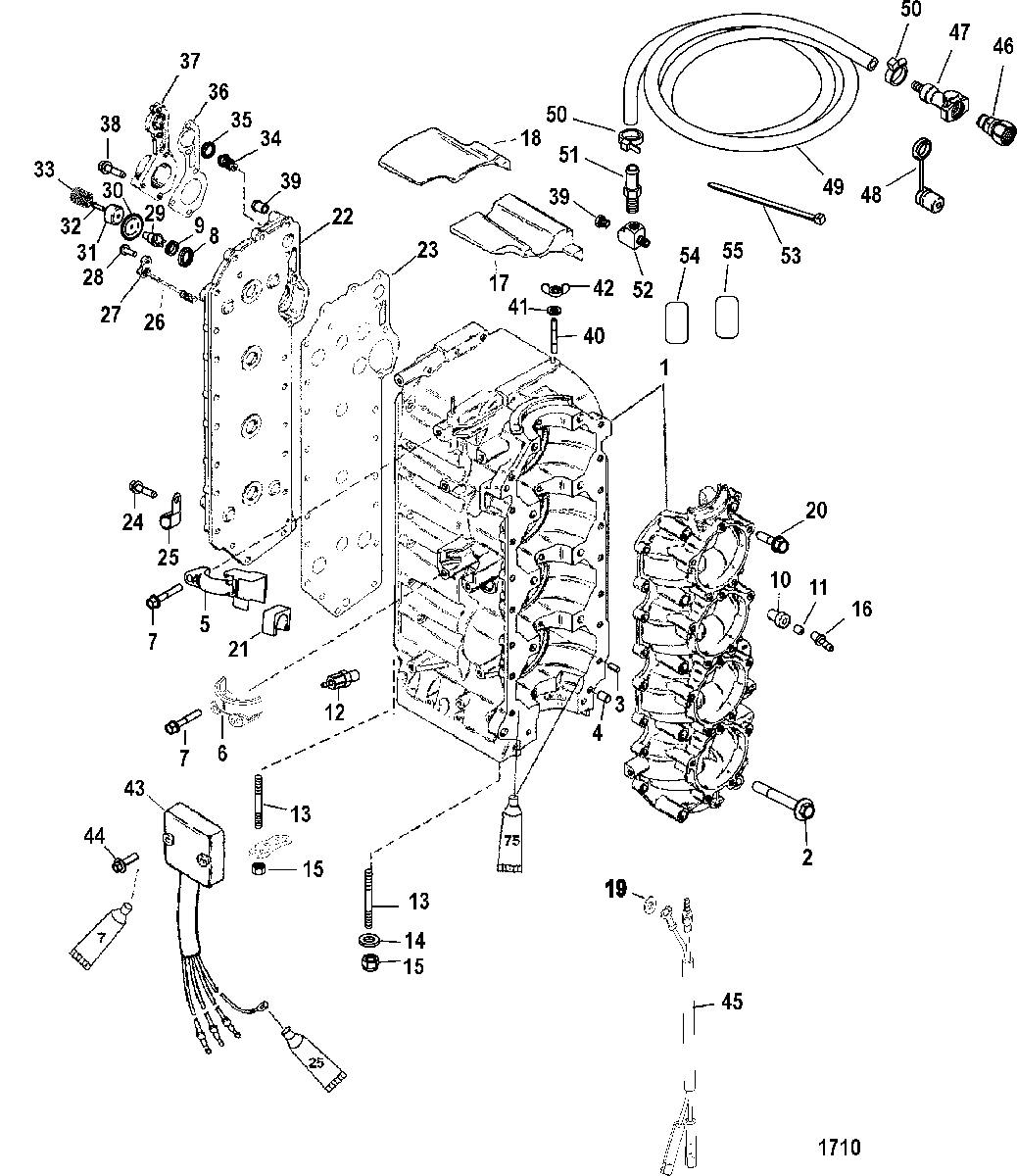

Cylinder Block and Crankcase для Mercury - 125 (4 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
1877-9191T24 CYLINDER BLOCKCYLINDER BLOCK
-
210-4009680 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
317-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
5428842 COVER (TOP)COVER (TOP)
-
676867 COVER (BOTTOM)COVER (BOTTOM)
-
710-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
865848 CARRIERCARRIER
-
925-64872 GROMMETGROMMET
-
10813801A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1121-42657A3 CHECK VALVECHECK VALVE
-
1221-891664 CHECK VALVECHECK VALVE
-
1316-821676A1 STUD KIT (M10)STUD KIT (M10)
-
1412-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1511-40140 NUT, (M10)NUT, (M10)
-
1621-426233 CHECK VALVE (Press-In)CHECK VALVE (Press-In)
-
17824703A1 PLUG KITPLUG KIT
-
18NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
1912-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2010-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2199162001 BOOTBOOT
-
221035-9196A2 COVERCOVER
-
2327-443284 GASKETGASKET
-
2410-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2554-814634 CLAMPCLAMP
-
26787992 SENDER, TemperatureSENDER, Temperature
-
27889733 RETAINERRETAINER
-
2810-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
2986596T POPPET VALVEPOPPET VALVE
-
30648771 DIAPHRAGMDIAPHRAGM
-
3112-94182 WASHERWASHER
-
3210-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
3324-42996 SPRING, (Stainless Steel)SPRING, (Stainless Steel)
-
3414586 THERMOSTATTHERMOSTAT
-
3527-62386001 GASKETGASKET
-
3627-430068 GASKETGASKET
-
378M0047619 COVERCOVER
-
3810-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3810-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3922-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
4016-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
4112-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
4211-816872 WING NUTWING NUT
-
43821889A51 REV LIMITERREV LIMITER
-
4410-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
4584-855212A1 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
-
4622-857175 COUPLING INSERT
(Coastal/Saltwater)COUPLING INSERT
(Coastal/Saltwater) -
4722-857176 COUPLING BODY
(Coastal/Saltwater)COUPLING BODY
(Coastal/Saltwater) -
4819-858240 CAP
(Coastal/Saltwater)CAP
(Coastal/Saltwater) -
4932-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Coastal/Saltwater)TUBING, (.312) (70.00 Inches Bulk)
(Coastal/Saltwater) -
5054-816311T TIE STRAP, (8.00 Inches)
(Coastal/Saltwater)TIE STRAP, (8.00 Inches)
(Coastal/Saltwater) -
5122-857219 FITTING
(Coastal/Saltwater)FITTING
(Coastal/Saltwater) -
5222-286241 FITTING
(Coastal/Saltwater)FITTING
(Coastal/Saltwater) -
5354-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
54NSS NOT SOLD SEPARATE, Decal-SerializationNOT SOLD SEPARATE, Decal-Serialization
-
55NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
