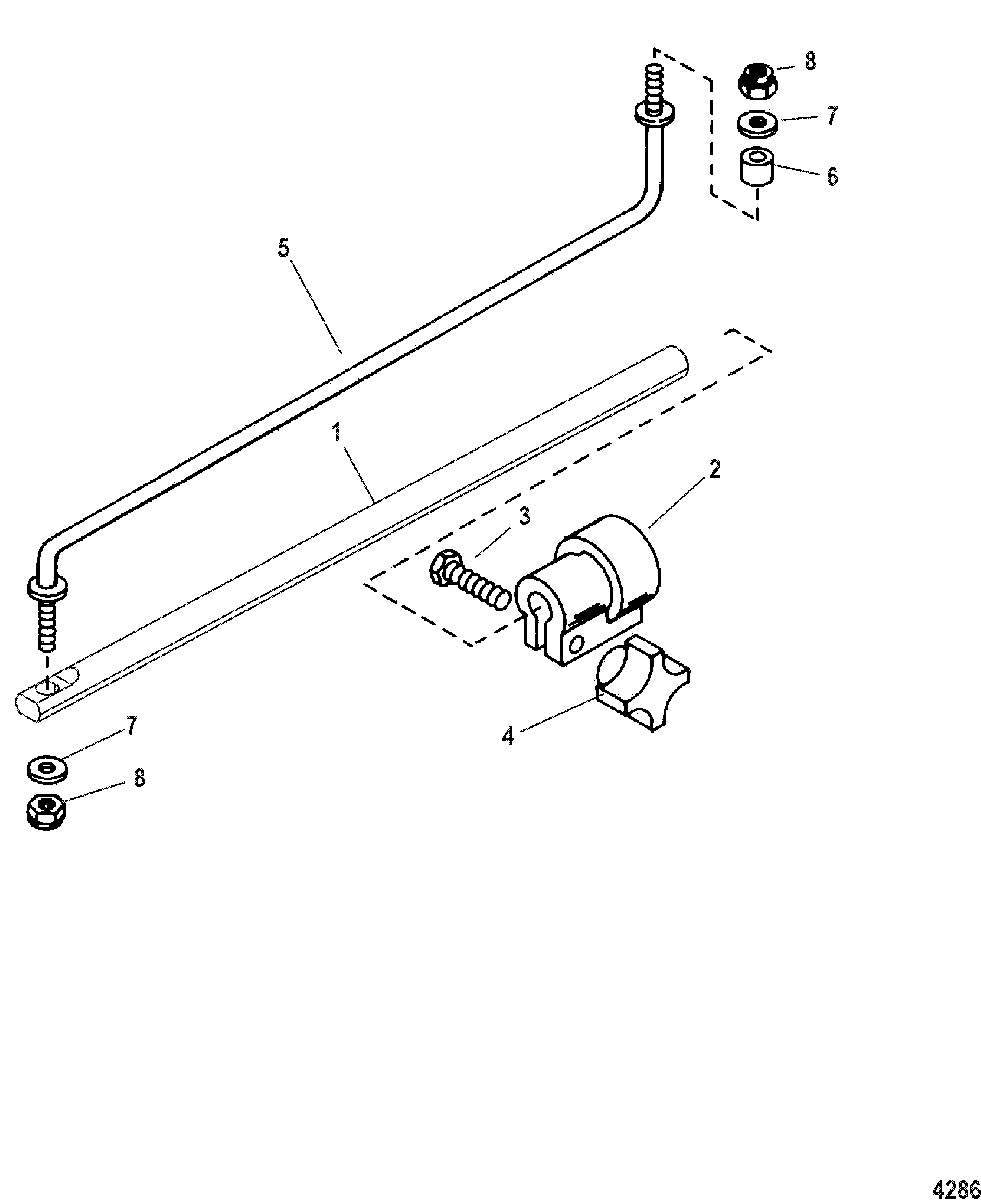

Co-Pilot для Mercury - 125 (4 CYL.) 9793577 THRU 0P016999
-
№АртикулНазвание
-
-56-52148A7 CO-PILOT ASSEMBLYCO-PILOT ASSEMBLY
-
1521481 PILOT RODPILOT ROD
-
211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
310-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
412-77674 WASHERWASHER
-
5821621 KNOB, ProngKNOB, Prong
-
6873491 RODROD
-
723-521512 BUSHINGBUSHING
-
812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
911-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
