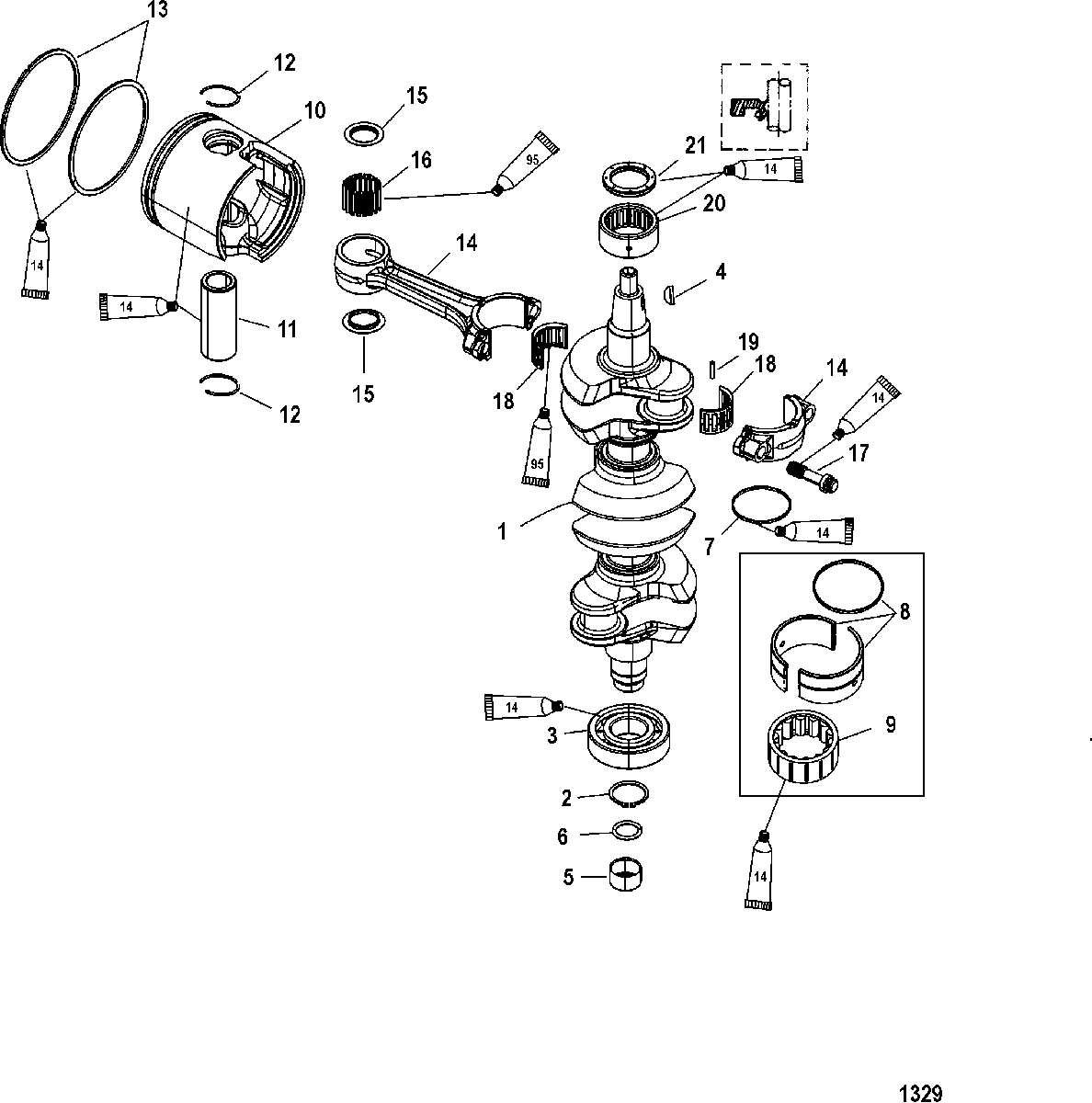

Crankshaft, Pistons and Connecting Rods для Mercury - 125 DFI (3 CYL.)(1.5L) 1B736885 & Up
-
№АртикулНазвание
-
1400-879633T01 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
253-880119 RING, RetainingRING, Retaining
-
330-43011T BEARING, Ball, LowerBEARING, Ball, Lower
-
428-91800 KEY, WoodruffKEY, Woodruff
-
5786611 WEAR SLEEVEWEAR SLEEVE
-
625-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
739-8M0071643 RING, SealRING, Seal
-
831-879848A02 BEARING ASSEMBLYBEARING ASSEMBLY
-
9NSS NOT SOLD SEPARATE, Needle BearingNOT SOLD SEPARATE, Needle Bearing
-
10700-879858T08 PISTON ASSEMBLY
StandardPISTON ASSEMBLY
Standard -
10700-896961A02 PISTON ASSEMBLY
.015 OversizePISTON ASSEMBLY
.015 Oversize -
10700-896962A02 PISTON ASSEMBLY
.030 OversizePISTON ASSEMBLY
.030 Oversize -
11NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1240-841202 RINGRING
-
1339-827179A12 RING SET, Piston
StandardRING SET, Piston
Standard -
1339-875252A12 RING SET, Piston
.015 OversizeRING SET, Piston
.015 Oversize -
1339-875257A12 RING SET, Piston
.030 OversizeRING SET, Piston
.030 Oversize -
14600-888470T08 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1512-88263 THRUST WASHERTHRUST WASHER
-
1629-88258001 BEARING, NeedleBEARING, Needle
-
1710-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1831-844338A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
19NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
2031-879853A01 BEARING ASSEMBLY, Roller, UpperBEARING ASSEMBLY, Roller, Upper
-
2126-879635 SEAL, OilSEAL, Oil
-
-27-879855A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
-895233A07 POWERHEAD ASSEMBLY, 75 DFI
75 HorsepowerPOWERHEAD ASSEMBLY, 75 DFI
75 Horsepower -
-891767A07 POWERHEAD ASSEMBLY, 90/115 DFI
90/115/125/Jet 80POWERHEAD ASSEMBLY, 90/115 DFI
90/115/125/Jet 80
