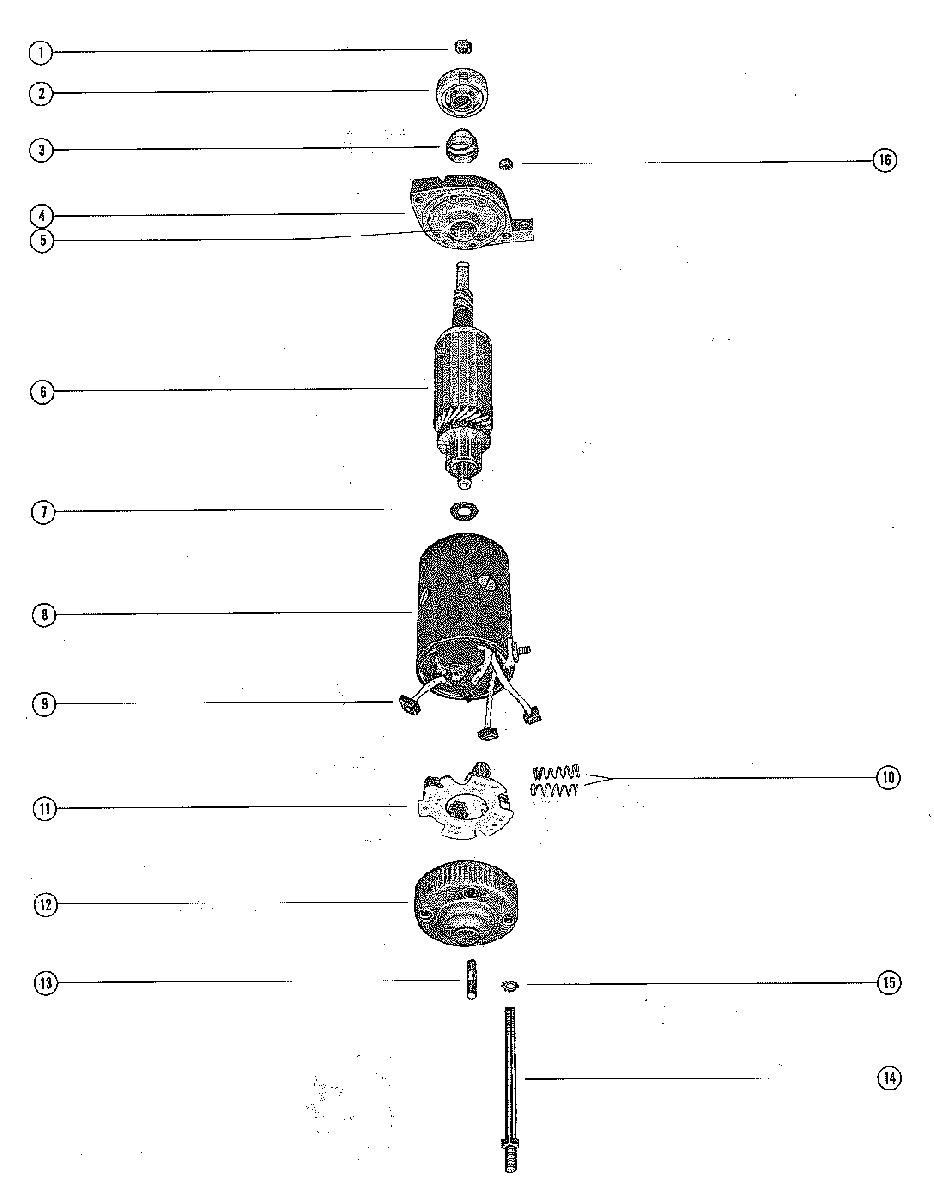

STARTER MOTOR ASSEMBLY для Mercury - 1250BP 2641855 THRU 3253111
-
№АртикулНазвание
-
-50-55304A1 STARTER MOTOR ASSEMBLY, COMPLETE (PRESTOLITE)STARTER MOTOR ASSEMBLY, COMPLETE (PRESTOLITE)
-
111-35053 NUT, PINION STOP COLLARNUT, PINION STOP COLLAR
-
232406 MOTOR DRIVEMOTOR DRIVE
-
324-32407 SPRING, TENSION - MOTOR DRIVESPRING, TENSION - MOTOR DRIVE
-
4392-3693 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
5392-2518 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
6392-3906 ARMATUREARMATURE
-
7392-2523 PACKAGE, ARMATURE THRUST WASHERPACKAGE, ARMATURE THRUST WASHER
-
8392-3407 FRAME AND FIELD ASSEMBLYFRAME AND FIELD ASSEMBLY
-
9392-2521 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
10392-2514 SPRING SET, BRUSH (2 SPRINGS PER SET)SPRING SET, BRUSH (2 SPRINGS PER SET)
-
11392-2519 BRUSH PLATE AND HOLDER ASSEMBLYBRUSH PLATE AND HOLDER ASSEMBLY
-
12392-3692 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
-
--392-2516 BUSHING, COMMUTATOR END CAPBUSHING, COMMUTATOR END CAP
-
1316-64936 STUD, STARTER MOTOR MOUNTING (1 3/16")STUD, STARTER MOTOR MOUNTING (1 3/16")
-
14392-3694 BOLT, THRU - END CAP TO END PLATE (5/16 -13)BOLT, THRU - END CAP TO END PLATE (5/16 -13)
-
1513-26993 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
-
1611-82670911 NUT, THRU BOLTNUT, THRU BOLT
