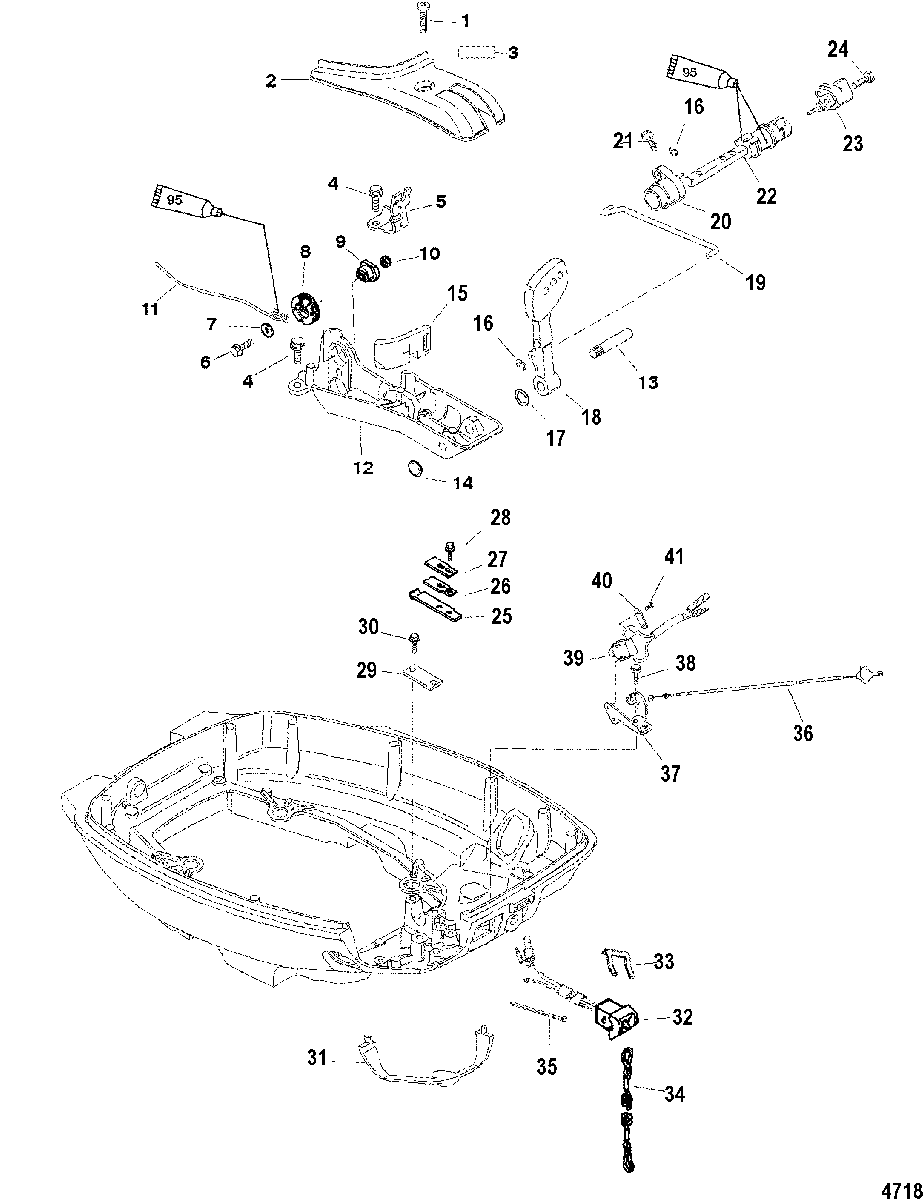

Throttle/Shift Linkage(Handle Models) для Mercury - 13.5 (4-STROKE) (International) 0P401000 & Up
-
№АртикулНазвание
-
110-8248291 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2856905 COVERCOVER
-
3NSS NOT SOLD SEPARATE, Decal (F,N,R)NOT SOLD SEPARATE, Decal (F,N,R)
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
5856909 BRACKETBRACKET
-
610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
712-4002316 WASHERWASHER
-
8825787A2 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
923-825788 BUSHINGBUSHING
-
1011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
11882818 LINK, ThrottleLINK, Throttle
-
12856904T01 SHIFT PLATFORM KITSHIFT PLATFORM KIT
-
138569111 SHAFTSHAFT
-
1419-48323 PLUGPLUG
-
15856910 SEALSEAL
-
1653-857213 RING, RetainingRING, Retaining
-
1713-69150 WAVE WASHERWAVE WASHER
-
18856906 SHIFT HANDLESHIFT HANDLE
-
19856908 SHIFT LINKSHIFT LINK
-
20856907 LEVER, ShiftLEVER, Shift
-
2110-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
22852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot) -
22852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot) -
23855609 LEVER, Interlock
(Bigfoot)LEVER, Interlock
(Bigfoot) -
23826063 LEVER, Interlock
(Non-Bigfoot)LEVER, Interlock
(Non-Bigfoot) -
2410-40011111 SCREW, (M5 x 35) Stainless SteelSCREW, (M5 x 35) Stainless Steel
-
2524-824992 SPRING, DetentSPRING, Detent
-
2624-824993 SPRING, BackingSPRING, Backing
-
27824994 SPRING, PlateSPRING, Plate
-
2810-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
298280471 STRAPSTRAP
-
3010-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
318354191 SEALSEAL
-
3287-11083A30 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
338M0032846 RETAINER, BrassRETAINER, Brass
-
348M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
3554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
36852472 WIREWIRE
-
37855888F BRACKETBRACKET
-
3810-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
3987-8M0052929 SWITCH ASSEMBLY
(Electric)SWITCH ASSEMBLY
(Electric) -
40824923 PLATE
(Electric)PLATE
(Electric) -
4110-82470620 SCREW, (M3.5 x 20)
(Electric)SCREW, (M3.5 x 20)
(Electric)
