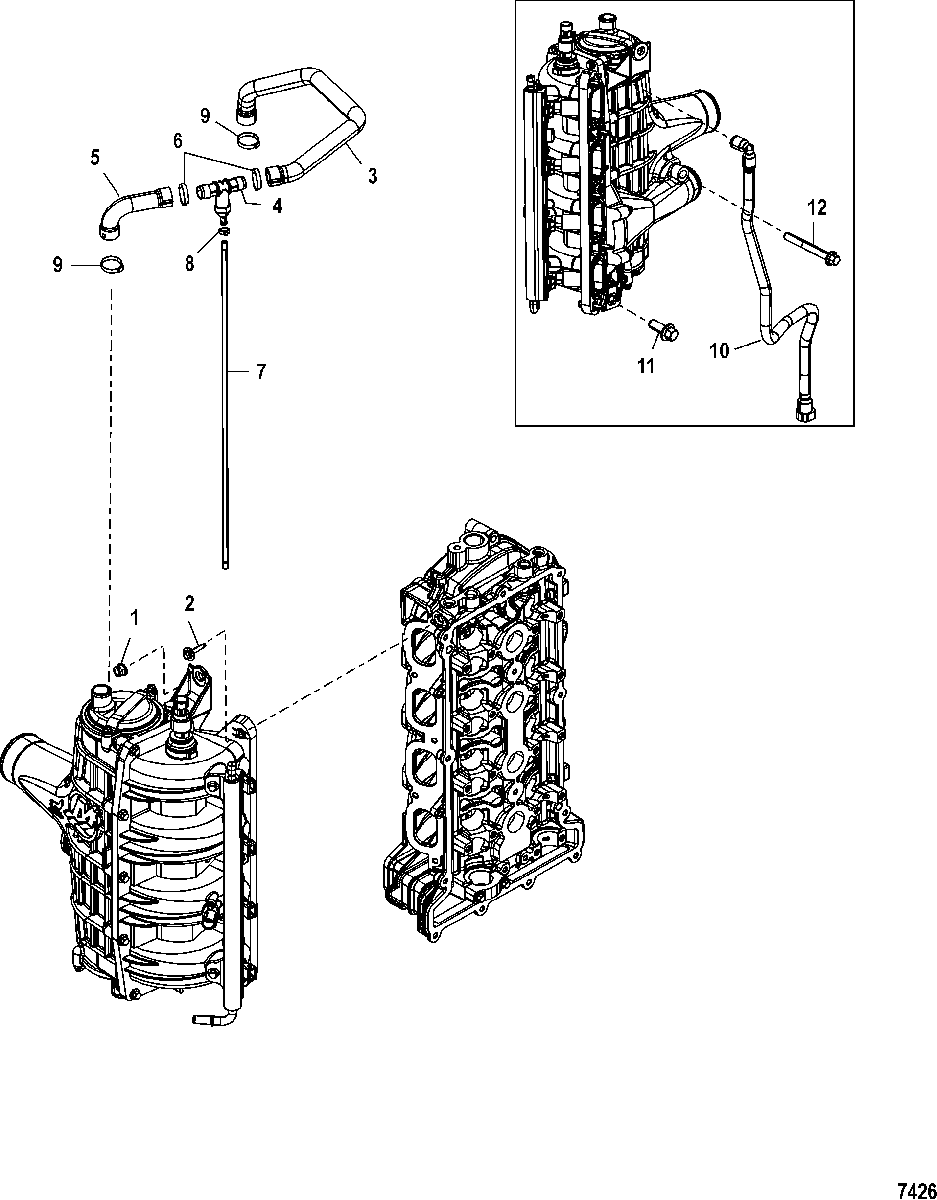

Charge Cooler/Intake Manifold Hose Routings для Mercury - 135 VERADO (4-STROKE)(4 CYL.) 0P419487 THRU 0P464487
-
№АртикулНазвание
-
111-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
210-8M0048051 SCREWSCREW
-
-NSS NOT SOLD SEPARATE, Hose Assembly-CompleteNOT SOLD SEPARATE, Hose Assembly-Complete
-
332-896255 HOSEHOSE
-
422-8M6003382 FITTING ASSEMBLY, FlushingFITTING ASSEMBLY, Flushing
-
532-889592001 HOSEHOSE
-
654-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
732-896257 HOSEHOSE
-
854-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
954-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
1032-8M0087088 HOSE, Manifold Reference-UpperHOSE, Manifold Reference-Upper
-
1110-8M0103821 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
1210-88552765 SCREW, (M10 x 65)SCREW, (M10 x 65)
