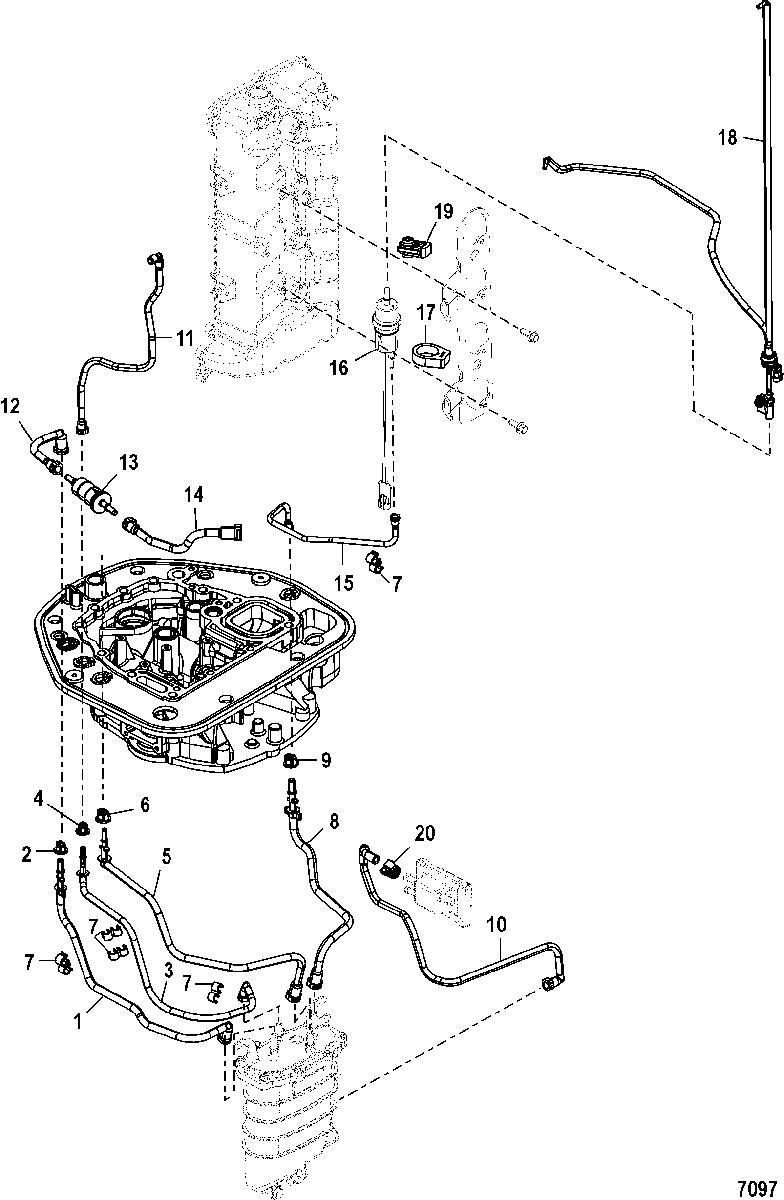

Adaptor Plate Hose Routings для Mercury - 135 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up
-
№АртикулНазвание
-
132-8M0087072 HOSE
SN# 1B792494 & BelowHOSE
SN# 1B792494 & Below -
132-8M0087072 HOSE
SN# 1B792495 & UpHOSE
SN# 1B792495 & Up -
225-884546 GROMMETGROMMET
-
332-8M0087082 HOSEHOSE
-
425-884546 GROMMETGROMMET
-
532-8M0087074 HOSEHOSE
-
625-884546 GROMMETGROMMET
-
7888523001 CLIPCLIP
-
832-8M0087084 HOSE
SN# 1B792494 & BelowHOSE
SN# 1B792494 & Below -
832-8M0087084 HOSE
SN# 1B792495 & UpHOSE
SN# 1B792495 & Up -
925-884546 GROMMETGROMMET
-
1032-8M0087071 HOSE, WaterHOSE, Water
-
1132-8M0087073 HOSE, To CACHOSE, To CAC
-
1232-8M0087068 HOSE
SN# 1B792494 & BelowHOSE
SN# 1B792494 & Below -
1232-8M0087068 HOSE
SN# 1B792495 & UpHOSE
SN# 1B792495 & Up -
1335-879885Q FILTER, FuelFILTER, Fuel
-
1432-8M0087089 HOSE, To Fuel Rail
SN# 1B792494 & BelowHOSE, To Fuel Rail
SN# 1B792494 & Below -
1432-8M0087089 HOSE, To Fuel Rail
SN# 1B792495 & UpHOSE, To Fuel Rail
SN# 1B792495 & Up -
1532-8M0087073 HOSEHOSE
-
16884545A02 CANISTER ASSEMBLYCANISTER ASSEMBLY
-
1725-897434 GROMMETGROMMET
-
188M0126939 VENT ASSEMBLY, PurgeVENT ASSEMBLY, Purge
-
1925-897452 GROMMETGROMMET
-
2054-815504104 CLAMP, Worm GearCLAMP, Worm Gear
