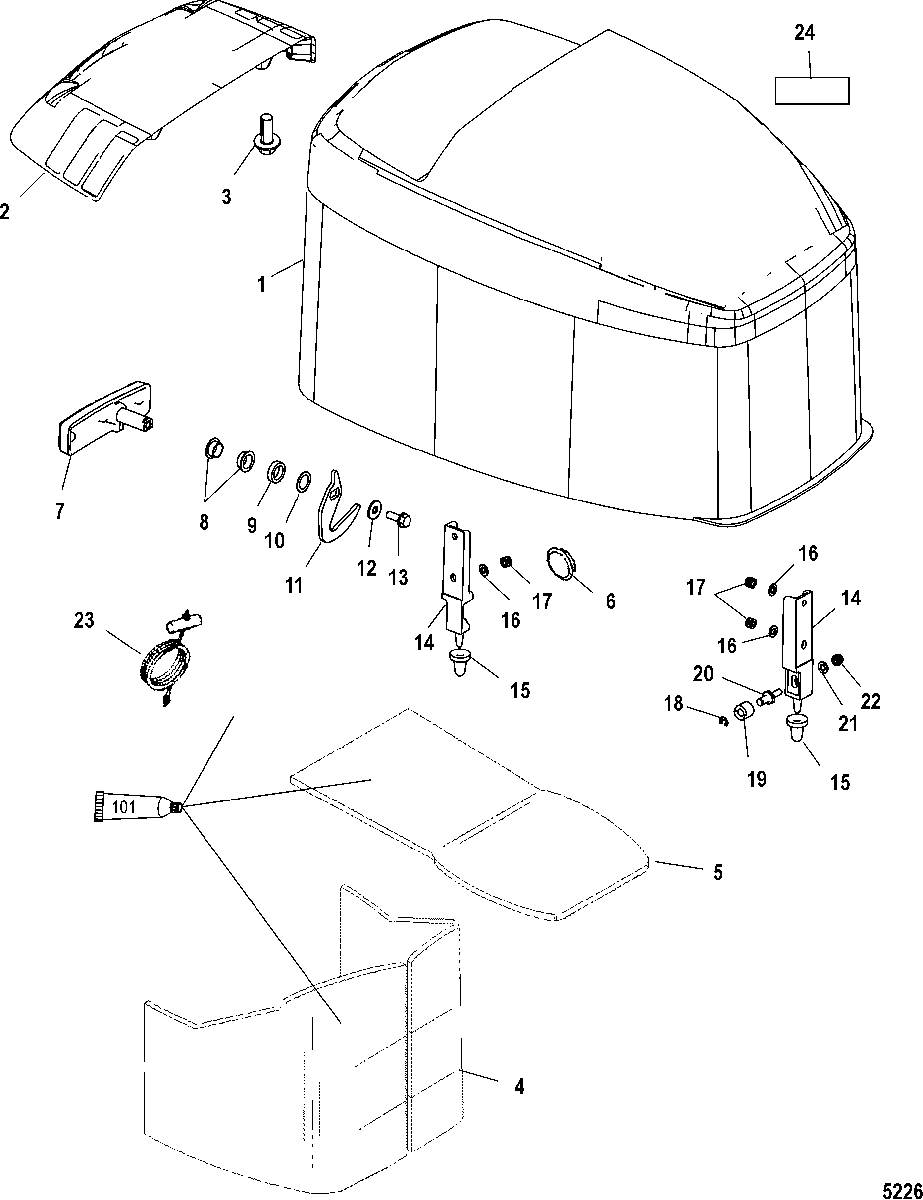

Top Cowl для Mercury - 140 JET 0G960500 THRU 0T178499
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, Black
(BLACK)TOP COWL ASSEMBLY, Black
(BLACK) -
14021-827328T8 TOP COWL ASSEMBLY, Silver
(SILVER)TOP COWL ASSEMBLY, Silver
(SILVER) -
2821256T03 INLET, Air - Black
(BLACK)INLET, Air - Black
(BLACK) -
2821256T2 INLET, Air - Silver
(SILVER)INLET, Air - Silver
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
619-823865 CAP PLUGCAP PLUG
-
7831207A16 HANDLE ASSEMBLY, BlackHANDLE ASSEMBLY, Black
-
823-812707 BUSHINGBUSHING
-
923-831214 SPACERSPACER
-
1013-12134 WASHER, WaveWASHER, Wave
-
118M0001081 CAM, Latch Shaft
SN# 0T800999 & BelowCAM, Latch Shaft
SN# 0T800999 & Below -
118M0001081 CAM
SN# 0T801000 & UpCAM
SN# 0T801000 & Up -
1212-4002316 WASHERWASHER
-
1310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
148M0036792 BRACKET, FrontBRACKET, Front
-
15815477 BUMPER, LatchBUMPER, Latch
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1853-8237951 RING, RetainingRING, Retaining
-
19815263 ROLLERROLLER
-
208155381 PIN, RollPIN, Roll
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2347341A11 ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)
-
24NSS NOT SOLD SEPARATE, Decal-Starting ProcedureNOT SOLD SEPARATE, Decal-Starting Procedure
Все узлы модели:
- Accessories
- Attenuator Plate and Throttle Levers
- Bleed System
- Bottom Cowl
- Carburetor
- CDM Mounting
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Engine Gasket Set Components
- Exhaust Manifold and Exhaust Plate
- Flywheel/Starter Motor
- Fuel Lines
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Instrumentation
- Jet Components
- Jet Pump Assembly
- Oil Injection Components
- Power Trim Components (Cast Pump Housing
- Power Trim Components (Removeable Pump Housing)
- Power Trim Motor (Removeable Pump Housing)
- Reed Block and Cylinder Head
- Service/Support Material
- Solenoid Mounting
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Tools
- Tools
- • Top Cowl
- Transom Brackets
