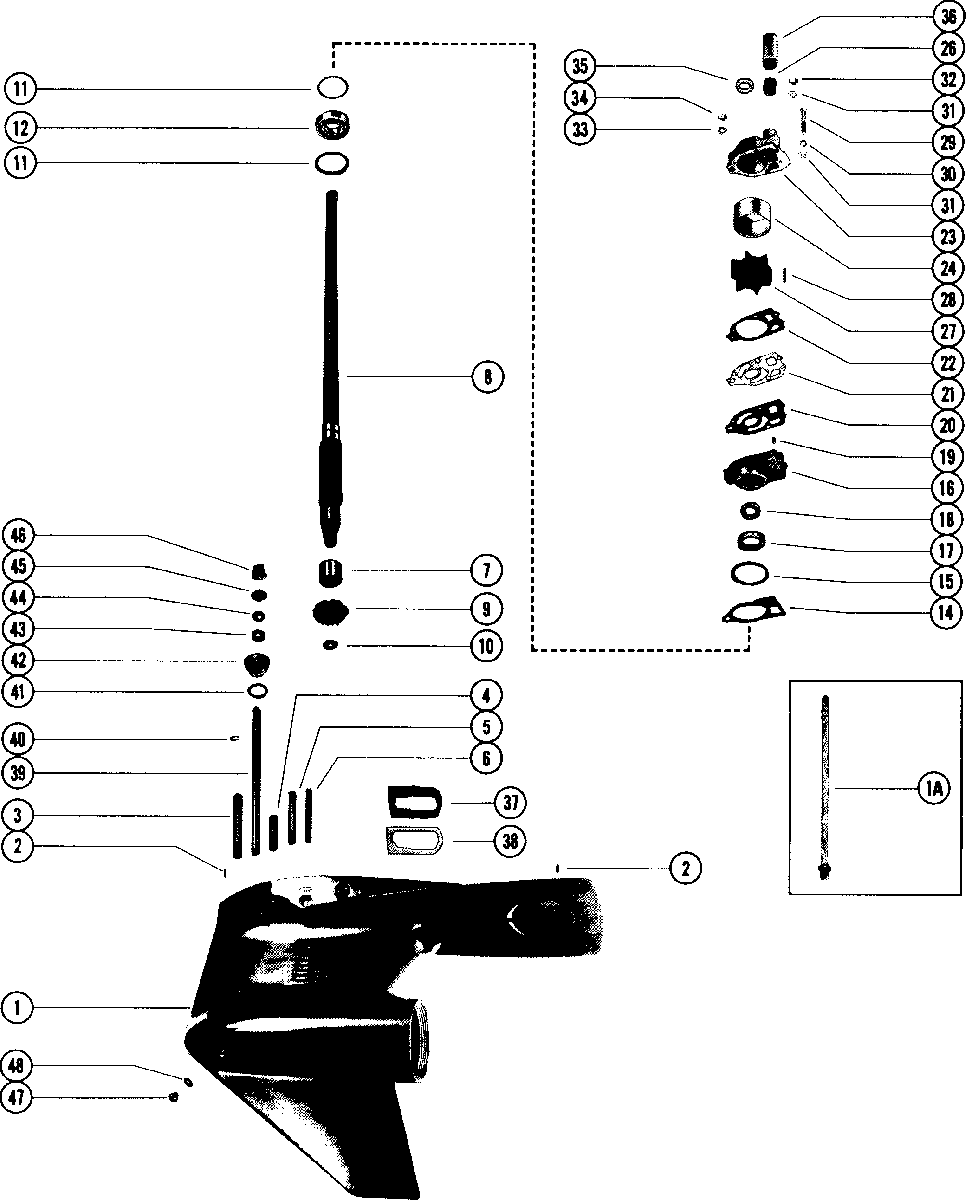

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 140 8066065 AND UP

№

Артикул

Название
-

1655-7333T24 GEAR HOUSING ASS'Y COMP. (SEE NOTE BELOW)

GEAR HOUSING ASS'Y COMP. (SEE NOTE BELOW)

0 ₽
1

1655-7333T23 GEAR HOUSING ASS'Y

GEAR HOUSING ASS'Y

39 360 ₽
1A

22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER

CONNECTOR ASSEMBLY, SPEEDOMETER

660 ₽
2

17-8M0084726 DOWEL PIN, GEAR HOUSING LOCATING

DOWEL PIN, GEAR HOUSING LOCATING

370 ₽
3

16-57921 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4")

STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4")

780 ₽
4

16-8M0133358 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")

STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")

0 ₽
5

16-8M0034463 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")

STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")

670 ₽
6

16-306671 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")

STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")

0 ₽
7

31-32898T BEARING, ROLLER - DRIVE SHAFT

BEARING, ROLLER - DRIVE SHAFT

6 110 ₽
8

45-42646 DRIVE SHAFT

DRIVE SHAFT

0 ₽

43-68548T3 GEAR, PINION - DRIVE SHAFT

GEAR, PINION - DRIVE SHAFT

Производитель

Mercury-Mercruiser

10

11-35921 NUT, PINION GEAR TO DRIVE SHAFT

NUT, PINION GEAR TO DRIVE SHAFT

1 020 ₽
11

23-70412 SPACER, BALL BEARING TO BASE

SPACER, BALL BEARING TO BASE

0 ₽
11

15-57007A1 SHIM, BALL BEARING TO BASE

SHIM, BALL BEARING TO BASE

800 ₽
12

31-69220T ROLLER BEARING, DRIVE SHAFT

ROLLER BEARING, DRIVE SHAFT

10 920 ₽
14

27-856704 GASKET, WATER PUMP BASE

GASKET, WATER PUMP BASE

200 ₽
15

25-33145 "O" RING, WATER PUMP BASE

"O" RING, WATER PUMP BASE

490 ₽
16

46-96146A5 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY

5 800 ₽
17

26-94038 OIL SEAL, WATER PUMP BASE

OIL SEAL, WATER PUMP BASE

2 130 ₽
18

26-16977 OIL SEAL, WATER PUMP BASE

OIL SEAL, WATER PUMP BASE

1 550 ₽
19

17-8M0084627 DOWEL PIN
WATER PUMP BASE TO WATER PUMP BODY

DOWEL PIN
WATER PUMP BASE TO WATER PUMP BODY

190 ₽
20

27-8M0090319 GASKET, LOWER
WATER PUMP BASE TO FACE PLATE

GASKET, LOWER
WATER PUMP BASE TO FACE PLATE

280 ₽
21

324351 PLATE, FACE
WATER PUMP BASE TO WATER PUMP BODY

PLATE, FACE
WATER PUMP BASE TO WATER PUMP BODY

650 ₽
22

27-858524 GASKET, UPPER
FACE PLATE TO WATER PUMP BODY

GASKET, UPPER
FACE PLATE TO WATER PUMP BODY

260 ₽
23

46-96148T1 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY

6 130 ₽
24

48752T INSERT, WATER PUMP BODY

INSERT, WATER PUMP BODY

860 ₽
26

26-38970 SEAL, RUBBER - WATER INLET TUBE

SEAL, RUBBER - WATER INLET TUBE

340 ₽
27

47-89984T4 IMPELLER, WATER PUMP

IMPELLER, WATER PUMP

2 670 ₽
28

28-8M0032834 KEY, IMPELLER DRIVE

KEY, IMPELLER DRIVE

330 ₽
29

10-30720 SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4")

SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4")

0 ₽
30

13-26992 LOCKWASHER, WATER PUMP BODY SCREW

LOCKWASHER, WATER PUMP BODY SCREW

70 ₽
31

12-29245 WASHER
WATER PUMP BODY FASTENING SCREW AND STUD

WASHER
WATER PUMP BODY FASTENING SCREW AND STUD

120 ₽
32

11-35888 NUT, WATER PUMP FASTENING SCREW

NUT, WATER PUMP FASTENING SCREW

490 ₽
33

12-36001 WASHER, WATER PUMP BODY FASTENING STUD

WASHER, WATER PUMP BODY FASTENING STUD

100 ₽
34

11-82670911 NUT, WATER PUMP BODY FASTENING STUD

NUT, WATER PUMP BODY FASTENING STUD

370 ₽
35

25-30271 RING, RUBBER
CENTRIFUGAL SLINGER (DRIVE SHAFT)

RING, RUBBER
CENTRIFUGAL SLINGER (DRIVE SHAFT)

150 ₽
36

23-29804T SLEEVE, GUIDE - WATER INLET TUBE

SLEEVE, GUIDE - WATER INLET TUBE

630 ₽
37

37641001 SEAL, EXHAUST ELBOW

SEAL, EXHAUST ELBOW

730 ₽
38

38051 PLATE, SUPPORT - EXHAUST TUBE SEAL

PLATE, SUPPORT - EXHAUST TUBE SEAL

0 ₽
39

76062A1 SHAFT ASSEMBLY, SHIFT - LOWER

SHAFT ASSEMBLY, SHIFT - LOWER

6 590 ₽
40

53-29641 "E" RING, RETAINING - SHIFT SHAFT

"E" RING, RETAINING - SHIFT SHAFT

140 ₽
41

25-25439 "O" RING, SHIFT SHAFT BUSHING

"O" RING, SHIFT SHAFT BUSHING

190 ₽
42

23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT

BUSHING ASSEMBLY, SHIFT SHAFT

1 980 ₽
43

26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
.

OIL SEAL, SHIFT SHAFT BUSHING
.

670 ₽
44

12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
.

WASHER, RUBBER - SHIFT SHAFT BUSHING
.

100 ₽
45

78036 SPACER, LOWER
REVERSE LOCKING NOT USED WITH FULL POWER TRIM NOT USED WITH FULL POWER TRIM

SPACER, LOWER
REVERSE LOCKING NOT USED WITH FULL POWER TRIM NOT USED WITH FULL POWER TRIM

440 ₽
46

43308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM

CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM

4 870 ₽
47

10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE

SCREW, GREASE FILLER AND VENT HOLE

1 000 ₽
47

22-8M0058389 PLUG, DRAIN (MAGNETIC)

PLUG, DRAIN (MAGNETIC)

1 720 ₽
48

12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW

WASHER, GREASE FILLER AND VENT HOLE SCREW

60 ₽
-

27-85653A87 GASKET SET

GASKET SET

11 040 ₽
-

46-96148A8 WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

6 860 ₽
-

26-55682A1 SEAL REPAIR KIT

SEAL REPAIR KIT

11 240 ₽
