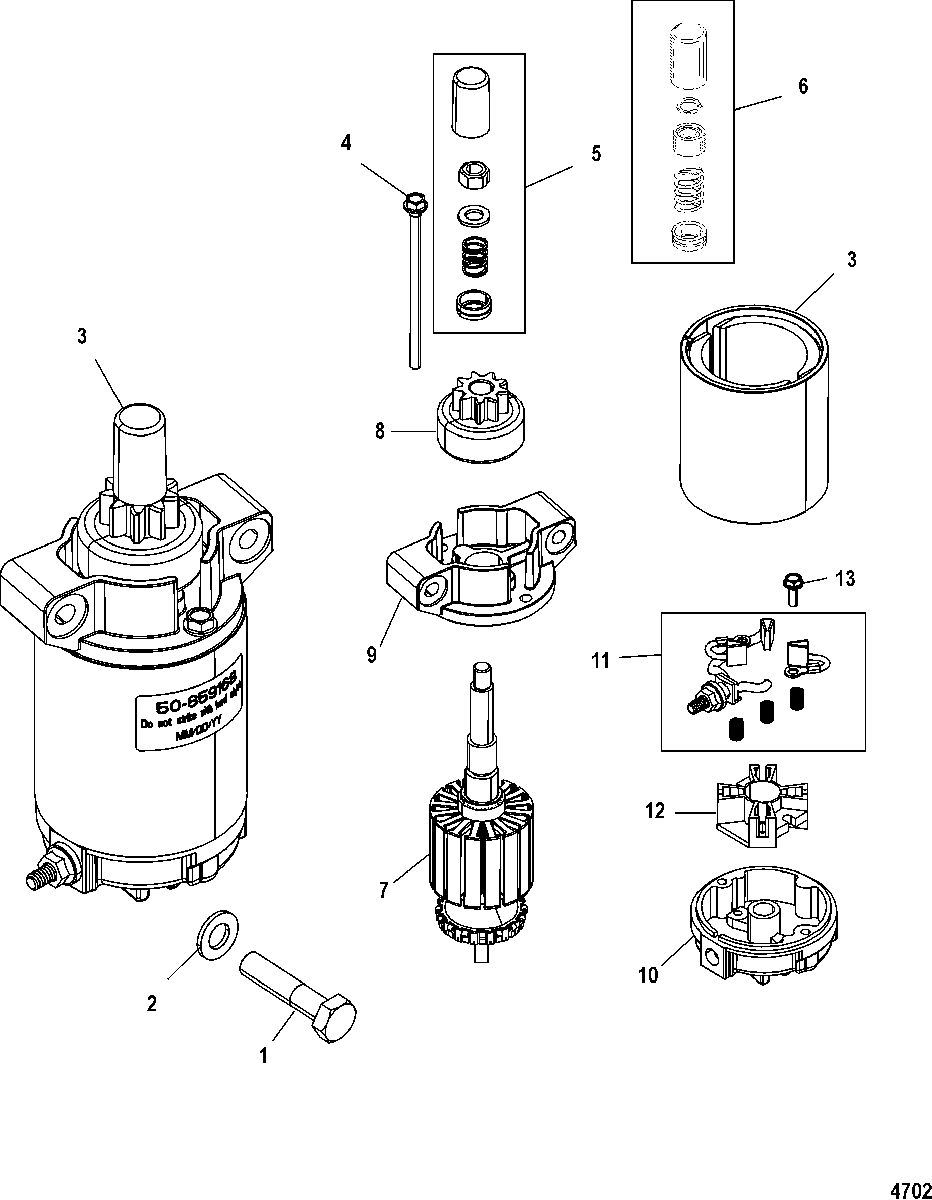

Starter Motor для Mercury - 15 (4-STROKE) 0P075166 THRU 0P400999
-
№АртикулНазвание
-
110-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
212-4002317 WASHER
(Bottom)WASHER
(Bottom) -
350-859168T STARTER MOTOR ASSEMBLY
(Nut Design)STARTER MOTOR ASSEMBLY
(Nut Design) -
350-859168T STARTER MOTOR ASSEMBLY
(Retaining Ring Design)STARTER MOTOR ASSEMBLY
(Retaining Ring Design) -
410-965662 THRU BOLTTHRU BOLT
-
5891752 DRIVE KIT
(Nut Design)DRIVE KIT
(Nut Design) -
6906432 DRIVE KIT
(Retaining Ring Design)DRIVE KIT
(Retaining Ring Design) -
78236383 ARMATURE
(Retaining Ring Design)ARMATURE
(Retaining Ring Design) -
78236385 ARMATURE
(Nut Design)ARMATURE
(Nut Design) -
850-893886T PINIONPINION
-
98236391 DRIVE CAPDRIVE CAP
-
108119012 CAP, CommutatorCAP, Commutator
-
11898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
12898265014 HOLDERHOLDER
-
13F15158 SCREWSCREW
