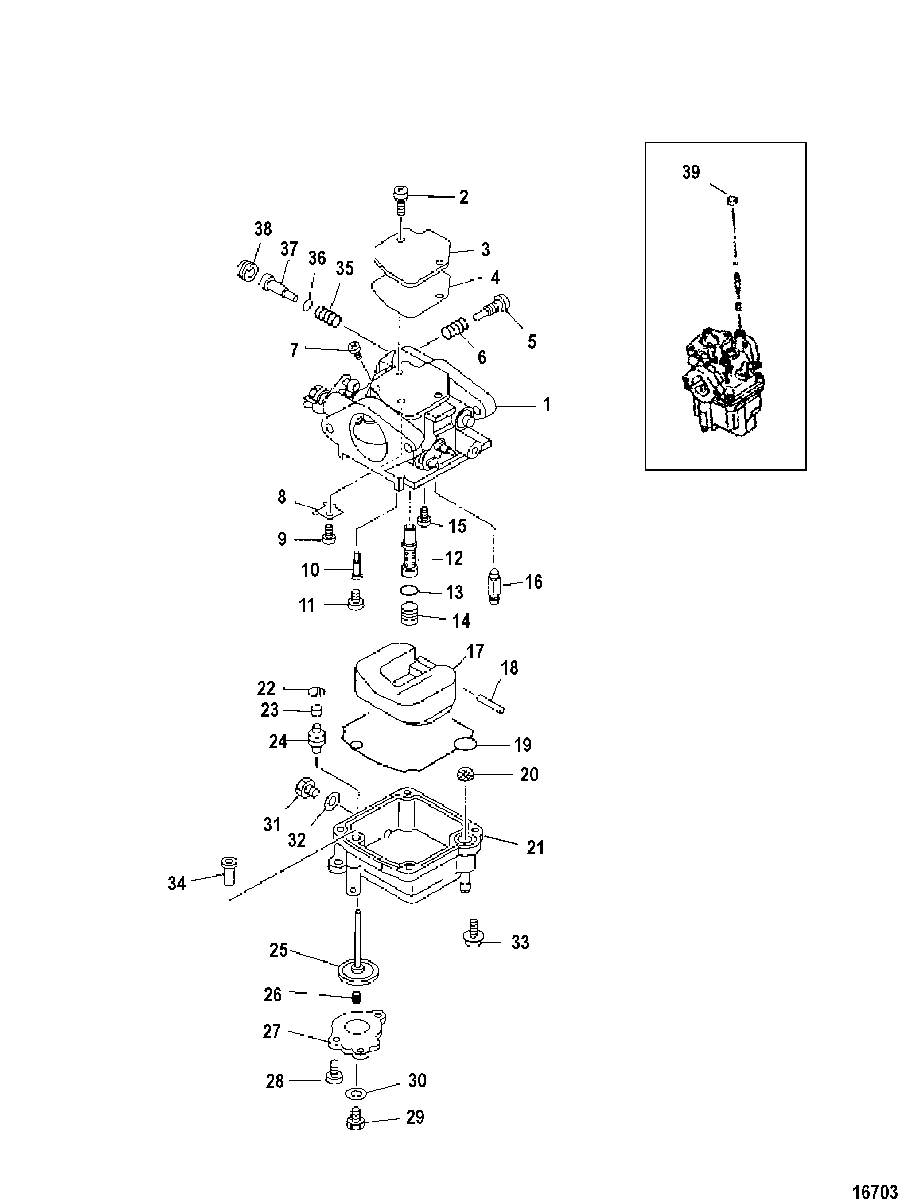

Carburetor для Mercury - 15 (4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
13323-856918A1 CARBURETOR
(15 Bodensee)CARBURETOR
(15 Bodensee) -
13323-835382T04 CARBURETOR
(13.5/15)CARBURETOR
(13.5/15) -
-19-854248002 CAP, TamperCAP, Tamper
-
210-809571 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
38095721 COVERCOVER
-
4809573 GASKETGASKET
-
510-8095781 SCREW, ThrottleSCREW, Throttle
-
624-8095791 SPRINGSPRING
-
710-811248M SCREW, (M4 x 5)SCREW, (M4 x 5)
-
8802705 COVERCOVER
-
910-8026921 SCREW, (M3 x 5)SCREW, (M3 x 5)
-
108027011 PILOT JET, (#45)PILOT JET, (#45)
-
1119-802702 PLUGPLUG
-
12802700 MAIN NOZZLE
(13.5/15)MAIN NOZZLE
(13.5/15) -
128027001 MAIN NOZZLE
(15 Bodensee)MAIN NOZZLE
(15 Bodensee) -
1325-11802M O-RINGO-RING
-
14802701 JET, Main (#104)
(13.5/15)JET, Main (#104)
(13.5/15) -
148027012 JET, Main (#103)
(15 Bodensee)JET, Main (#103)
(15 Bodensee) -
1510-8095711 SCREW, (M4 x 5)SCREW, (M4 x 5)
-
168095701 VALVE, NeedleVALVE, Needle
-
17809569 FLOATFLOAT
-
1817-11794M PINPIN
-
1927-802699 GASKETGASKET
-
2035-802704 FILTERFILTER
-
21802690T3 FLOAT BOWL ASSEMBLYFLOAT BOWL ASSEMBLY
-
2253-802693 RING, RetainingRING, Retaining
-
23802698 CAPCAP
-
24802697 SEALSEAL
-
25802695 DIAPHRAGMDIAPHRAGM
-
2624-802696 SPRINGSPRING
-
27802694 PLATEPLATE
-
2810-802692 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
2922-14183M PLUG, Drain (M4 x 5)PLUG, Drain (M4 x 5)
-
3027-8026911 GASKETGASKET
-
3110-8095783 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
3227-802691 GASKETGASKET
-
3310-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
3421-802703 CHECK VALVECHECK VALVE
-
35NSS NOT SOLD SEPARATE, Spring-Air AdjustingNOT SOLD SEPARATE, Spring-Air Adjusting
-
36NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
37NSS NOT SOLD SEPARATE, Screw-Air AdjustingNOT SOLD SEPARATE, Screw-Air Adjusting
-
3819-855237 PLUGPLUG
-
3926-827737 SEAL, Rubber
(Bodensee)SEAL, Rubber
(Bodensee) -
-802706A1 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
