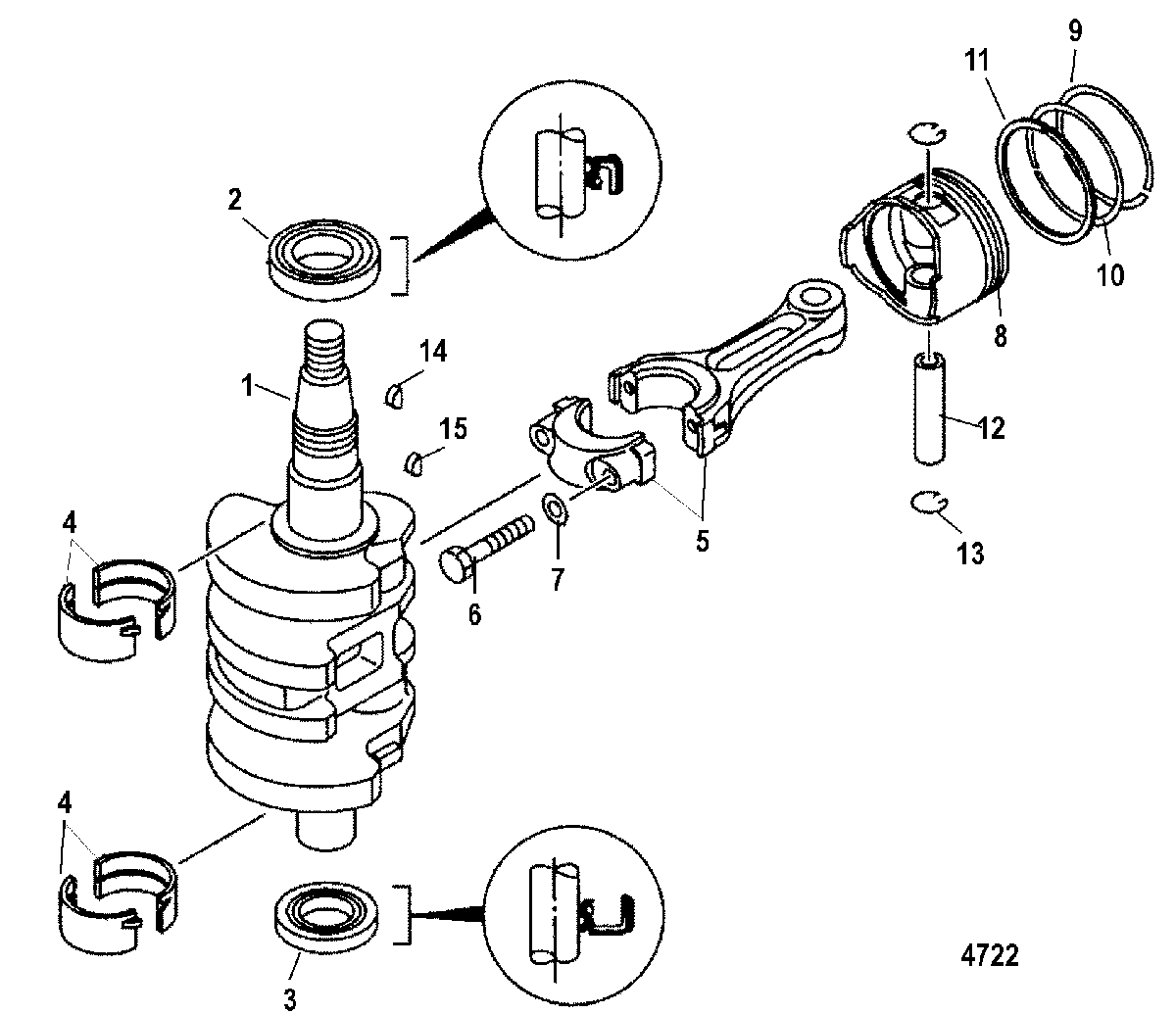

Crankshaft, Pistons and Connecting Rods для Mercury - 15 (4-STROKE) 9973100 THRU 0P016999
-
№АртикулНазвание
-
1400-834957 CRANKSHAFTCRANKSHAFT
-
226-855680 SEAL, OilSEAL, Oil
-
326-855681 SEAL, OilSEAL, Oil
-
431-8M0054679 BEARING
(BROWN)BEARING
(BROWN) -
431-83496010 BEARING
(BLACK)BEARING
(BLACK) -
431-83496020 BEARING
(BLUE)BEARING
(BLUE) -
5600-834961T1 CONNECTING RODCONNECTING ROD
-
610-850844 BOLT, (M7 x 38)BOLT, (M7 x 38)
-
712-855682 WASHERWASHER
-
8700-834963T PISTONPISTON
-
939-850846 RING, PistonRING, Piston
-
1039-850847 RING, PistonRING, Piston
-
1139-825839 RING, OilRING, Oil
-
1241-825713 PIN, PistonPIN, Piston
-
1353-82343M CLIPCLIP
-
1428-8M0057164 KEYKEY
-
1528-8M0084803 KEYKEY
-
-802733A98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-835427A00 GASKET SET, PowerheadGASKET SET, Powerhead
