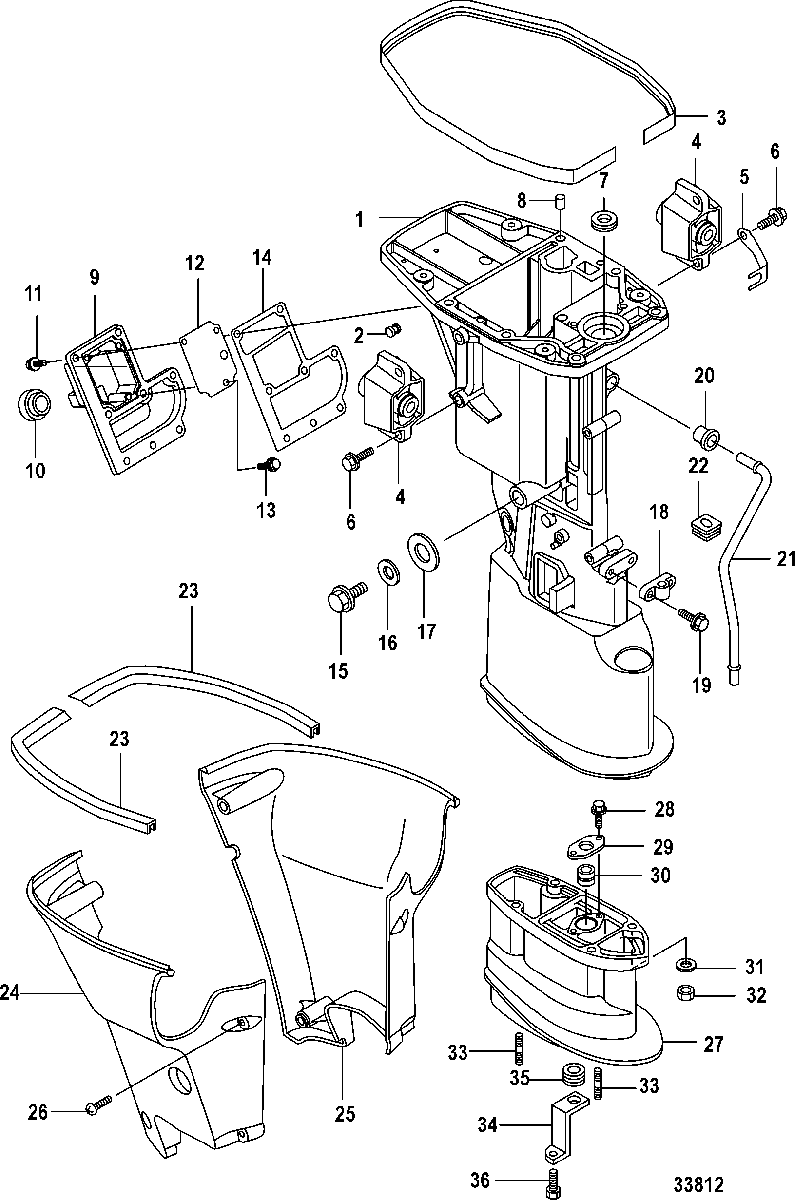

Driveshaft Housing для Mercury - 15 Carb(2CYL)(4-STROKE) JCI 0R558208 & Up
-
№АртикулНазвание
-
11590-803724T06 HOUSING ASSEMBLY, Driveshaft - ShortHOUSING ASSEMBLY, Driveshaft - Short
-
11590-803725T05 HOUSING ASSEMBLY, Driveshaft - LongHOUSING ASSEMBLY, Driveshaft - Long
-
219-803593 PLUG
As neededPLUG
As needed -
3852432004 SEAL, RubberSEAL, Rubber
-
4898101969 MOUNT, Upper-RubberMOUNT, Upper-Rubber
-
5853772004 LOCK PLATELOCK PLATE
-
610-879194273 BOLTBOLT
-
726-8036675 SEAL, OilSEAL, Oil
-
817-16119 PIN, DowelPIN, Dowel
-
9853706004 COVER, Idle Exhaust PortCOVER, Idle Exhaust Port
-
1025-898101972 GROMMET, Idle Exhaust CoverGROMMET, Idle Exhaust Cover
-
1110-823042077 BOLTBOLT
-
12895163001 PLATE, Idle Exhaust CoverPLATE, Idle Exhaust Cover
-
1310-803698002 BOLTBOLT
-
1427-898101970 GASKET, Idle Exhaust CoverGASKET, Idle Exhaust Cover
-
158M0111615 BOLTBOLT
-
1612-895146 WASHERWASHER
-
1725-804899003 GROMMETGROMMET
-
18853794002 CAM ROD
Long/X-LongCAM ROD
Long/X-Long -
1910-167051 BOLT
Long/X-LongBOLT
Long/X-Long -
2026-16168003 SEAL, Rubber, UpperSEAL, Rubber, Upper
-
2132-803755008 TUBE, Water
ShortTUBE, Water
Short -
2132-803755009 TUBE, Water
LongTUBE, Water
Long -
2132-803755013 TUBE, Water
X-LongTUBE, Water
X-Long -
22803758001 GUIDE, RubberGUIDE, Rubber
-
23852432003 SEAL, RubberSEAL, Rubber
-
24100-8M0134086 COVER, Driveshaft Housing-StarboardCOVER, Driveshaft Housing-Starboard
-
25850862T02 COVER, Driveshaft Housing-PortCOVER, Driveshaft Housing-Port
-
2610-16257004 SCREW, TappingSCREW, Tapping
-
27853783T10 HOUSING, Extension
X-LongHOUSING, Extension
X-Long -
2810-8230427 BOLT
X-LongBOLT
X-Long -
2916121001 STOPPER
X-LongSTOPPER
X-Long -
3023-811314006 BUSHING, Driveshaft
X-LongBUSHING, Driveshaft
X-Long -
3112-8M0135942 WASHER
X-LongWASHER
X-Long -
3211-879194337 NUT
X-LongNUT
X-Long -
3316-898101943 STUD
X-LongSTUD
X-Long -
34810753005 LOCK PLATE
X-LongLOCK PLATE
X-Long -
3525-881305004 GROMMET
X-LongGROMMET
X-Long -
3610-823042067 SCREW
X-LongSCREW
X-Long
