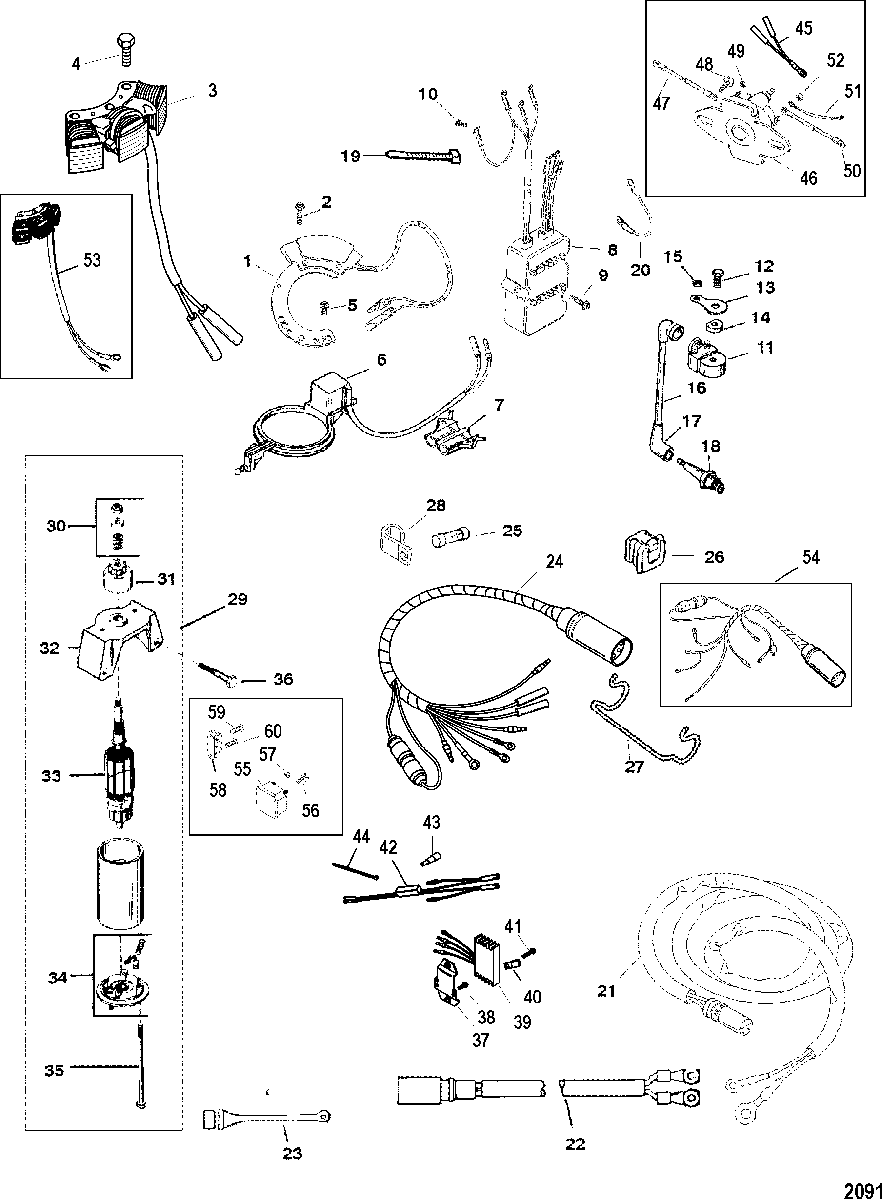

Electrical Components для Mercury - 15 SEA PRO 0G760300 THRU 0T979999
-
№АртикулНазвание
-
1855721T8 STATOR ASSEMBLYSTATOR ASSEMBLY
-
210-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
386704T11 STATOR AUXILIARY
(Seapro/Marathon/Viking)(Design II)STATOR AUXILIARY
(Seapro/Marathon/Viking)(Design II) -
410-4013930 SCREW, (M5 x 30)
(Seapro/Marathon/Viking)SCREW, (M5 x 30)
(Seapro/Marathon/Viking) -
510-4013910 SCREW, (M5 x 10)
(Short)SCREW, (M5 x 10)
(Short) -
698450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
711100 CLIPCLIP
-
8855713A3 SWITCHBOX ASSEMBLY
(Seapro/Marathon)SWITCHBOX ASSEMBLY
(Seapro/Marathon) -
8855713A4 SWITCHBOX ASSEMBLY
(XR/Magnum/Viking)SWITCHBOX ASSEMBLY
(XR/Magnum/Viking) -
910-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1010-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
11339-832757A4 COIL KITCOIL KIT
-
1210-40112 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1388173 TAB WASHERTAB WASHER
-
1423-88171 BUSHINGBUSHING
-
1511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1684-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)
(5 Inch)CABLE SET, High Tension (5 and 8.25 Inch)
(5 Inch) -
16NSS NOT SOLD SEPARATE (Lead Assembly-High Tension)
(8-1/4 Inch)NOT SOLD SEPARATE (Lead Assembly-High Tension)
(8-1/4 Inch) -
1785-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1833-8M0114746 SPARK PLUG (NGK#BP8HS-15)SPARK PLUG (NGK#BP8HS-15)
-
1833-14814568 SPARK PLUG (NGK#BPZ-8HS-15)SPARK PLUG (NGK#BPZ-8HS-15)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1969355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2084-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
2184-65017A10 HARNESS ASSEMBLY, Battery End (62 Inch - Black/Red)
(Sailpower)HARNESS ASSEMBLY, Battery End (62 Inch - Black/Red)
(Sailpower) -
2284-74725A2 HARNESS ASSEMBLY (20 Inch _ Black/Red)
(Sailpower)HARNESS ASSEMBLY (20 Inch _ Black/Red)
(Sailpower) -
2371663 PLUG
(Sailpower)PLUG
(Sailpower) -
2484-12334A4 HARNESS ASSEMBLY, Engine Wiring
(Electric)(Design II)HARNESS ASSEMBLY, Engine Wiring
(Electric)(Design II) -
2588-79091 FUSE, 20 Ampere
(Electric)FUSE, 20 Ampere
(Electric) -
2612152 RETAINER
(Electric)RETAINER
(Electric) -
2792753 RETAINER
(Electric)RETAINER
(Electric) -
2854-55098 J CLIP
(Electric)J CLIP
(Electric) -
2950-8M0033984 STARTER MOTOR ASSEMBLY
(Electric)STARTER MOTOR ASSEMBLY
(Electric) -
3096561 DRIVE KIT
(Electric)DRIVE KIT
(Electric) -
3196562 DRIVE
(Electric)DRIVE
(Electric) -
3296563T END CAP
(Electric)END CAP
(Electric) -
3396565 ARMATURE
(Electric)ARMATURE
(Electric) -
3496564T END CAP
(Electric)END CAP
(Electric) -
3510-96566 THRU BOLT
(Electric)THRU BOLT
(Electric) -
3610-421251 SCREW, (M8 x 55)
(Electric)SCREW, (M8 x 55)
(Electric) -
37883073 PLATE, Mounting
(Design II)PLATE, Mounting
(Design II) -
3810-878608 SCREW, (#10-16 x .500)
(Design II)SCREW, (#10-16 x .500)
(Design II) -
39853358T1 RECTIFIER
(Design II)RECTIFIER
(Design II) -
4054-54457 J CLIPJ CLIP
-
4110-82129130 SCREW, (M6 x 30)
(Design II)SCREW, (M6 x 30)
(Design II) -
4217461T11 MODULE KIT, Tachometer AdaptorMODULE KIT, Tachometer Adaptor
-
4313541 PLUG, MalePLUG, Male
-
4454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
4584-11149A54 HARNESS ASSEMBLY, Adaptor
(Design II)HARNESS ASSEMBLY, Adaptor
(Design II) -
4689-850189T SOLENOID, Starter
(Electric)SOLENOID, Starter
(Electric) -
4784-88439A28 CABLE ASSEMBLY, Battery - Black (Negative)
(Electric)CABLE ASSEMBLY, Battery - Black (Negative)
(Electric) -
4810-4000328 SCREW, (M6 x 16)
(Electric)SCREW, (M6 x 16)
(Electric) -
4911-26419 NUT, (#8-32) Brass
(Electric)NUT, (#8-32) Brass
(Electric) -
5084-88439A27 CABLE ASSEMBLY, Red - Battery (Positive)
(Electric)CABLE ASSEMBLY, Red - Battery (Positive)
(Electric) -
5184-88809A5 WIRE ASSEMBLY (Yellow)
(Electric)WIRE ASSEMBLY (Yellow)
(Electric) -
5211-64015 NUT, (.250-20)
(Electric)NUT, (.250-20)
(Electric) -
5386704A10 STATOR, Auxiliary
(Seapro/Marathon/Viking)(Design I)STATOR, Auxiliary
(Seapro/Marathon/Viking)(Design I) -
5484-12334A2 HARNESS ASSEMBLY, Engine Wiring
(Electric)(Design I)HARNESS ASSEMBLY, Engine Wiring
(Electric)(Design I) -
558M0058226 RECTIFIER
(Electric)(Design I)RECTIFIER
(Electric)(Design I) -
5610-48409 SCREW, (#10-16 x .625) Stainless Steel
(Electric)(Design I)SCREW, (#10-16 x .625) Stainless Steel
(Electric)(Design I) -
5711-45076 NUT, (#10-32) Brass
(Electric)(Design I)NUT, (#10-32) Brass
(Electric)(Design I) -
5886-638131 TERMINAL BLOCK
(Seapro/Marathon/Viking)(Design I)TERMINAL BLOCK
(Seapro/Marathon/Viking)(Design I) -
5910-48409 SCREW, (#10-16 x .625) Stainless Steel
(Seapro/Marathon/Viking)(Design I)SCREW, (#10-16 x .625) Stainless Steel
(Seapro/Marathon/Viking)(Design I) -
6010-62568 SCREW, (#10-16 x .375)
(Seapro/Marathon/Viking)(Design I)SCREW, (#10-16 x .375)
(Seapro/Marathon/Viking)(Design I)
