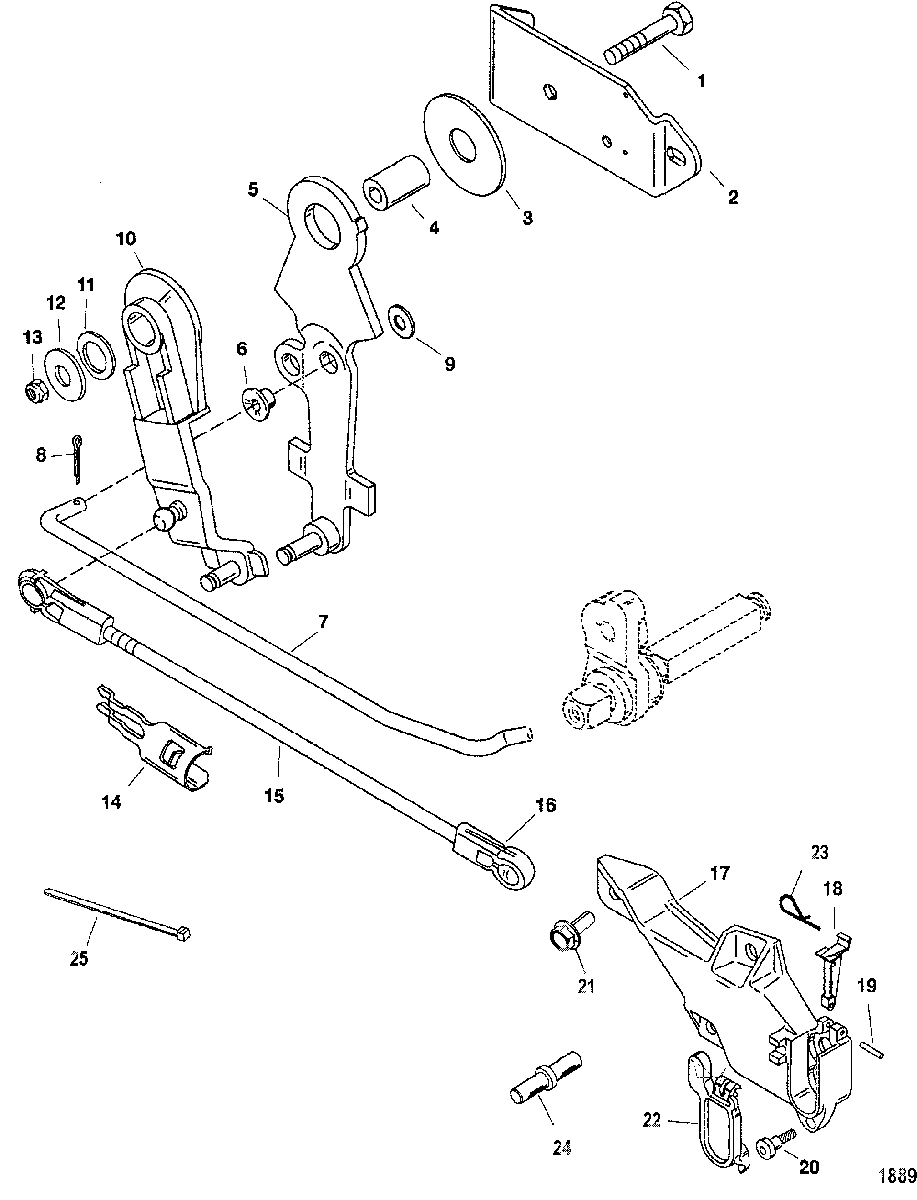

Remote Control Attaching Components для Mercury - 15 SEA PRO 0P017000 THRU 0P325499
-
№АртикулНазвание
-
110-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
242809 BRACKET, Control ArmBRACKET, Control Arm
-
312-12132 WASHER, (.520 x 1.500 x .06)
(1-1/2 X .52 I.D.)WASHER, (.520 x 1.500 x .06)
(1-1/2 X .52 I.D.) -
423-823807 BUSHINGBUSHING
-
542810A8 ARM ASSEMBLY, ControlARM ASSEMBLY, Control
-
623-889731 BUSHINGBUSHING
-
7878169 SHIFT LINKSHIFT LINK
-
818-210711 COTTER PINCOTTER PIN
-
912-56681 WASHER, (.203 x .500 x .032)
(1/2 X .203 I.D.)WASHER, (.203 x .500 x .032)
(1/2 X .203 I.D.) -
10428071 ARM, Throttle ControlARM, Throttle Control
-
1113-12134 WASHER, WaveWASHER, Wave
-
1212-65567 WASHER, (.265 x .750 x .048) Stainless Steel
(3/4 X .265 I.D.)WASHER, (.265 x .750 x .048) Stainless Steel
(3/4 X .265 I.D.) -
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
14424291 RETAINERRETAINER
-
158M0084741 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
168M0084742 SOCKETSOCKET
-
1742805A3 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1811373 PIN, LatchPIN, Latch
-
1917-239281 PIN, RollPIN, Roll
-
2010-42975 DRIVE SCREWDRIVE SCREW
-
2110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
22428021 RETAINERRETAINER
-
2354-11372 CLIPCLIP
-
2415822001 PLUGPLUG
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
