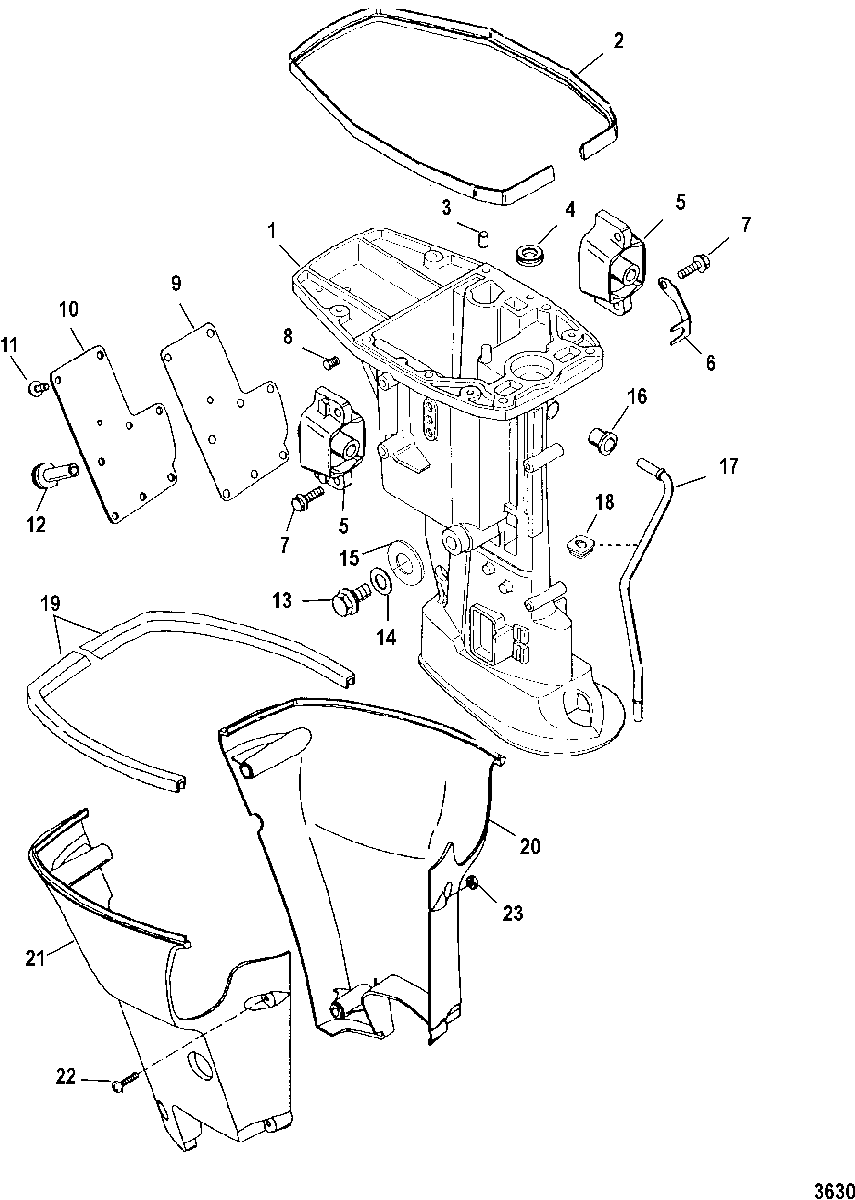

Driveshaft Housing для Mercury - 15 SEAPRO (4-STROKE) 0R051685 THRU 0R123564
-
№АртикулНазвание
-
11599-803724003 HOUSING, Driveshaft
(Short)HOUSING, Driveshaft
(Short) -
11599-803725003 HOUSING, Driveshaft
(Long)HOUSING, Driveshaft
(Long) -
2852432004 SEAL, RubberSEAL, Rubber
-
317-16119 PIN, DowelPIN, Dowel
-
426-8036675 SEAL, OilSEAL, Oil
-
5853771006 RUBBER MOUNTRUBBER MOUNT
-
6853772004 LOCK PLATELOCK PLATE
-
710-879194273 BOLTBOLT
-
819-803593 PLUGPLUG
-
927-854617002 GASKETGASKET
-
10853577002 COVER, Idle PortCOVER, Idle Port
-
1110-810755013 BOLTBOLT
-
1225-851850009 GROMMETGROMMET
-
138M0111615 BOLTBOLT
-
1412-895146 WASHERWASHER
-
1525-804899003 GROMMETGROMMET
-
1626-16168003 SEAL, RubberSEAL, Rubber
-
1732-803755008 TUBE, Water
(Short)TUBE, Water
(Short) -
1732-803755009 TUBE, Water
(Long)TUBE, Water
(Long) -
18803758001 GUIDE, RubberGUIDE, Rubber
-
19852432003 SEAL, RubberSEAL, Rubber
-
20100-8M0134086 COVER, PortCOVER, Port
-
21100-8M0134086 COVER, StarboardCOVER, Starboard
-
2210-16257005 SCREWSCREW
-
2311-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
-27-850836A05 GASKET SET, PowerheadGASKET SET, Powerhead
