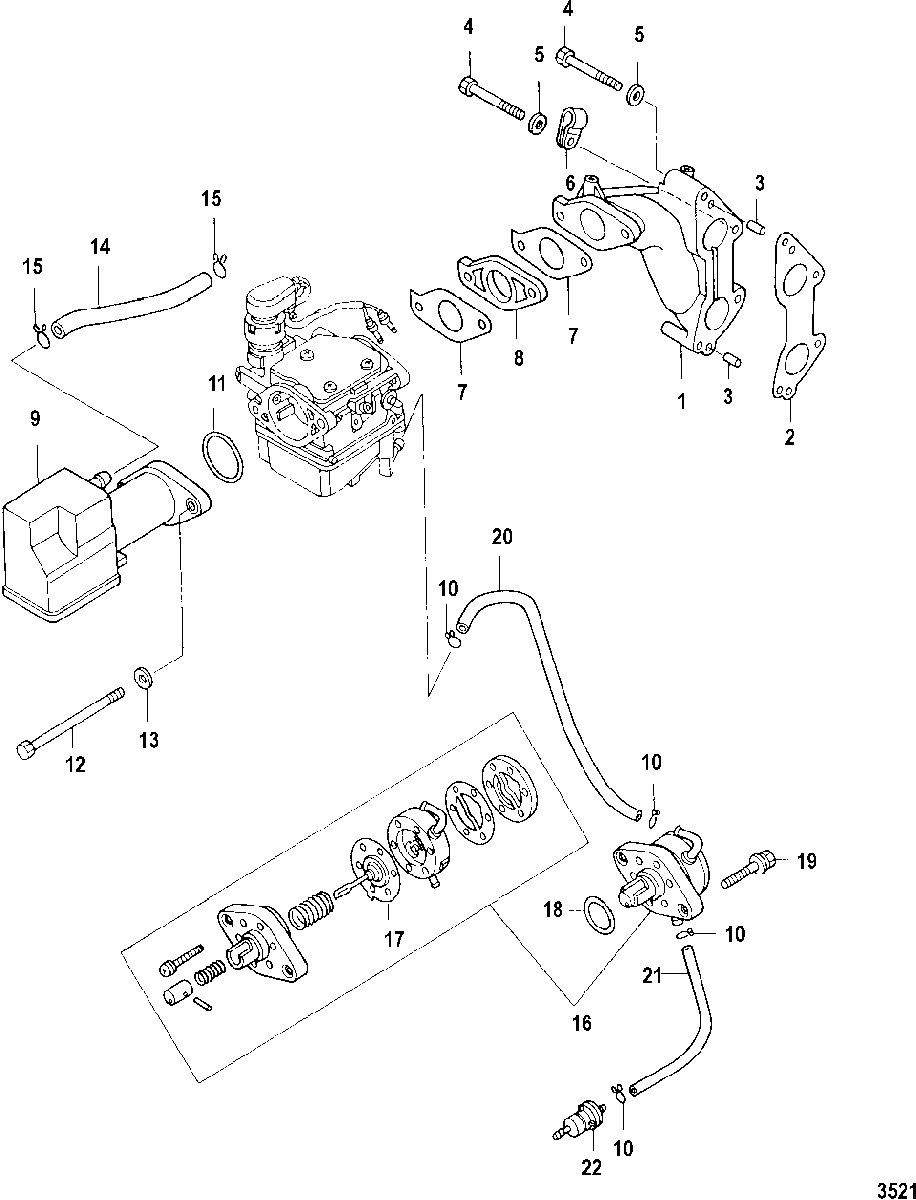

Intake Manifold and Fuel Pump для Mercury - 15 SEAPRO (4-STROKE) 0R123565 & Up
-
№АртикулНазвание
-
1804887003 MANIFOLD, InletMANIFOLD, Inlet
-
227-853525004 GASKETGASKET
-
317-16119 PIN, DowelPIN, Dowel
-
410-16125 BOLTBOLT
-
512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
654-953951 CLAMPCLAMP
-
727-16327002 GASKET, CarburetorGASKET, Carburetor
-
8853526004 INSULATORINSULATOR
-
9853728003 SILENCER, AirSILENCER, Air
-
1054-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
1125-825057005 O-RINGO-RING
-
1210-855809001 BOLTBOLT
-
1312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1432-8M0057114 TUBING, (110 mm)TUBING, (110 mm)
-
1554-952245 CLAMPCLAMP
-
16803529T04 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
17853731004 DIAPHRAGM SETDIAPHRAGM SET
-
1825-16109003 O-RINGO-RING
-
1910-823042 BOLTBOLT
-
2032-8M0057113 TUBING, (320 mm)TUBING, (320 mm)
-
2132-8M0057113 HOSE, (150 mm)HOSE, (150 mm)
-
2235-16248 FILTER, FuelFILTER, Fuel
-
-895274A06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-835427A05 GASKET SET, PowerheadGASKET SET, Powerhead
