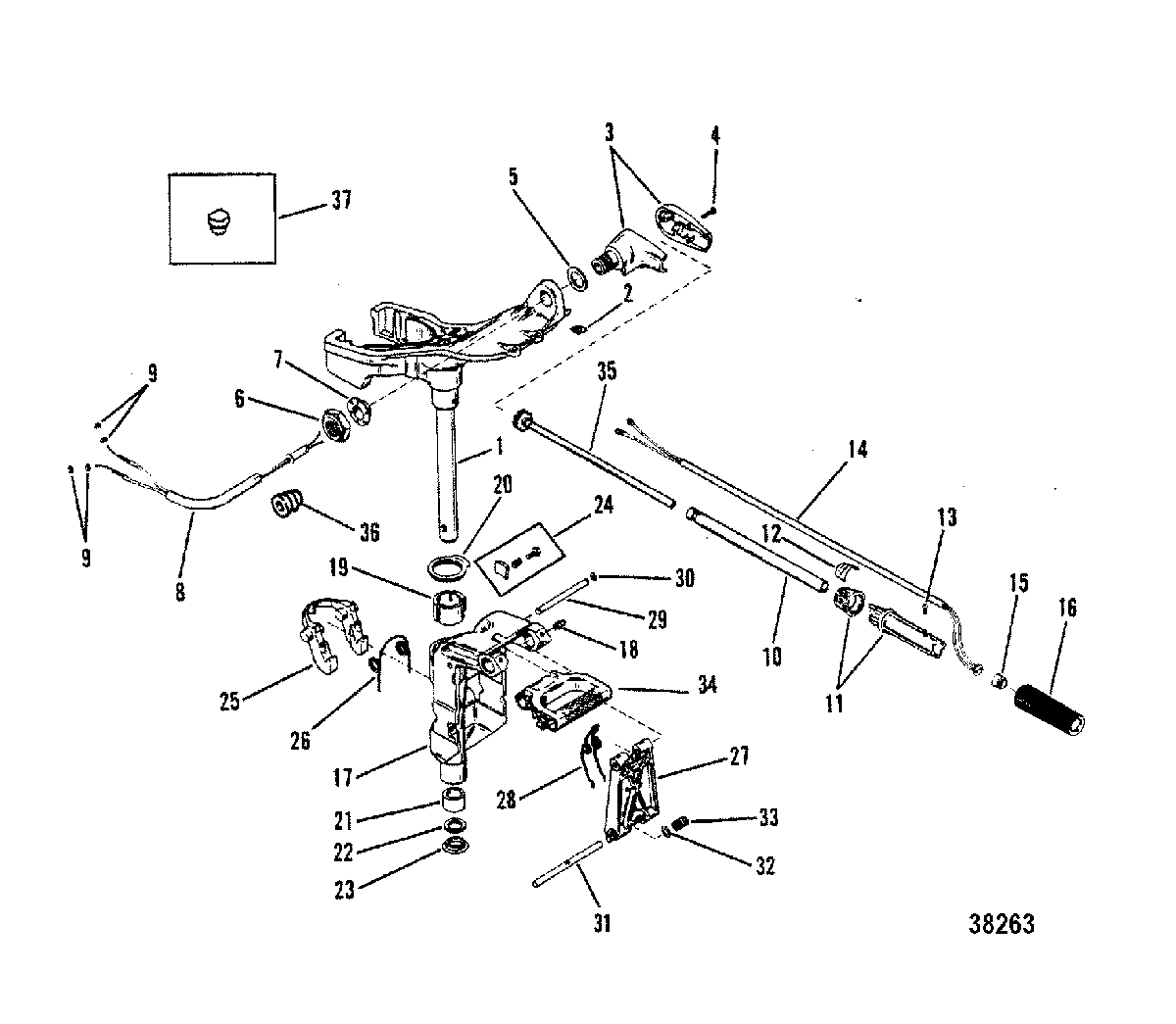

SWIVEL BRACKET AND STEERING HANDLE для Mercury - 15 0A197112 THRU 0D280999
-
№АртикулНазвание
-
142213A14 SWIVEL TUBE (BLACK)
REF #6 is 1 Inch - 14SWIVEL TUBE (BLACK)
REF #6 is 1 Inch - 14 -
142213A14 SWIVEL TUBE (GRAY)
REF #6 is 1 Inch - 14SWIVEL TUBE (GRAY)
REF #6 is 1 Inch - 14 -
142213A14 SWIVEL TUBE REPLACEMENT (BLACK)
REF #6 is 1-1/8 Inch - 12SWIVEL TUBE REPLACEMENT (BLACK)
REF #6 is 1-1/8 Inch - 12 -
142213A14 SWIVEL TUBE REPLACEMENT (GRAY)
REF #6 is 1-1/8 Inch - 12SWIVEL TUBE REPLACEMENT (GRAY)
REF #6 is 1-1/8 Inch - 12 -
222-74036 FITTING, GreaseFITTING, Grease
-
3NLA No Longer Available, BRACKET (BLACK) (ORDER 42213A14)
REF #6 is 1 Inch - 14No Longer Available, BRACKET (BLACK) (ORDER 42213A14)
REF #6 is 1 Inch - 14 -
3NLA No Longer Available, BRACKET (GRAY) (ORDER 4213A15)
REF #6 is 1 Inch - 14No Longer Available, BRACKET (GRAY) (ORDER 4213A15)
REF #6 is 1 Inch - 14 -
344397A15 BRACKET ASSEMBLY (BLACK)
REF #6 is 1-1/8 Inch - 12BRACKET ASSEMBLY (BLACK)
REF #6 is 1-1/8 Inch - 12 -
344397A16 BRACKET ASSEMBLY (GRAY)
REF #6 is 1-1/8 Inch - 12BRACKET ASSEMBLY (GRAY)
REF #6 is 1-1/8 Inch - 12 -
410-40019109 SCREW, (M5 x 25)
REF #6 is 1 Inch - 14SCREW, (M5 x 25)
REF #6 is 1 Inch - 14 -
410-4005688 SCREW, (M4 x 20)
REF #6 is 1 Inch - 14SCREW, (M4 x 20)
REF #6 is 1 Inch - 14 -
410-40011110 SCREW, (M5 x 30) Stainless Steel
REF #6 is 1-1/8 Inch - 12SCREW, (M5 x 30) Stainless Steel
REF #6 is 1-1/8 Inch - 12 -
512-177821 WASHER, BRACKET
REF #6 is 1 Inch - 14WASHER, BRACKET
REF #6 is 1 Inch - 14 -
512-177821 WASHER
REF #6 is 1-1/8 Inch - 12WASHER
REF #6 is 1-1/8 Inch - 12 -
611-82671327 NUT, BRACKET (BLACK)
REF #6 is 1 Inch - 14NUT, BRACKET (BLACK)
REF #6 is 1 Inch - 14 -
611-82671327 NUT, (1.00-14), BRACKET (GRAY)
REF #6 is 1 Inch - 14NUT, (1.00-14), BRACKET (GRAY)
REF #6 is 1 Inch - 14 -
611-816880 NUT
REF #6 is 1-1/8 Inch - 12NUT
REF #6 is 1-1/8 Inch - 12 -
723-85973 BUSHING, BRACKET
REF #6 is 1 Inch - 14BUSHING, BRACKET
REF #6 is 1 Inch - 14 -
723-817026 BUSHING
REF #6 is 1-1/8 Inch - 12BUSHING
REF #6 is 1-1/8 Inch - 12 -
842210 CABLE, THROTTLE (TILLER HANDLE SHIFT)CABLE, THROTTLE (TILLER HANDLE SHIFT)
-
8422111 CABLE, THROTTLE (SIDE SHIFT)CABLE, THROTTLE (SIDE SHIFT)
-
911-400212 NUT, (M6) Stainless Steel, THROTTLE CABLENUT, (M6) Stainless Steel, THROTTLE CABLE
-
1099333A2 TUBE ASSEMBLY, STEERINGTUBE ASSEMBLY, STEERING
-
1187-823609A10 HANDLE ASSEMBLY, Throttle (TILLER HANDLE SHIFT)HANDLE ASSEMBLY, Throttle (TILLER HANDLE SHIFT)
-
1187-823609A10 HANDLE ASSEMBLY, Throttle (SIDE SHIFT)HANDLE ASSEMBLY, Throttle (SIDE SHIFT)
-
1237-13239 DECAL, THROTTLE (APPLY ON HANDLE)DECAL, THROTTLE (APPLY ON HANDLE)
-
1237-140121 DECAL, THROTTLE (APPLY ON TUBE) (BLACK)DECAL, THROTTLE (APPLY ON TUBE) (BLACK)
-
1237-140122 DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4")DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4")
-
1237-140123 DECAL (APPLY ON TUBE - 3.15"X 2-1/2")DECAL (APPLY ON TUBE - 3.15"X 2-1/2")
-
1237-140124 DECAL (INTERNATIONAL SYMBOLS)DECAL (INTERNATIONAL SYMBOLS)
-
1310-37342 SCREW, (#12-14 x .375), THROTTLE HANDLESCREW, (#12-14 x .375), THROTTLE HANDLE
-
1487-823609A10 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
1511099A1 BOOT ASSEMBLY, STOP SWITCHBOOT ASSEMBLY, STOP SWITCH
-
1699589003 GRIP, RUBBERGRIP, RUBBER
-
173402-8831A13 SWIVEL BRACKET ASSEMBLY (BLACK)SWIVEL BRACKET ASSEMBLY (BLACK)
-
173402-8831A13 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
1822-74036 FITTING, GreaseFITTING, Grease
-
1923-42140 BUSHING, UPPERBUSHING, UPPER
-
2023-42080T01 BEARING, Thrust - UpperBEARING, Thrust - Upper
-
2123-42139 BUSHING, LOWERBUSHING, LOWER
-
2226-42077 SEALSEAL
-
2312-42373 THRUST WASHER, LOWERTHRUST WASHER, LOWER
-
2442124A1 PLATE ASSEMBLY, CO-PILOTPLATE ASSEMBLY, CO-PILOT
-
258M0075731 HOOK, REVERSE LOCKHOOK, REVERSE LOCK
-
2624-42127 SPRING, REVERSE HOOKSPRING, REVERSE HOOK
-
2742082T04 BRACKETBRACKET
-
2824-421301 SPRINGSPRING
-
2917-420811 PINPIN
-
3053-13194 RING, RetainingRING, Retaining
-
3117-830741A1 PIN, PivotPIN, Pivot
-
3291963 WASHER, (.390 x .600 x .032), PIVOT PINWASHER, (.390 x .600 x .032), PIVOT PIN
-
3324-42128 SPRINGSPRING
-
34420852 CARRYING HANDLECARRYING HANDLE
-
35975501 TUBE ASSEMBLYTUBE ASSEMBLY
-
3625-12602002 GROMMETGROMMET
-
3725-19564001 GROMMETGROMMET
