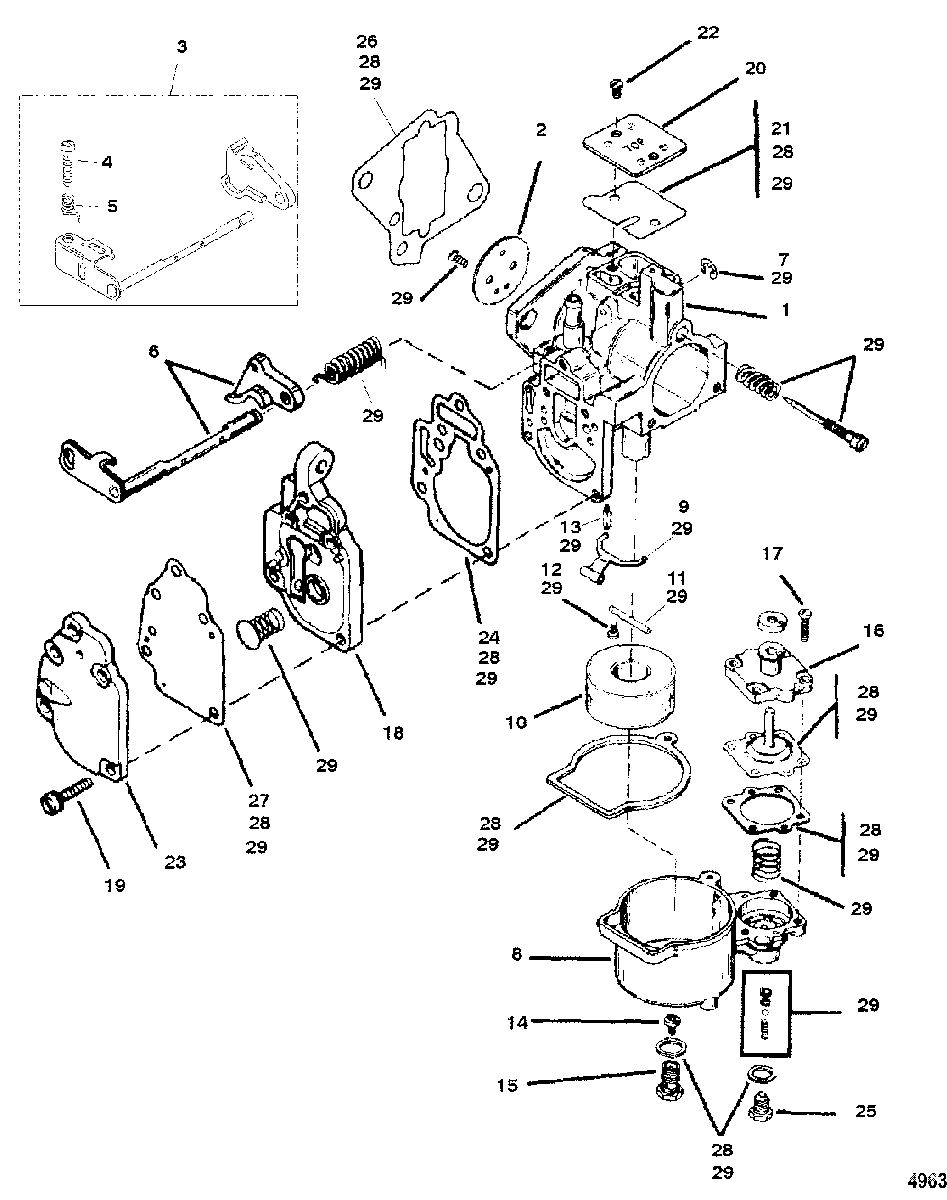

Carburetor Assembly для Mercury - 15 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11392-9503T21 CARBURETOR (6)(WMC-66)CARBURETOR (6)(WMC-66)
-
11392-9503T21 CARBURETOR, (WMC-78A) (6)CARBURETOR, (WMC-78A) (6)
-
11392-9266T22 CARBURETOR (8)(WMC-74)CARBURETOR (8)(WMC-74)
-
11392-9266T22 CARBURETOR (8)(WMC-79A)CARBURETOR (8)(WMC-79A)
-
11392-8846T28 CARBURETOR (WMC-61)CARBURETOR (WMC-61)
-
11392-8846T28 CARBURETOR, (WMC-80A) (9.9)CARBURETOR, (WMC-80A) (9.9)
-
11392-9726T18 CARBURETOR (15)(WMC-63)CARBURETOR (15)(WMC-63)
-
11392-9726T18 CARBURETOR, (WMC-77) (15)CARBURETOR, (WMC-77) (15)
-
11392-9726T18 CARBURETOR, (WMC-83) (15)CARBURETOR, (WMC-83) (15)
-
21395-9473 VALVE, Throttle
(6)VALVE, Throttle
(6) -
2815133 VALVE, Throttle
(8)VALVE, Throttle
(8) -
21395-94731 VALVE, Throttle
(9.9)VALVE, Throttle
(9.9) -
21395-823716 VALVE, Throttle
(15)VALVE, Throttle
(15) -
31395-804707 SHAFT
(6)SHAFT
(6) -
41395-804997 SCREWSCREW
-
51395-804996 SPRINGSPRING
-
6813022 SHAFT, Throttle
(8/9.9)SHAFT, Throttle
(8/9.9) -
619267 SHAFT, Throttle
(15)SHAFT, Throttle
(15) -
753-F10167 RINGRING
-
81395-9164 BOWL, FuelBOWL, Fuel
-
91395-824401 LEVER, FloatLEVER, Float
-
101395-91691 FLOATFLOAT
-
11F10064 SHAFTSHAFT
-
121395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
131395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
141399-5315 JET, Main Fuel (.042)
(6)JET, Main Fuel (.042)
(6) -
141399-5317 JET, (.046)
(8)JET, (.046)
(8) -
141395-6246 JET, (.048)
(9.9)JET, (.048)
(9.9) -
141395-6207 JET, (.072)
(15)JET, (.072)
(15) -
151395-9171 PLUGPLUG
-
16813618 COVER
(8)COVER
(8) -
161395-823648 COVER, Diaphragm
(6/9.9/15)COVER, Diaphragm
(6/9.9/15) -
171395-9697 SCREWSCREW
-
181395-9702 BODYBODY
-
191395-9643 SCREWSCREW
-
201395-9699 PLATEPLATE
-
2127-44426 GASKETGASKET
-
221395-9696 SCREWSCREW
-
231395-96371 COVER, Fuel Pump
(6)COVER, Fuel Pump
(6) -
231395-9637 COVER
(8/9.9/15)COVER
(8/9.9/15) -
241395-9633 GASKETGASKET
-
251395-9762 PLUGPLUG
-
2627-192061 GASKET, Carburetor
(Restricted 6)GASKET, Carburetor
(Restricted 6) -
271395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
281395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
291395-8237072 REPAIR KITREPAIR KIT
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
