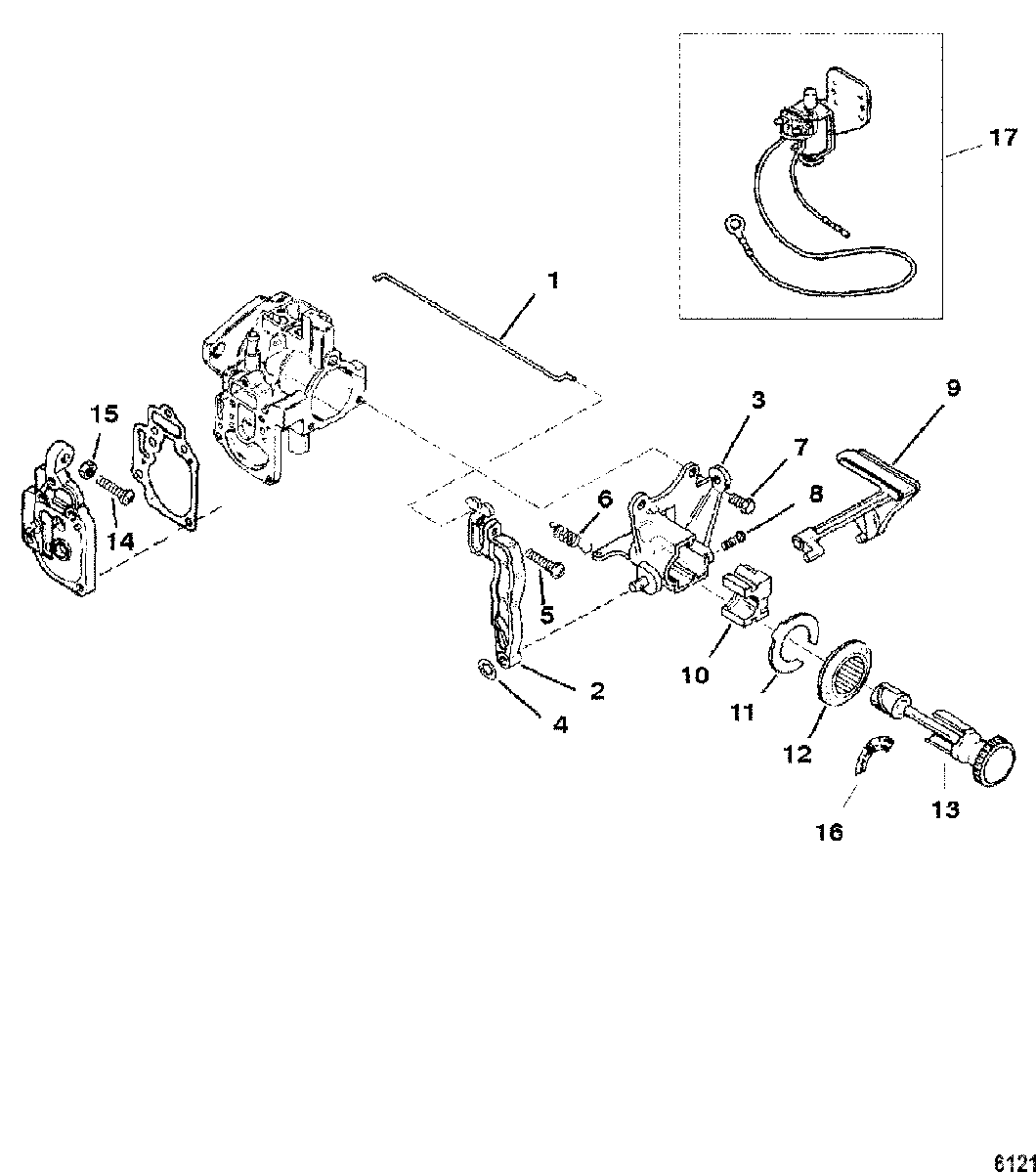

Carburetor Linkage для Mercury - 15 0P325500 & Up
-
№АртикулНазвание
-
1445541 IDLE WIREIDLE WIRE
-
2128053 LEVER, Fast IdleLEVER, Fast Idle
-
312803 BRACKET, PrimerBRACKET, Primer
-
411-821979 NUTNUT
-
510-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
624-11277 SPRING, TensionSPRING, Tension
-
710-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
810-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
9112731 LEVER, PrimerLEVER, Primer
-
1011280 CAM BLOCKCAM BLOCK
-
1153-11278 CLIP, RetainingCLIP, Retaining
-
1212804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
13128022 PRIMER KNOBPRIMER KNOB
-
1410-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1637-129701 DECAL, Bezel ChokeDECAL, Bezel Choke
-
171395-823433 CHOKE, ElectricCHOKE, Electric
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
