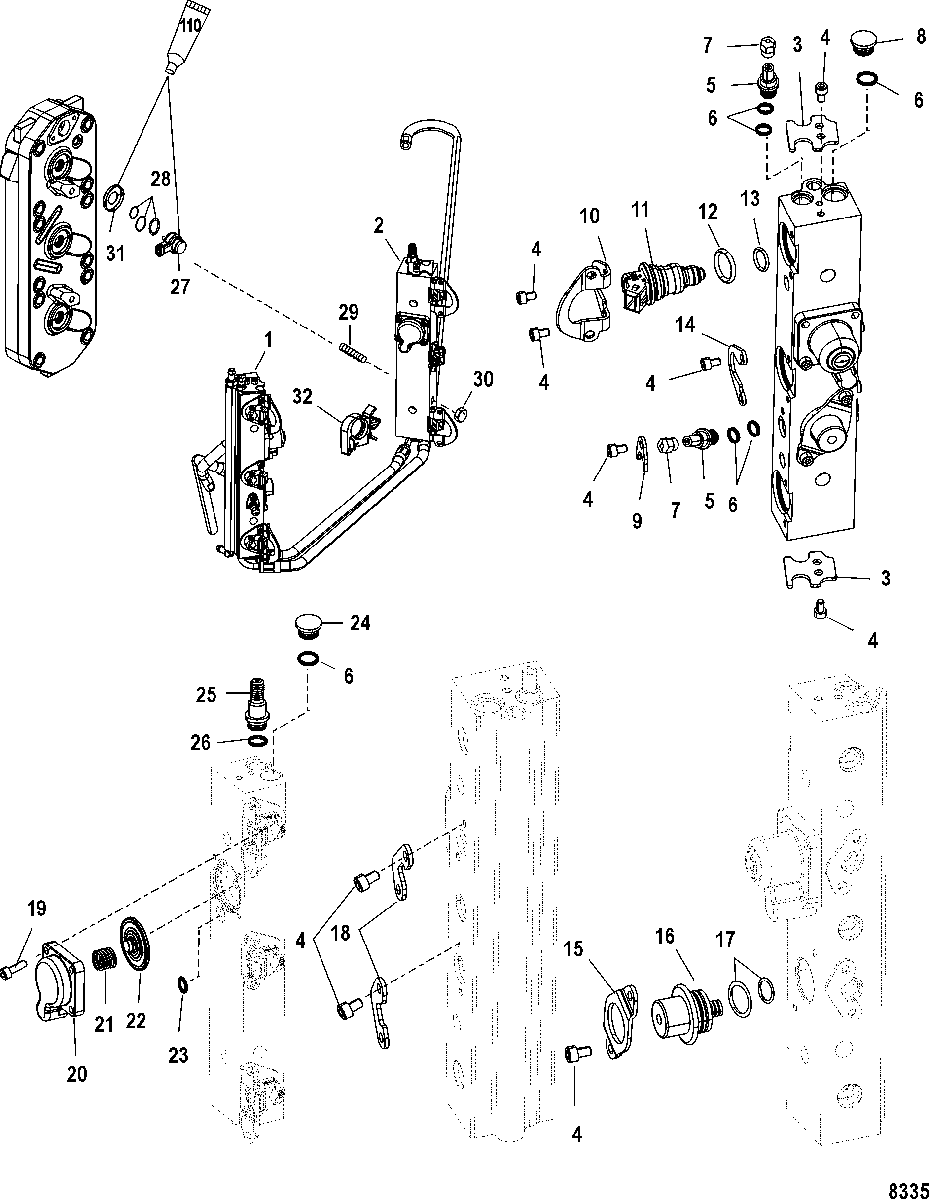

Fuel Rails для Mercury - 150 Pro XS (2.5L) 1B690542 & Up
-
№АртикулНазвание
-
-8M0135407 FUEL RAIL ASSEMBLY, CompleteFUEL RAIL ASSEMBLY, Complete
-
1NSS NOT SOLD SEPARATE, Fuel Rail (Port)NOT SOLD SEPARATE, Fuel Rail (Port)
-
2NSS NOT SOLD SEPARATE, Fuel Rail (Starboard)NOT SOLD SEPARATE, Fuel Rail (Starboard)
-
354-804830 CLAMPCLAMP
-
410-8M0041100 SCREW PACKAGE, (2 Per)(M5 x 10)SCREW PACKAGE, (2 Per)(M5 x 10)
-
58M0047053 VALVE ASSEMBLY, (.375 Inch Diameter)VALVE ASSEMBLY, (.375 Inch Diameter)
-
625-804840 O-RING KITO-RING KIT
-
719-8M0046566 CAP, Shrader Valve - BrassCAP, Shrader Valve - Brass
-
819-804835 PLUG (Port)PLUG (Port)
-
98M0041097 CLAMPCLAMP
-
1054-8048311 CLAMPCLAMP
-
11804528 INJECTORINJECTOR
-
1225-804530 O-RING KITO-RING KIT
-
1325-804529 O-RING KITO-RING KIT
-
14804522 CLAMPCLAMP
-
1554-880808 CLAMPCLAMP
-
16880807T04 REGULATOR, AirREGULATOR, Air
-
1725-880809 O-RING KITO-RING KIT
-
1854-804832 CLAMPCLAMP
-
19804526 SCREW PACKAGE, (M5 x 16) (2 Per)SCREW PACKAGE, (M5 x 16) (2 Per)
-
20804535001 COVERCOVER
-
2124-804534 SPRINGSPRING
-
22804533 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
2325-804536 O-RINGO-RING
-
2419-804834 PLUG (Starboard)PLUG (Starboard)
-
2522-804836 FITTINGFITTING
-
26804532 O-RING KITO-RING KIT
-
278M6001744 INJECTOR ASSEMBLY, AirINJECTOR ASSEMBLY, Air
-
2826-804875 SEAL KIT, Direct InjectorSEAL KIT, Direct Injector
-
2916-8M0063255 STUD, (M10 x 91)STUD, (M10 x 91)
-
3011-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
3112-859404002 WASHER, InjectionWASHER, Injection
-
3254-899145 CLIP, Tie StrapCLIP, Tie Strap
