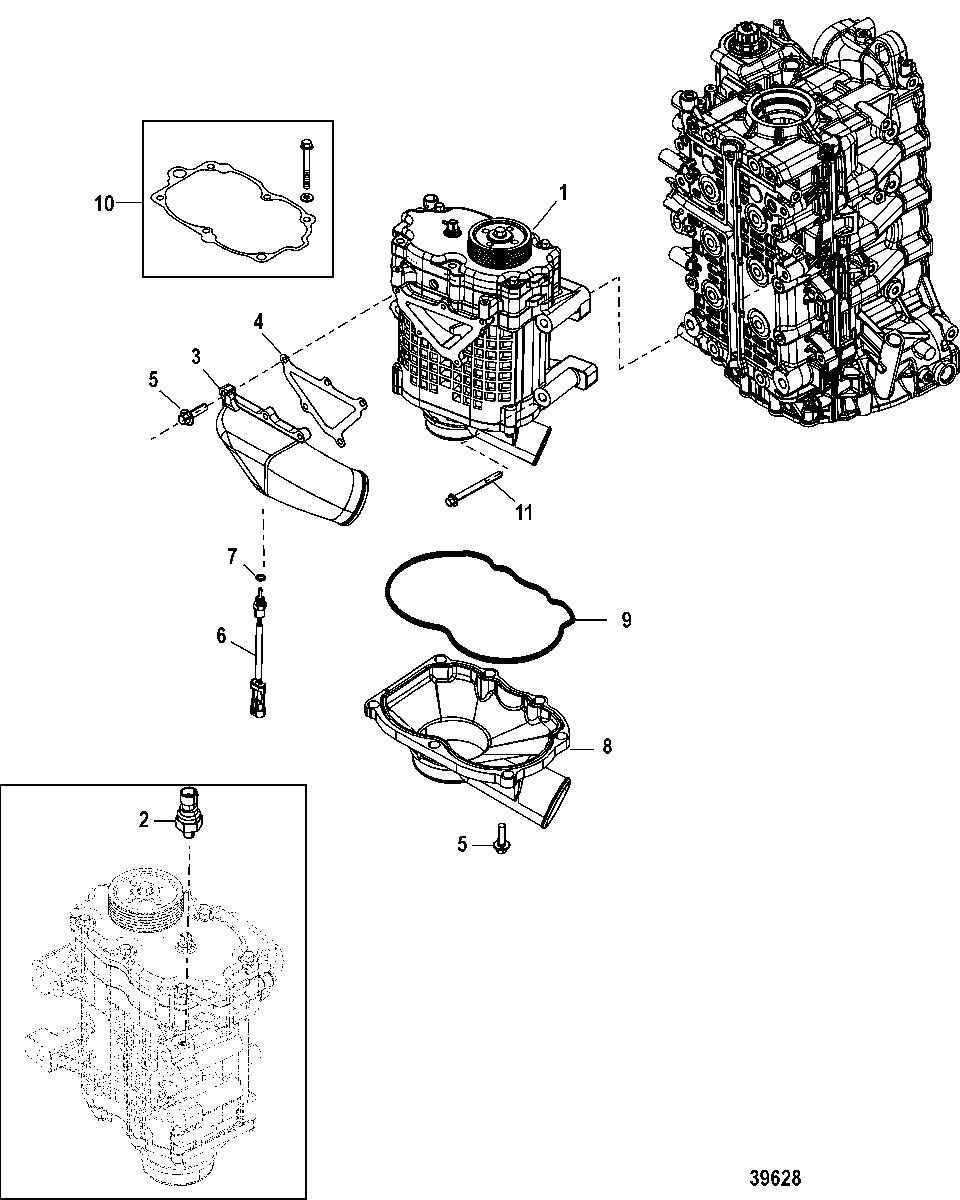

SuperCharger для Mercury - 150 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
18M0104460 SUPERCHARGER
(135)SUPERCHARGER
(135) -
18M0104460 SUPERCHARGER
(150)SUPERCHARGER
(150) -
18M0104460 SUPER CHARGER
(175)SUPER CHARGER
(175) -
28M6000634 SENSOR, Oil PressureSENSOR, Oil Pressure
-
38M0103744 OUTLET DUCT KITOUTLET DUCT KIT
-
427-888947504 GASKETGASKET
-
510-888947502 BOLTBOLT
-
6885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
725-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
8888947A05 DUCT KIT, InletDUCT KIT, Inlet
-
927-888947501 SEALSEAL
-
1023-847803A02 BUSHING/GASKET KITBUSHING/GASKET KIT
-
-8M0045222 END CAP KIT, SuperchargerEND CAP KIT, Supercharger
-
1110-8M0103820 SCREW, (M10 x 105)SCREW, (M10 x 105)
