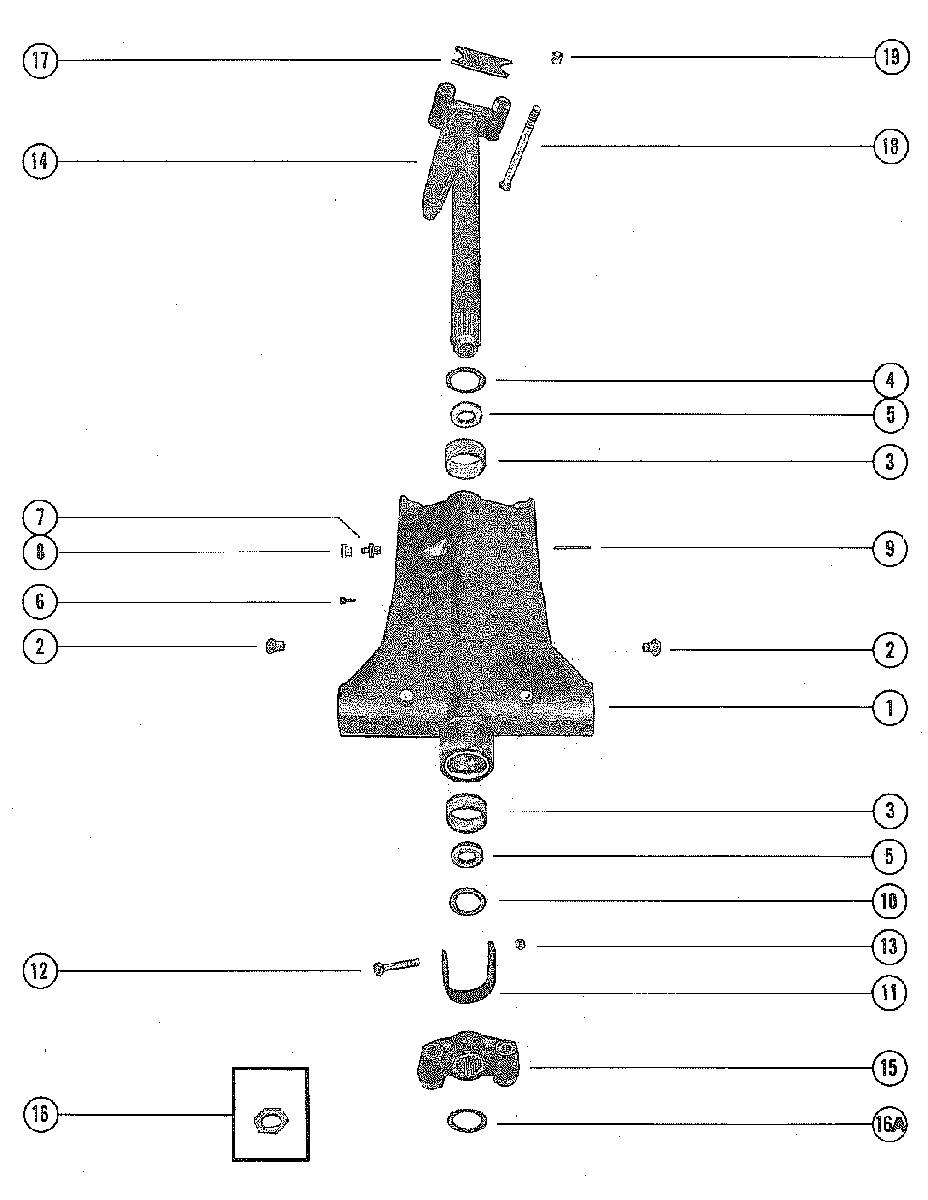

SWIVEL BRACKET ASSEMBLY для Mercury - 1500 7010533 THRU 7112772

  • №
    Артикул
    Название
  • 1
    1490-7256A2 SWIVEL BRACKKET ASSEMBLY (SHOR SHAFT)
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    SWIVEL BRACKKET ASSEMBLY (SHOR SHAFT)
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    0 ₽
  • 1
    1482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    0 ₽
  • 1
    1490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    0 ₽
  • 1
    1482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    0 ₽
  • 1
    1482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 2
    23-69132 BUSHING, REVERSE LOCK PIVOT SHAFT
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    BUSHING, REVERSE LOCK PIVOT SHAFT
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    0 ₽
  • 3
    23-69341 BUSHING, SWIVEL BRACKET
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    BUSHING, SWIVEL BRACKET
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    2 250 ₽
  • 4
    12-69342 WASHER, SWIVEL PIN - UPPER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    WASHER, SWIVEL PIN - UPPER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    0 ₽
  • 5
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
    1 330 ₽
  • 6
    10-47828 SCREW, DRIVE - SWIVEL BRACKET
    SCREW, DRIVE - SWIVEL BRACKET
    0 ₽
  • 7
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    720 ₽
  • 8
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
    UNITED STATES 4319879 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067247 AND BELOW
    450 ₽
  • 7
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4319880 THRU 4602011
    CANADA 7067248 THRU 7093097
    340 ₽
  • 7
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    340 ₽
  • 9
    17-25598 PIN, RAVERSE LOCK SPRING (NOT USED WITH FULL POWER TRIM)
    PIN, RAVERSE LOCK SPRING (NOT USED WITH FULL POWER TRIM)
    0 ₽
  • 10
    12-37429 WASHER, SWIVEL PIN - LOWER
    WASHER, SWIVEL PIN - LOWER
    6 550 ₽
  • 11
    28205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    0 ₽
  • 12
    10-56743 SCREW, STOP TO DRIVE SHAFT HSG. (3 1/8") - SHORT SHAFT
    SCREW, STOP TO DRIVE SHAFT HSG. (3 1/8") - SHORT SHAFT
    560 ₽
  • 12
    10-28200 SCREW, STOP TO DRIVE SHAFT HSG. (2 7/8") - LONG SHAFT
    SCREW, STOP TO DRIVE SHAFT HSG. (2 7/8") - LONG SHAFT
    0 ₽
  • 13
    11-25269 NUT, STOP FASTENING SCREW
    NUT, STOP FASTENING SCREW
    170 ₽
  • 14
    17-49841A1 SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT) - YOKE IS ATTACHED
    YOKE IS ATTACHED WITH A NUT
    SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT) - YOKE IS ATTACHED
    YOKE IS ATTACHED WITH A NUT
    0 ₽
  • 14
    17-49840A1 SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT)
    YOKE IS ATTACHED WITH A NUT
    SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT)
    YOKE IS ATTACHED WITH A NUT
    0 ₽
  • 15
    73984T YOKE, BOTOM
    YOKE IS ATTACHED WITH A NUT
    YOKE, BOTOM
    YOKE IS ATTACHED WITH A NUT
    0 ₽
  • 16
    11-37424 NUT, BOTTOM YOKE ATTACHING
    YOKE IS ATTACHED WITH A NUT
    NUT, BOTTOM YOKE ATTACHING
    YOKE IS ATTACHED WITH A NUT
    0 ₽
  • 14
    17-73594A2 SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT)
    YOKE IS ATTACHED WITH A RETAINING RING
    SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT)
    YOKE IS ATTACHED WITH A RETAINING RING
    0 ₽
  • 14
    17-73593A2 SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT)
    YOKE IS ATTACHED WITH A RETAINING RING
    SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT)
    YOKE IS ATTACHED WITH A RETAINING RING
    0 ₽
  • 15
    73984T YOKE, BOTTOM
    YOKE IS ATTACHED WITH A RETAINING RING
    YOKE, BOTTOM
    YOKE IS ATTACHED WITH A RETAINING RING
    0 ₽
  • 16A
    53-73591 RETAINING RING, BOTTOM YOKE ATTACHING
    YOKE IS ATTACHED WITH A RETAINING RING
    RETAINING RING, BOTTOM YOKE ATTACHING
    YOKE IS ATTACHED WITH A RETAINING RING
    200 ₽
  • 17
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
    0 ₽
  • 18
    10-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
    BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
    0 ₽
  • 19
    11-34933 NUT, STEERTING ARM BOLT FASTENING
    NUT, STEERTING ARM BOLT FASTENING
    440 ₽
